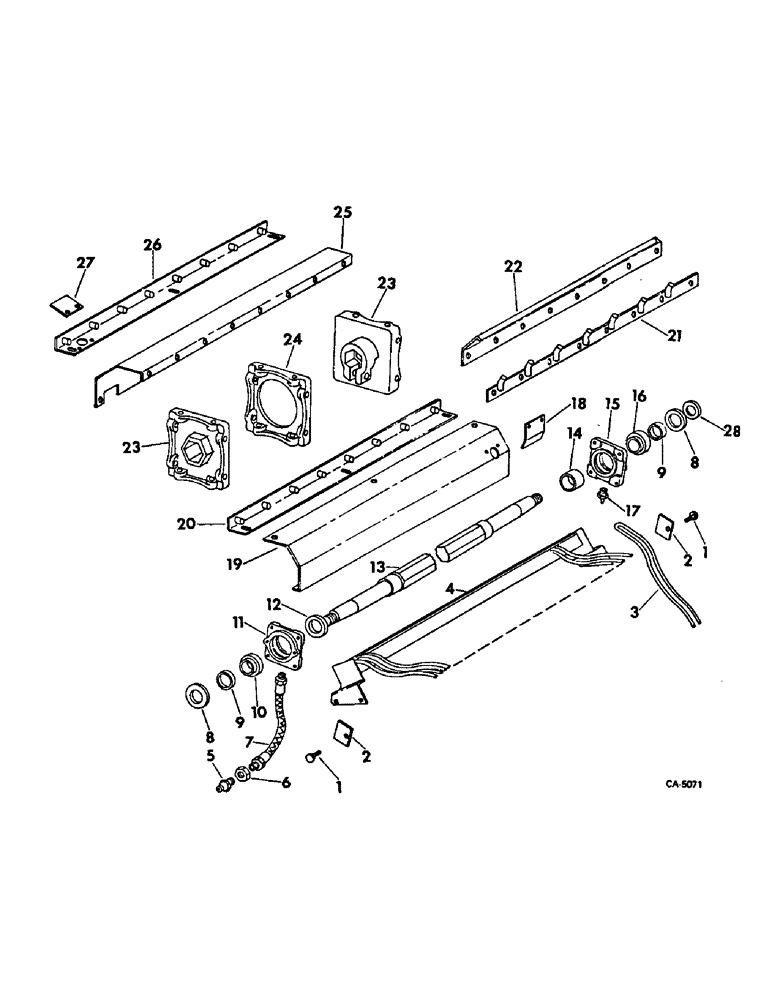

Запчасти Case IH 715 (21-17) - THRESHING CYLINDER AND CONCAVE, CYLINDER BEATER, OPTIONAL OR EDIBLE BEAN (14) - THRESHING

1

152257C2

BOLT, cylinder beater finger grate mounting

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

2

568276R1

SEAL, grate adjust slot

2шт.

3

170983C1

FINGER

beater grate

16шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2 sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

4

170980C1

GRATE ASSY, finger

1шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

1шт.

5

219-31

LUBE NIPPLE,30 Degree Elbow, 1/8" - 27 NPTF

FITTING, 1/8-27 PTF 30 deg angle lub

1шт.

6

581873R1

TUBE NUT,4.8 mm Length

1/8-27 hose

1шт.

7

171970R1

HOSE, bearing lub LH

1шт.

8

939627R91

SEAL

SEAL, shaft bearing

2шт.

9

618032R11

COLLAR

W/SET SCREW, shaft

2шт.

10

632036R91

BALL BEARING,1.938" ID x 90 mm OD x 1.9375"

shaft

1шт.

11

939625R11

CAGE

HOUSING W/BEARING AND SEAL, shaft LH, incl ref. nos. 8 and 10

1шт.

12

629712R1

SPACER

shaft inner LH

1шт.

13

171235C21

SHAFT

W/NUTS

1шт.

20290R1

LOCK NUT,1"-14, G5

NUT, 1-14 hex. nylon insert lock

1шт.

936727R1

WASHER,26.16mm ID x 56.9mm OD x 6.35mm Thk

1-1/32 x 2-1/4 x 1/4

1шт.

23040R1

WASHER

1-21/32 x 2-1/4 x 11 ga

1шт.

20644R1

WASHER

1-21/32 x 2-1/4 x 16 ga

1шт.

583200R1

WASHER, 1-31/32 x 3 x 11 ga

1шт.

PO27915

WASHER, 2-13/32 x 2-13/16 x 18 ga

1шт.

14

25046R1

SPACER

shaft inner RH

1шт.

15

171234C11

HOUSING

W/BEARING AND SEAL, shaft RH

1шт.

16

939626R91

BEARING

shaft

1шт.

17

17295R91

LUBE NIPPLE,90 Degree, 1/4" NPT x 1" lg

FITTING, 1/4-18 PTF 67-1/2 deg angle

1шт.

18

196015C1

COVER

1шт.

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

1/4-20 x 1/2 hex-hd

1шт.

19

196019C1

SECTION, cover outer

1шт.

204060C1

BOLT,Hex Serr Flg, 1/2" - 13 x 1 1/4"

SCREW, 1/2 x 1-1/4 hex-hd

1шт.

20

196017C1

SECTION ASSY, inner

3шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 flange lock

1шт.

21

196022C1

BAR ASSY, finger beater LH, for edible bean

2шт.

21

196023C1

BAR ASSY, finger beater RH, for edible bean

2шт.

22

196025C1

SUPPORT

BLADE, not edible bean

4шт.

23

174768C1

HUB, end

2шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

SCREW, 1/2 x 2-1/2 hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

24

174770C1

HUB, center

1шт.

25

196016C1

SECTION, outer

3шт.

204060C1

BOLT,Hex Serr Flg, 1/2" - 13 x 1 1/4"

SCREW, 1/2 x 1-1/4 hex-hd

1шт.

26

196020C1

SECTION ASSY, inner

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 flange lock

1шт.

27

196014C1

COVER

1шт.

172427

SHIELD

1/4-20 x 1/2 hex-hd

1шт.

28

631406R1

SPACER

shaft RH

1шт.
