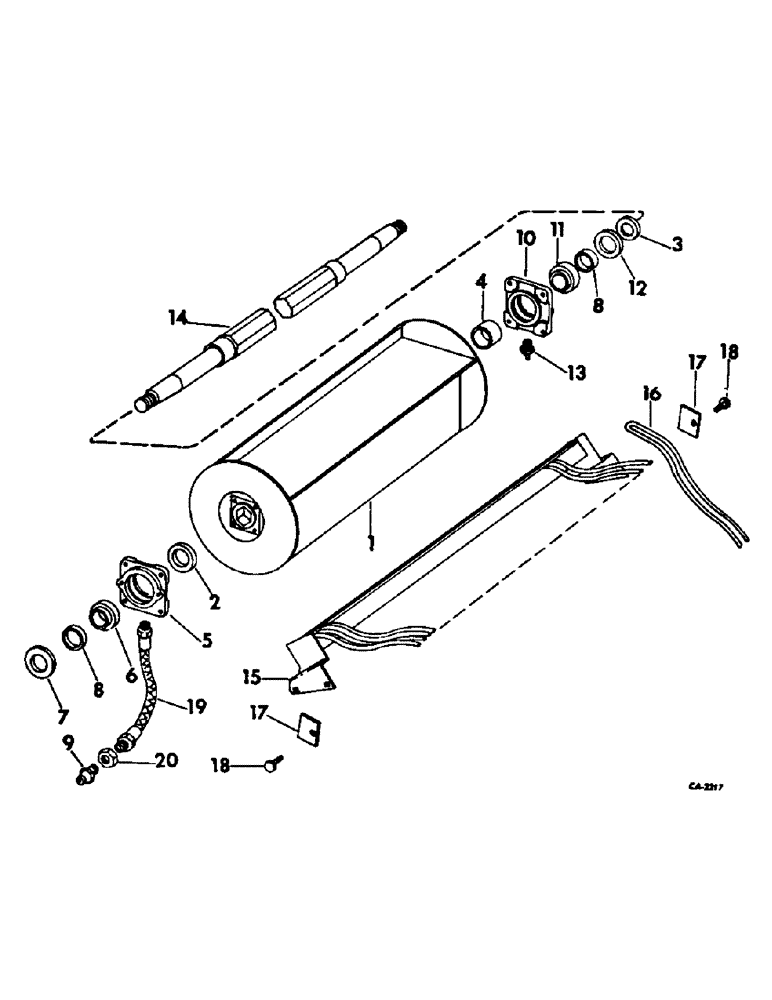

Запчасти Case IH 715 (21-16) - THRESHING CYLINDER AND CONCAVE, CYLINDER BEATER, STANDARD (14) - THRESHING

1

170696C1

BEATER

ASSY, cyl

1шт.

2

629712R1

SPACER

cyl beater shaft inner LH

1шт.

3

631406R1

SPACER

cyl beater shaft RH

1шт.

4

25046R1

SPACER

cyl beater shaft inner RH

1шт.

5

939625R11

CAGE

HOUSING W/BRG & SEAL, beater shaft LH, includes ref. nos. 6 and 7

1шт.

6

632036R91

BALL BEARING,1.938" ID x 90 mm OD x 1.9375"

cylinder beater shaft

1шт.

7

939627R91

SEAL

SEAL, cyl beater shaft brg

1шт.

8

618032R11

COLLAR

W/SET SCREW, cyl beater shaft

2шт.

125843

SET SCREW,Hex Skt, 3/8"-16 x 3/8"

SCREW, 3/8-16 x 3/8 hex-soc-hd cup-pt set

2шт.

9

219-31

LUBE NIPPLE,30 Degree Elbow, 1/8" - 27 NPTF

FITTING, 1/8-27 PTF 30 deg angle lub

1шт.

10

171234C11

HOUSING

W/BRG & SEAL, beater shaft RH, includes ref. nos. 11 and 12

1шт.

11

939626R91

BEARING

cyl beater shaft

1шт.

12

939627R91

SEAL

SEAL, cyl beater shaft brg

1шт.

13

17295R91

LUBE NIPPLE,90 Degree, 1/4" NPT x 1" lg

FITTING, 1/4-18 PTF 67-1/2 deg angle

1шт.

14

171235C21

SHAFT

W/NUTS, cylinder beater

1шт.

20290R1

LOCK NUT,1"-14, G5

NUT, 1-14 hex. nylon insert lock

2шт.

936727R1

WASHER,26.16mm ID x 56.9mm OD x 6.35mm Thk

1-1/32 x 2-1/4 x 1/4

2шт.

23040R1

WASHER

1-21/32 x 2-1/4 x 11 ga

2шт.

20644R1

WASHER

1-21/32 x 2-1/4 x 16 ga

2шт.

583200R1

WASHER, 1-32/32 x 3 x 11 ga

1шт.

PO27915

WASHER, 2-13/32 x 2-13/16 x 18 ga

8шт.

15

170980C1

GRATE ASSY, cyl beater finger

1шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga

2шт.

16

170983C1

FINGER

beater grate

16шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2 C-Z sq-nk crg

16шт.

120377

NUT,3/8" - 16, Gr 5

16шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

16шт.

17

568276R1

SEAL, cyl beater grate adj slot

2шт.

18

152257C2

BOLT, cylinder beater finger grate mounting

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

19

171970R1

HOSE, LH cylinder beater bearing lub, belt drive feeder

1шт.

20

581873R1

TUBE NUT,4.8 mm Length

1/8-27 HOSE, belt drive feeder

1шт.
