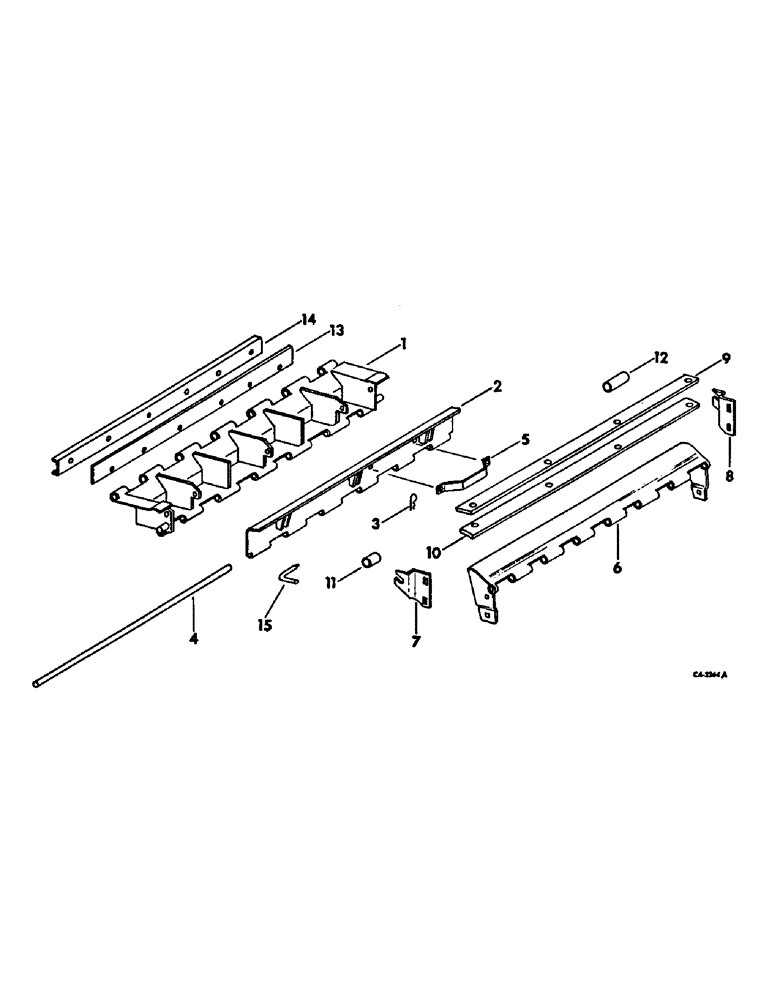

Запчасти Case IH 715 (21-15) - THRESHING CYLINDER AND CONCAVE, STONE RETARDER (14) - THRESHING

1

171289C2

TROUGH ASSY, stone retarder, serial no. 3250 and below

1шт.

1

174589C1

TROUGH

ASSY, stone retarder, serial no. 3251 and above

1шт.

2

171296C1

DOOR ASSY, stone retarder, serial no. 3250 and below

1шт.

2

174585C1

DOOR

ASSY, stone retarder, serial no. 3251 and above

1шт.

23067R1

PIN, 5/16 x 7/8 C-Z std-hd

3шт.

3

585614R1

PIN

retaining

3шт.

4

171299C1

ROD

stone retarder door hinge

1шт.

5

166351C1

HANDLE, stone retarder door

1шт.

12653R1

BOLT (SPREADER),Short NK, 1/4"-20 x 3/4", G2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 3/4", G2

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

6

171330C1

SUPPORT ASSY, feed plate, serial no. 8000 and below

1шт.

6

177398C1

HINGE

ASSY, feeder bottom door, serial no. 8001 and above

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 sq-nk crg

3шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2 sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

20803R1

WASHER

13/32 x 1 x 11 ga

2шт.

7

171334C1

BRACKET

retarder pivot LH

1шт.

8

171335C1

BRACKET

retarder pivot RH

1шт.

9

171336C1

SEAL

feeder, serial no. 3250 and below

1шт.

10

171337C1

REINFORCEMENT, feeder seal, serial no. 3250 and below

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

4шт.

11

M76001

SPACER,1/4" Pipe x 2 1/4"

1/4 x 2-1/4 std-pipe, stone retarder door outer serial no. 3250 and below

2шт.

12

2333F

SPACER, 1/4 x 2-3/4 std-pipe, stone retarder door inner serial no. 3250 and below

5шт.

13

172759C1

SEAL

stone retarder

1шт.

14

172762C1

REINFORCEMENT

stone retarder seal

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

6шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

4шт.

15

174601C1

PIN

retaining

3шт.
