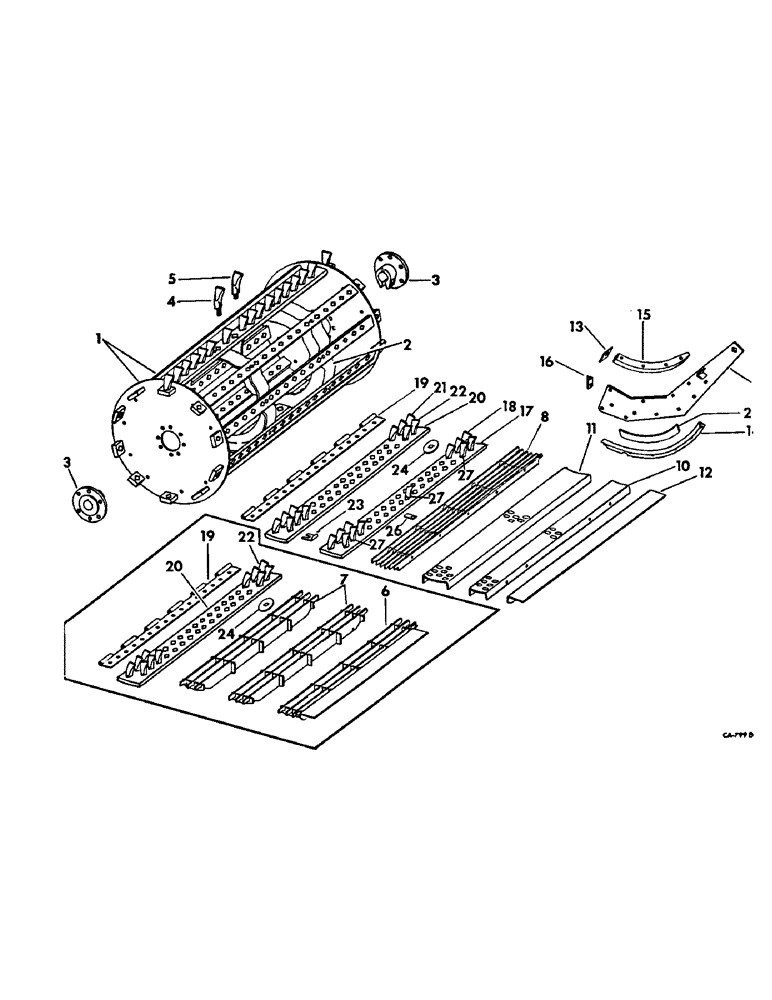

Запчасти Case IH 715 (21-07) - THRESHING CYLINDER AND CONCAVE, CYLINDER, SPIKE TOOTH (14) - THRESHING

1

172227C92

CYLINDER ASSY, less shaft, includes ref nos 2, 3, 4 and 5

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach, for balance

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd hex-hd mach, for balance

1шт.

18780R1

BOLT,Hex, 3/8"-16 x 1 3/4", G2

3/8 x 1-3/4 znd hex-hd mach, for balance

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga

1шт.

2

567891R1

HEAD, cyl center

2шт.

104118

RIVET, 3/8 x 1-5/8 rd-hd

20шт.

3

172123C1

HUB, cyl

2шт.

21330R1

NUT,1/2"-13, G8

1/2 hex. type 8

1шт.

104116

RIVET, 3/8 x 1-3/8 8-hd

1шт.

20100R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 8

SCREW, 1/2 x 2-3/4 hex-hd type 8

1шт.

366864C1

LOCK WASHER,1/2"

1/2"

1шт.

25710R1

WASHER

.53 x 1.06 x .13 hard

1шт.

4

155992C2

TOOTH

cylinder middle

20шт.

NLS

NO LONGER SERVICED

9/16 hex.

20шт.

120898

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

20шт.

5

155993C2

TOOTH

cylinder

160шт.

102638

9/16 hex.

160шт.

120898

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

160шт.

6

574461R91

CONCAVE ASSY, bar rear, rice, grain serial no. 19001 and above

1шт.

7

574437R91

CONCAVE ASSY, bar front, rice, grain serial no. 19001 and above

2шт.

8

570567R91

GRATE ASSY, concave, grain serial no. 19000 and below

2шт.

9

567901R11

SUPPORT ASSY, concave LH

1шт.

9

567902R11

SUPPORT ASSY, concave RH

1шт.

19019R1

CARRIAGE BOLT,#3, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z no 3 plow

20шт.

634122R1

BOLT,5/8"-11 x 2", G8, Full Thd

5/8 x 2 no 3 type 4 plow

2шт.

441452R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

BOLT, 5/8 x 2 sq-nk crg type 5

2шт.

633661R1

CARRIAGE BOLT,#3, 5/8" - 11 x 3"

BOLT, 5/8 x 3 no 3 type 4 plow

2шт.

120377

NUT,3/8" - 16, Gr 5

20шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 C-Z hex.

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

20шт.

20511R1

WASHER, 5/8 C-Z med lock

6шт.

21796R1

WASHER

21/32 x 1 x 16 ga

2шт.

10

570566R1

GRATE, concave rear, grain serial no. 19000 and below

1шт.

11

570565R1

GRATE, concave, grain serial no. 19000 and below

2шт.

12

570568R1

EXTENSION, concave rear, grain serial no. 19000 and below

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 znd hex-hd mach

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

13

567908R1

BAR

CLIP, concave locking

2шт.

14

568137R1

RETAINER, concave lower LH

1шт.

14

568138R1

RETAINER, concave lower RH

1шт.

15

568135R1

SUPPORT

RETAINER, upper LH

1шт.

15

568136R1

SUPPORT

RETAINER, upper RH

1шт.

124824

NUT,Hex, 5/16" - 18

5/16 C-Z hex jam

2шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

SCREW, 5/16 x 7/8 C-Z hex-hd cap

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

16

568139R1

ANGLE

DEFLECTOR, concave LH

4шт.

16

568140R1

ANGLE

DEFLECTOR, concave RH

4шт.

17

155985C1

CONCAVE, rear, grain

1шт.

18

155993C2

TOOTH

concave rear, grain, 35 used for serial no. 19000 and below, 32 used for serial no. 19001 and above

1шт.

124583

BRAKE SHOE

NUT, 9/16 hex.

1шт.

120898

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

19

172556C1

HINGE, concave front extension

1шт.

20

155985C1

CONCAVE, front

1шт.

21

155992C2

TOOTH

concave front, long, 19 used grain, 16 used rice

1шт.

124583

BRAKE SHOE

NUT, 9/16 hex.

1шт.

120898

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

22

155993C2

TOOTH

concave front, short, 16 used grain, 19 used rice

1шт.

124583

BRAKE SHOE

NUT, 9/16 hex.

1шт.

120898

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

23

155984C1

SPACER, front concave, grain serial no 19000 and below

3шт.

24

936476R1

SQ HOLE WASHER

concave tooth, 54 used grain, 19 used rice

1шт.

25

587764R1

SHIM

concave adjusting

8шт.

26

155992C2

TOOTH

concave rear, short, grain serial no. 19001 and above

3шт.

124583

BRAKE SHOE

NUT, 9/16 hex.

1шт.

120898

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

27

469808R1

BAR, concave rear spacer, grain serial no. 19001 and above

3шт.
