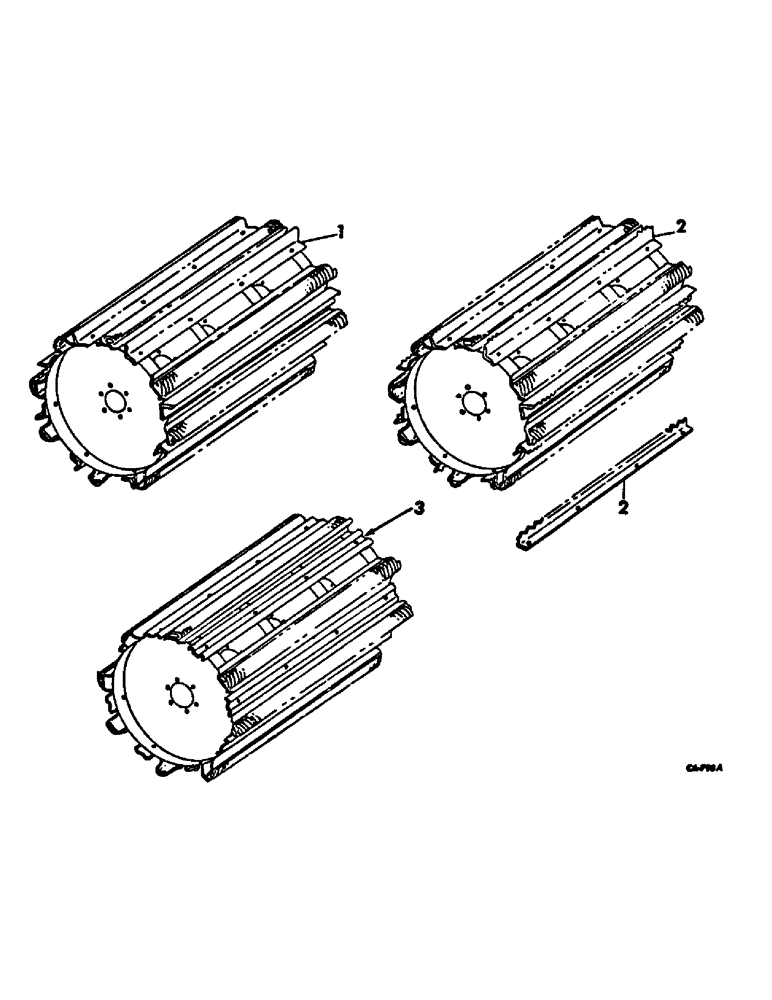

Запчасти Case IH 715 (21-06) - THRESHING CYLINDER AND CONCAVE, SPECIAL CYLINDER BARS, FOR USE W/ BAR AND WIRE CONCAVE (14) - THRESHING

173021C91

BAR ASSY.

PARTS ACCESSORY, notched cylinder bars, consists of ref no, 2

1шт.

173022C91

PARTS ACCESSORY, smooth angle cylinder bars, consists of ref no. 1

1шт.

1

633612R91

BAR ASSY, smooth angle cyl

2шт.

120369

NUT,3/8"-24, G5

8шт.

181637

SCREW, 3/8-24 x 1 znd hex-hd cap

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

2

633616R1

BAR

notched cyl

2шт.

120369

NUT,3/8"-24, G5

8шт.

NLS

NO LONGER SERVICED

SCREW, 3/8-24 x 1 znd hex-hd cap

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

3

633611R1

BAR

cylinder filler, serial no. 8001 and above

8шт.

120369

NUT,3/8"-24, G5

24шт.

181637

SCREW, 3/8-24 x 1 hex-hd cap

32шт.

366862R1

WASHER, 3/8 ribbed lock

32шт.
