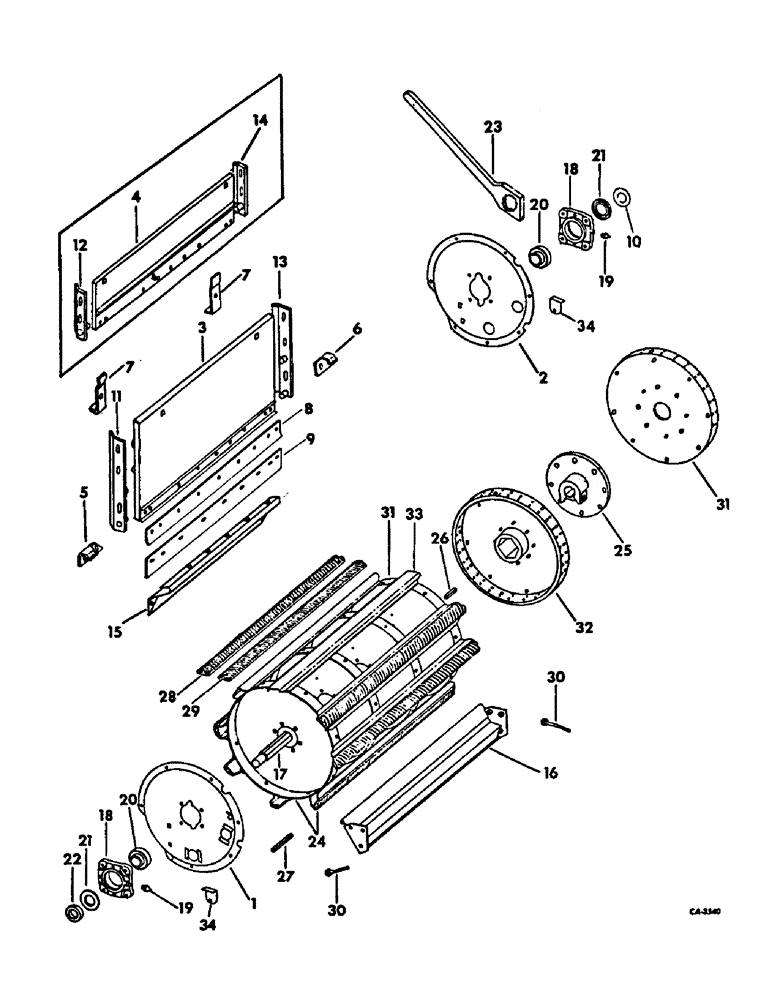

Запчасти Case IH 715 (21-04) - THRESHING CYLINDER AND CONCAVE, CYLINDER, RASP BAR, SERIAL NO. 8001 AND ABOVE (14) - THRESHING

1

633513R91

DOOR ASSY, cylinder left

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

2

633514R91

DOOR ASSY, cylinder right

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

3

177414C1

DOOR ASSY, cylinder front, not windrow special

1шт.

16888R1

HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2

BOLT, 5/16 x 1-1/4 hex-hd

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 slt-pan-hd

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

134238R1

WASHER

11/32 x 1 x 16 ga

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga

1шт.

4

634549R91

DOOR ASSY, cylinder front, windrow special

1шт.

16888R1

HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2

BOLT, 5/16 x 1-1/4 hex-hd

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 slt-pan-hd

1шт.

451195

SCREW,Slotted Pan Hd, 1/4"-20 x 1"

1/4 x 1 slt-pan-hd

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

134238R1

WASHER

11/32 x 1 x 16 ga

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga

1шт.

5

569623R1

CLAMP

CLIP, cyl front door support left

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

451195

SCREW,Slotted Pan Hd, 1/4"-20 x 1"

1/4 x 1 C-Z slt pan-hd mach

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

21784R1

WASHER

17/64 x 1/2 x 16 ga C-Z

2шт.

6

569624R1

CLAMP

CLIP, cyl front door support right

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

451195

SCREW,Slotted Pan Hd, 1/4"-20 x 1"

1/4 x 1 C-Z slt pan-hd mach

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

21784R1

WASHER

17/64 x 1/2 x 16 ga C-Z

2шт.

7

569362R1

HANDLE, cyl front door

2шт.

8

177417C1

BACKING, cylinder front door seal, not windrow special

1шт.

9

177418C1

DOOR SEAL

cylinder front door, not windrow special

1шт.

10

629713R1

SPACER

RING, cylinder shaft bearing RH

1шт.

11

177419C1

RETAINER

ASSY, cyl front door left, not windrow special

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga

3шт.

12

634553R91

RETAINER ASSY, cyl front door left, windrow special

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 hex-hd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga

1шт.

13

177420C1

RETAINER

ASSY, cyl front right, not windrow special

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

3шт.

14

634554R91

RETAINER ASSY, cyl front door right, windrow special

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

15

935696R91

DEFLECTOR ASSY, cyl cover dust

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

16

163620C91

STRIPPER ASSY, cyl

1шт.

454998

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1/2 x 1 hex-hd

1шт.

427566

BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd

SCREW, 1/2 x 1-1/2 hex-hd

1шт.

366864C1

LOCK WASHER,1/2"

1/2"

1шт.

607895R1

WASHER

.53 x 1 x .12

1шт.

17

172128C11

SHAFT ASSY.

SHAFT W/NUT, cyl

1шт.

19392R1

LOCK NUT,1 1/8"-12, G5

NUT, 1-1/8 zn nylon insert

1шт.

21907R1

WASHER, 1-23/32 x 2-1/2 x 18 ga

5шт.

227271R1

WASHER

cylinder shaft

1шт.

18

939623R11

HOUSING

ASSY, cylinder shaft bearing, includes ref. nos. 20 and 21

2шт.

19

16964R91

FITTING

1/4-28 NF 90 deg lub

1шт.

20

939621R91

BEARING

cylinder shaft ball

2шт.

21

939624R91

SEAL

SEAL, cylinder shaft bearing

2шт.

22

939932R11

COLLAR

LKG ASSY, cyl SH left brg

1шт.

125843

SET SCREW,Hex Skt, 3/8"-16 x 3/8"

SCREW, 3/8-16 x 3/8 hex-soc-hd

1шт.

23

174876C1

TOOL

WRENCH, cylinder rocking

1шт.

24

172121C91

CYLINDER ASSY, less shaft, incl ref. nos. 28, 29, 31 thru 33, grain and windrow special

1шт.

24

172126C91

CYLINDER ASSY, less shaft, rice

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach, for balance

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd hex-hd mach, for balance

1шт.

18780R1

BOLT,Hex, 3/8"-16 x 1 3/4", G2

3/8 x 1-3/4 znd hex-hd mach, for balance

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga

1шт.

25

172123C1

HUB, cyl clamp

2шт.

21330R1

NUT,1/2"-13, G8

1/2 hex. type 8

1шт.

NLS

NO LONGER SERVICED

3/8 x 1 rd-hd

1шт.

20100R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 8

SCREW, 1/2 x 2-3/4 hex-hd type 8

1шт.

366864C1

LOCK WASHER,1/2"

1/2"

1шт.

25710R1

WASHER

.53 x 1.06 x .13 hard

1шт.

26

Q51

KEY,3/8" Sq x 2 1/2", Par

RH 3/8" Sq x 2 1/2", Par

1шт.

27

Q1432

KEY,3/8" Sq x 5", Par

3/8 x 5 sq parallel LH

1шт.

28

633510R1

BAR

cylinder LH, grain and windrow special

4шт.

181655

BOLT,Hex, 7/16" - 20 x 9/16", Gr 5

SCREW, 7/16-20 x 9/16 hex-hd cap

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

29

633511R1

BAT

BAR, cylinder RH, grain and windrow special

4шт.

181655

BOLT,Hex, 7/16" - 20 x 9/16", Gr 5

SCREW, 7/16-20 x 9/16 hex-hd cap

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

30

634125R2

BOLT,3/8" - 16 x 4.62"

EYEBOLT, cyl deflector adj

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

31

172122C91

HEAD ASSY, cyl outer, includes ref no 25

2шт.

32

172124C1

HEAD ASSY, cyl center

2шт.

33

633512R1

SUPPORT

cyl bar

8шт.

104096

RIVET,But Hd, 5/16" x 5/8"

5/16 x 5/8 button-hd

128шт.

34

633518R1

DOOR

concave inspection

4шт.
