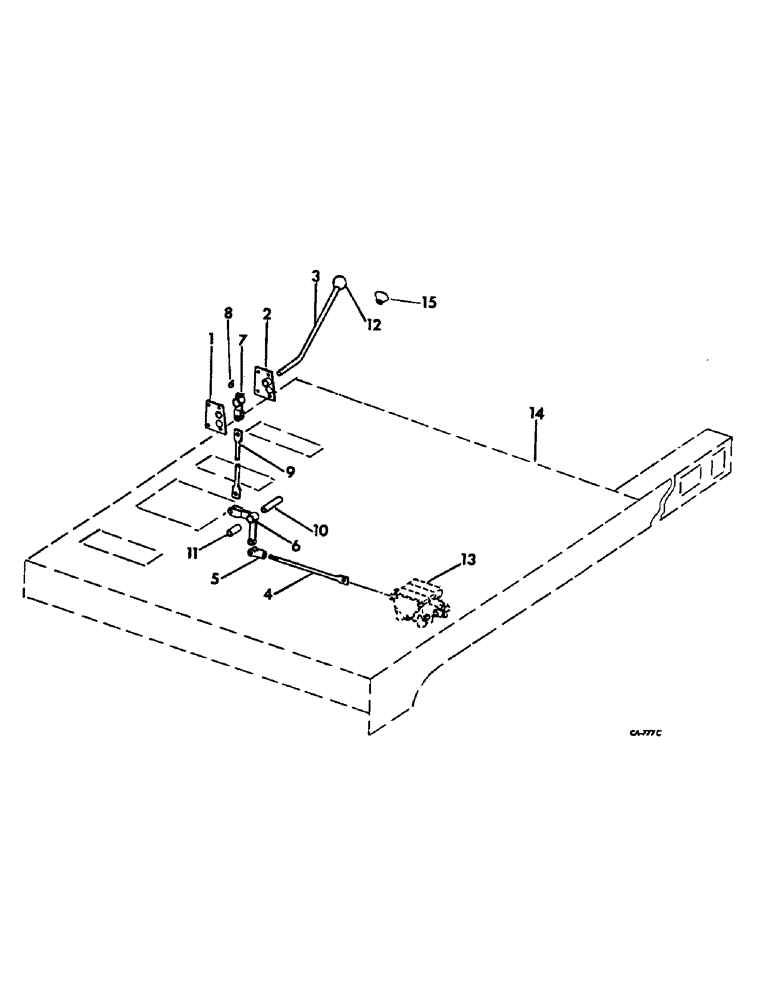

Запчасти Case IH 715 (33-10) - FEEDER, FEEDER LIFT CONTROL (13) - FEEDER

1

627407R91

PLATE ASSY, platform lift control left

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 C-Z hex-hd mach

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

2

627408R91

PLATE ASSY, platform lift control right

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 C-Z hex-hd mach

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

3

939242R1

LEVER, platform lift, belt drive

1шт.

3

151910C2

LEVER, platform lift, hydrostatic drive

1шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

21796R1

WASHER

21/32 x 1 x 16 ga C-Z

3шт.

4

939236R1

ROD, rear

1шт.

5

104039

ADJUSTABLE CLEVIS,1/2"-20 x 3"

CLEVIS, 1/2

1шт.

25-158

JAM NUT,Jam, 1/2"-20, G5

1/2-20 C-Z hex. jam

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

22444R1

CLEVIS PIN,3/8" x 1"

PIN, 3/8 x 1 C-Z rod end

1шт.

6

627414R1

BELLCRANK, lower

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

138078

PIN, 3/8 x 1-3/32 C-Z rod end

1шт.

7

627415R1

ARM, upper

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

138078

PIN, 3/8 x 1-3/32 C-Z rod end

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 C-Z hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

8

28459KA

WASHER

upper arm

1шт.

9

627431R1

ROD, platform lift vertical

1шт.

10

627417R1

BUSHING, lower bellcrank

1шт.

21796R1

WASHER

21/32 x 1 x 16 ga C-Z

3шт.

11

564737R1

SPACER,7/8" Tube x 2 1/16"

lower bellcrank arm

1шт.

12

163574C1

KNOB

platform lift lever, serial no. 8000 and below

1шт.

13

VALVE ASSY, section, refer to group 10 under propulsion or reel lift valve section, automatic header lift valve section and header lift valve section

1шт.

14

PLATFORM ASSY, operators, refer to group 13 under operators platform and ladder

1шт.

15

178601C1

KNOB, header lift lever, serial no. 8001 and above

1шт.
