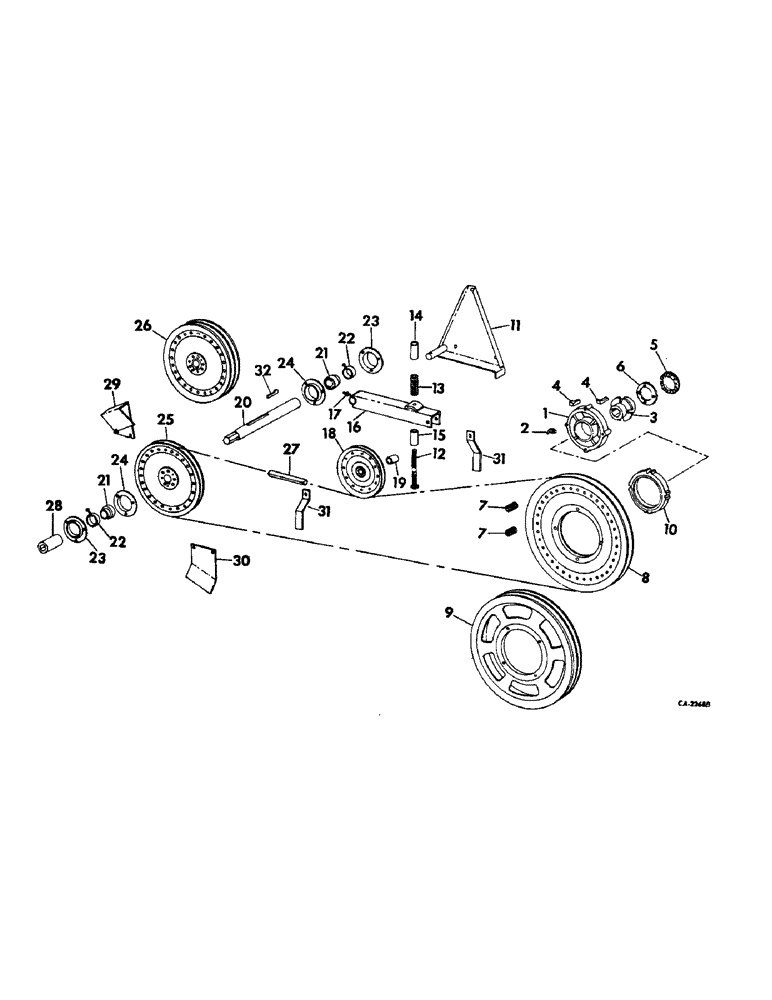

Запчасти Case IH 715 (33-08) - FEEDER, FEEDER JACKSHAFT DRIVE (13) - FEEDER

1

179031C1

HUB

feeder driven pulley, not windrow

1шт.

1

176556C1

HUB

feeder driven pulley, for windrow

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

20903R1

BOLT,Hex, 3/8" - 16 x 5 1/4", Gr 5

SCREW, 3/8 x 5-1/4 znd hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

2

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

NIPPLE, LUBE, 90°, 1/4" NPT x .75" lg, Drive, Not Windrow

1шт.

3

179029C1

HUB CAP

HUB, feed conveyor slip clutch, not windrow

1шт.

4

240

KEY,Gib, 3/8" Sq x 2 1/2"

3/8 x 2-1/2 gib

2шт.

5

179030C1

RATCHET

feeder slip clutch outer, not windrow

1шт.

6

179032C1

RATCHET

feeder slip clutch inner, not windrow

1шт.

27350R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 4 1/2", Gr 5

BOLT, 3/8 x 4-1/2 sq-nk crg type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

614452R1

WASHER

13/32 x 1-1/4 x 11 ga

1шт.

Q3500

WASHER

21/32 x 1-1/8 x 14 ga

1шт.

7

584007R1

SPRING

feed conveyor slip clutch, not windrow

6шт.

8

176564C1

PULLEY

feeder jackshaft drive 16-3/4 in. OD, single belt

1шт.

9

176574C1

PULLEY

feeder jackshaft drive 16-3/4 in. OD, double belt

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

180132

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

SCREW, 3/8 x 2-1/4 hex-hd cap

4шт.

433115

BOLT,Hex, 3/8" - 16 x 4 1/4", Gr 5

SCREW, 3/8 x 4-1/4 hex-hd cap

4шт.

20903R1

BOLT,Hex, 3/8" - 16 x 5 1/4", Gr 5

SCREW, 3/8 x 5-1/4 hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

10

176555C1

SPACER

feeder driven pulley hub, not windrow special

1шт.

11

176545C1

SUPPORT

ASSY, feeder jackshaft drive tightener pivot

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

3/8 x 1 hex-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

12

176548C1

BOLT,Hex, 1/2" - 13

feeder jackshaft drive tightener adj

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120396

WASHER

.53 x 1.06 x .10 znd

2шт.

21883R1

WASHER

.531 x 1.75 x .09 znd

1шт.

608081R1

WASHER

21.32 x 1-3/4 x 11 ga znd

1шт.

13

523267R1

SPRING

adj bolt, single belt

1шт.

13

PO3A

SPRING

adj bolt, double belt

1шт.

14

176569C1

SPACER

adj bolt spring, single belt

1шт.

14

176580C1

SPACER

adj bolt spring, double belt

1шт.

15

176544C2

SPACER

adjustable bolt spring inner

1шт.

16

176549C1

ARM

ASSY, jksft drive tightener pivot

1шт.

17

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING, 1/4-28 45 deg self tap. lub

1шт.

18

674966R91

PULLEY,203.2mm Idler Dia x 222.25mm OD x 36.51mm W

ASSY, feeder jackshaft drive tightener, single belt

1шт.

18

176579C1

IDLER

ASSY, feeder jackshaft drive tightener, double belt

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 znd hex.

1шт.

21275R1

BOLT,Hex, 5/8" - 11 x 6 1/2", Gr 5

SCREW, 5/8 x 6-1/2 hex-hd cap

1шт.

19824R1

BOLT,Hex, 5/8" - 11 x 7 1/2", Gr 5

SCREW, 5/8 x 7-1/2 hex-hd cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

NLS

NO LONGER SERVICED

.66 x 1.3 x .10 znd

1шт.

19

657114R1

SPACER,3/4" X-Strng Pipe x 2 3/8"

3/4 x 2.375 extra strong pipe, single belt, double belt for serial no. 19001 and above

1шт.

19

76899R1

SPACER, 3/4 x 2.719 extra strong pipe. double belt for serial no. 19000 and below

1шт.

20

176560C1

SHAFT

JACKSHAFT, feeder

1шт.

21

611583R91

BALL BEARING

BEARING, feeder jackshaft

2шт.

22

517645R11

COLLAR

W/SET SCREW, feeder jackshaft

2шт.

23

939462R91

FLANGE

W/LUB FITTING, feeder jackshaft

2шт.

24

473092R1

FLANGED BEARING

feeder jackshaft brg grooved

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

25

176562C1

PULLEY

feeder jackshaft driven, 13-1/2 in. OD, single belt

1шт.

26

176572C1

PULLEY

feeder jackshaft driven, 13-1/2 in. OD, double belt

1шт.

27

176565C1

BELT,0.879" W x 174.99" L

V-BELT , Feeder jackshaft drive, Single belt, Not rice w/34-in. main wheels 0.879" W x 174.99" L

1шт.

27

176577C1

SET OF BELTS

Feeder jackshaft drive, Double belt for rice w/34 in. main wheels

1шт.

27

176566C1

BELT

V-BELT, Feeder jackshaft drive, Double belt

1шт.

28

176537C1

COUPLING, BREAK AWAY

COUPLING, feeder jackshaft drive

1шт.

517843R1

COTTER PIN

PIN, QA cotter

1шт.

23170R1

HEADED PIN,1/2" x 2 3/8"

PIN, 1/2 x 2-3/8 znd std-hd

1шт.

29

177142C1

SHIELD, jackshaft driven pulley

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 znd sq-nk crg

2шт.

935736R1

NUT, WING

NUT, 5/16 C-Z wing

2шт.

30

179433C1

PLATE, jackshaft driven pulley guard

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 C-Z flange lock

2шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znd slt-truss-hd

2шт.

31

197110C1

GUIDE

belt, not for single belt

2шт.

32

Q1401

KEY, 3/8 x 1-3/4 sq tapered, single belt Gib, 3/8" Sq x 1 3/4" Tap

1шт.

32

Q1497

KEY,Gib, 3/8" Sq x 2"

3/8 x 2 gib, double belt

1шт.
