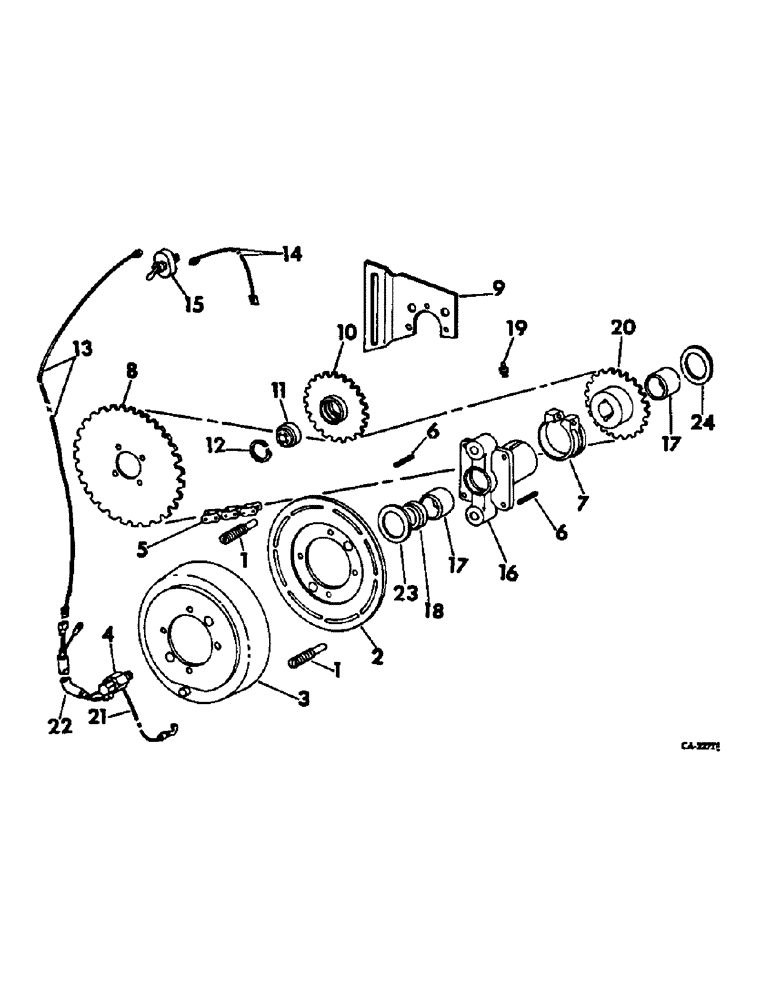

Запчасти Case IH 715 (33-07) - FEEDER, FEEDER DRIVE, CHAIN TYPE (13) - FEEDER

1

160309C1

STUD

feeder drive clutch lockout

2шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4 C-Z hex. jam

2шт.

2

172283C1

ARMATURE

ASSY, electric clutch

1шт.

18497R1

BOLT,Hex, 1/2"-13 x 1 3/4", G2

1/2 x 1-304 hex-hd

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

3

178689C1

MAGNET

electric clutch

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 hex-hd

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

4

179499C91

HOLDER

BRUSH HOLDER ASSY, includes ref. nos. 21 and 22

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

5

CHAIN ASSY, feeder drive, use 99 links from 10 ft foll marked 654437R91, l connecting lingk 654438R91

1шт.

6

586879R1

KEY

5/16 x 2 sq parallel

2шт.

7

170695C1

CLAMP, feeder clutch hub

1шт.

21161R1

BOLT,Hex, 3/8"-16 x 3 3/4", G2

3/8 x 3-3/4 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

8

175972C1

SPROCKET ASSY.

SPROCKET, feeder driven, 32T, not windrow special

1шт.

8

170690C1

SPROCKET, feeder driven, 33 T, for windrow special

1шт.

8

935867R1

SPROCKET, feeder driven, 38 T, slow speed, for edible bean

1шт.

9

170694C1

BRACKET, feeder drive chain tightener

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 znd hex-hd

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

21041R1

WASHER

17/32 x 2 x 16 ga C-Z

1шт.

10

589538R91

SPROCKET ASSY.

SPROCKET ASSY, feeder drive chain tightener 17 T

1шт.

11

58095R91

BEARING, feeder drive tightener

1шт.

22861R1

BOLT, 7/8 x 3 znd sq-nk crg

1шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

1шт.

131047

WASHER,7/8"

7/8"

1шт.

21714R1

WASHER

29/32 x 1-1/2 x 11 ga

4шт.

21214R1

WASHER

1-5/32 x 2 x 11 ga C-Z

1шт.

607890R1

WASHER

1-7/32 x 1-3/4 x 16 ga

1шт.

12

555602R1

RING

tightener sprocket brg snap

1шт.

13

172033C1

CABLE ASSY, feeder clutch

1шт.

14

172034C1

CABLE ASSY, electric clutch switch

1шт.

15

244641R91

SWITCH

ASSY, feeder clutch

1шт.

16

179091C91

HUB ASSY, feeder drive clutch, includes ref nos 17 and 18

1шт.

17

392680R91

NEEDLE BEARING

clutch hub

2шт.

18

158109C91

SEAL

bearing

2шт.

19

128274

LUBE NIPPLE,1/4"-28 NPT x 1.12" lg

FITTING, 1/4-28NF x 1.12 str lub

1шт.

20

170691C1

SPROCKET ASSY.

SPROCKET ASSY, feeder drive, 26 T

1шт.

21

179650C1

ELECTRICAL WIRE

WIRE ASSY W/TERMINAL, brush holder

1шт.

22

179651C1

CABLE

ASSY, brush holder

1шт.

178532

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, 5/16 ext-int-tooth lock

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

23

U14294

WASHER

1-15/16 x 2-7/8 x 16 ga

3шт.

24

24971R1

WASHER, 1.906 x 3.250 x .105

3шт.
