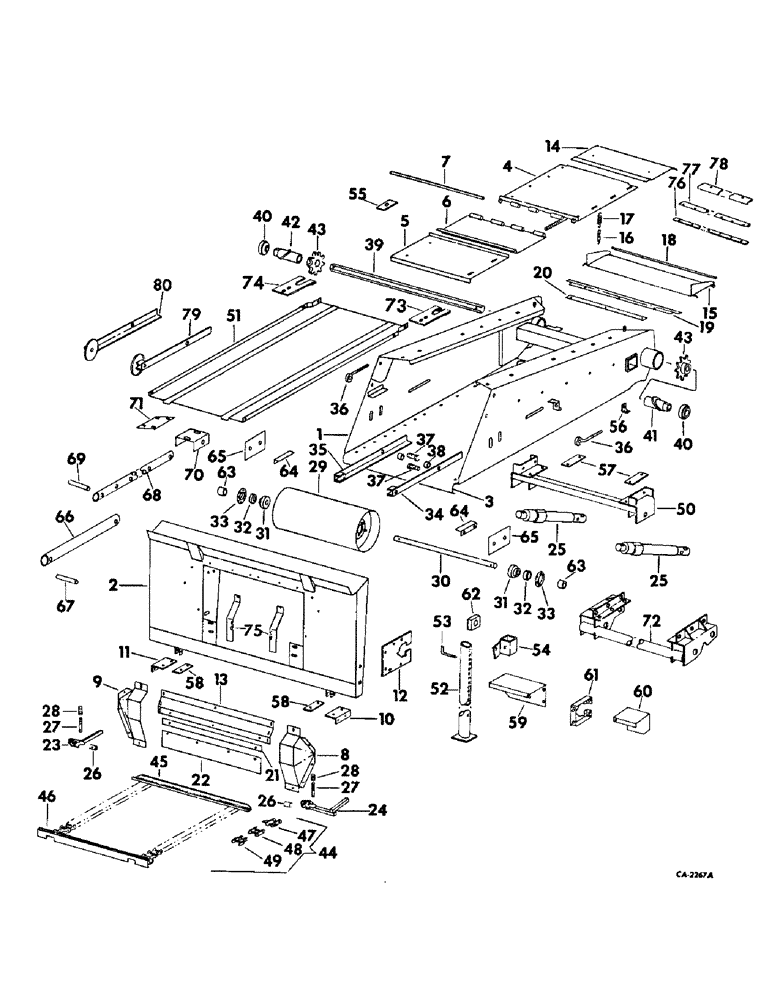

Запчасти Case IH 715 (33-02) - FEEDER, FEEDER, ADAPTER AND CONVEYOR (13) - FEEDER

1

175850C1

HOUSING ASSY, feeder, not used on rice combine w/34-in. main wheels & single belt feeder jackshaft drive

1шт.

1

175935C1

HOUSING ASSY, feeder, for use on rice combine w/34-in. main wheels & single belt feeder jackshaft drive

1шт.

619008R1

BOLT

1/2 x 1 sq-nk crg

1шт.

18822R1

BOLT,Hex, 5/8"-11 x 1 1/2", G2, Full Thd

5/8 x 1-1/2 hex-hd

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 znd ehx.

6шт.

271547

STUD,Hex, 5/8" - 11 x 1 1/2", Gr 5

SCREW, 5/8 x 1-1/2 hex-hd

1шт.

NLS

NO LONGER SERVICED

SCREW, 5/8 x 1-3/4 hex-hd

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

608081R1

WASHER

.66 x 1.75 x .12

1шт.

2

175863C1

ADAPTER ASSY, feeder

1шт.

3

175887C1

SHEET

feeder bottom, serial no. 19000 and below

1шт.

3

180407C1

SHEET

feeder bottom, serial no. 19001 and above, not used on rice combine w/34-in. main wheels & single belt feeder jackshaft drive

1шт.

3

175945C1

SHEET, feeder bottom, serial no. 19000 and below

1шт.

3

180408C1

SHEET, feeder bottom, serial no. 19001 and above, for use on rice combine w/34-in. main wheels and double belt feeder jackshaft drive

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1-znd sq nk crg

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4 sq-nk crg type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 flange lock

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

4

175890C1

SHEET ASSY, feeder top, not used on rice combine w/34-in. main wheels & single belt feeder jackshaft drive

1шт.

4

175946C1

SHEET ASSY, feeder top, for use on rice combine w/34-in. main wheels and double belt feeder jackshaft drive

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 sq-nr crg

1шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2 x 1 sq-nk crg type 5

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4 sq-nk crg type 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120396

WASHER

.53 x 1.06 x .10 znd

1шт.

5

175900C2

TOP, feeder lower

1шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2 x 1 sq-nk crg type 5

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4 sq-nk crg type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

NLS

NO LONGER SERVICED

.53 x 1.06 x .10

1шт.

6

175903C1

DOOR

feeder top

1шт.

7

175906C1

ROD

feeder top door hinge

1шт.

8

175908C1

DEFLECTOR

ASSY, feeder front LH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

5шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

5шт.

9

175909C1

DEFLECTOR

ASSY, feeder front RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd flange lock

5шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

5шт.

10

175913C1

ANGLE

feeder adapter LH

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2 x 1-1/4 hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120396

WASHER

.53 x 1.06 x .10

1шт.

11

175914C1

ANGLE

feeder adapter RH

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2 x 1-1/4 hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

NLS

NO LONGER SERVICED

.53 x 1.06 x .10

1шт.

12

175915C1

SUPPORT

feeder jackshaft brg

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 sq-nk crg

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

13

175917C1

COVER

feeder adapter

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

14

175920C1

COVER

feeder top upper

1шт.

15

175923C1

DOOR

ASSY, feeder

1шт.

16

167570C1

CHAIN,203.2mm L

door latch

2шт.

17

622016R1

SPRING

door latch

2шт.

18

175930C1

ROD

feeder door hinge

1шт.

19

175933C1

DOOR SEAL

feeder door, serial no. 19000 and below

1шт.

46-38

RIVET,Csk, 3/16" x 1/2"

3/16 x 1/2 csk-hd solid

1шт.

20

175949C1

STRIP, feeder lower door seal, serial no. 19000 and below

1шт.

21

175952C1

BAR

STRIP, front cover back

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 whiz lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

22

175955C1

COVER

front lower

1шт.

23

179024C1

HINGE

HANDLE ASSY, feeder latch

2шт.

24

(Not used in this application)

1шт.

25

CYLINDER ASSY, header lift, refer to group 10 under header lift cylinder

2шт.

26

177141C1

PIN,15.88mm OD x 41mm L

latch pivot

2шт.

17132R1

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

2шт.

21471R1

WASHER

21/32 x 1 x 11 ga znd

4шт.

27

177138C1

ROD

feeder latch

2шт.

231-1445

NUT,5/16"-18, GB

NUT, 5/16 znd nylon insert

2шт.

18518R1

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .34 x .69 x .06 znd

4шт.

28

367833R1

SPRING

latch rod

2шт.

29

175975C1

DRUM HUB

DRUM ASSY, feed conveyor

1шт.

30

175982C1

SHAFT

feed conveyor drum

1шт.

22192R1

WASHER

1-1/32 x 1-3/8 x 16 ga

1шт.

31

202311C91

BALL BEARING,25.4mm ID x 52mm OD x 15mm W

BEARING, feed conveyor drum

2шт.

32

455102R11

COLLAR

ASSY, feed conveyor drum brg

2шт.

33

165360C1

FLANGED BEARING,95.2 mm OD x 8.74 mm

FLANGE, feed conveyor drum brg

2шт.

271501

SOCKET

NUT, 7/16 znd hex.

6шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

6шт.

34

178756C2

ARM

ASSY, feed conveyor drum support LH

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

SCREW, 3/8 x 2 znd hex-hd cap

1шт.

35

178757C2

ARM

ASSY, feed conveyor drum support RH

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

SCREW, 3/8 x 2 znp hex-hd cap

1шт.

36

176508C1

BOLT,5/8" - 11 x 228.60mm

feed conveyor tightener

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 znd hex.

4шт.

NLS

NO LONGER SERVICED

.66 x 1.3 x .10 znd

4шт.

37

178005C1

BOLT,Hex, 5/8" - 11 x 3", Gr 5

conveyor drum support arm

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 hex.

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

131016

WASHER

21/32 x 1-5/16 x 13 ga

1шт.

38

558506R1

SPACER

support arm bolt

2шт.

39

176511C1

SHAFT

feed conveyor, not windrow special

1шт.

39

176509C1

SHAFT

feed conveyor, for windrow special

1шт.

137323

COTTER PIN,5/16" x 2 1/2"

Pin, Split (Cotter), 5/16" x 2 1/2"

1шт.

609376R1

WASHER

1.78 x 2.5 x .105

1шт.

40

176507C92

BEARING

feed conveyor shaft

2шт.

41

178780C1

SPACER

ASSY, conveyor sprocket LH

1шт.

42

178781C1

SPACER

ASSY, conveyor sprocket RH

1шт.

43

175989C1

SPROCKET ASSY.

SPROCKET, feed conveyor, 9T, serial no. 12000 and below

2шт.

43

197556C1

SPROCKET ASSY.

SPROCKET, feed conveyor, 9 T, serial no. 12001 and above

2шт.

197643C1

SET SCREW

special set

1шт.

44

175991C91

CHAIN (AG)

CHAIN ASSY, feed conveyor, not used on rice combine w/34-in. main wheels & single belt feeder jackshaft drive

1шт.

44

175993C91

CHAIN (AG)

CHAIN ASSY, feed conveyor, for use on rice combine w/34-in. main wheels and double belt feeder jackshaft drive, includes ref nos 45 thru 49

1шт.

45

175996C1

SLAT

feed conveyor

1шт.

104263

X

RIVET, 5/16 x 1/2 F-hd solid

1шт.

46

177302C1

SLAT

ASSY, conveyor stripper

1шт.

104263

X

RIVET, 5/16 x 1/2 F-hd solid

4шт.

47

176505C1

LINK

ASSY, att, consists of side bar w/riveted pins and 1 loose side bar

1шт.

48

176506C1

LINK

ASSY, connecting, serial no. 12000 and below, consists of side bar w/riveted pins and 1 loose side bar

1шт.

48

179903C1

LINK

ASSY, connecting, serial no. 12001 and above, consists of side bar w/riveted pins and 1 loose side bar

1шт.

49

178200C1

DRAG LINK

LINK ASSY, offset, serial no. 12000 and below, consists of side bars w/roller and 1 loose pin

1шт.

49

179904C1

LINK

ASSY, offset, serial no. 12001 and above, consists of side bars w/roller and 1 loose pin

1шт.

50

176522C1

BRACKET ASSY, header lift, serial no. 12000 and below

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 sq-nk crg type 5

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4 sq-nk crg type 5

1шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2 x 1 sq-nk crg type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

51

177670C1

BOTTOM ASSY, feeder false, standard for rice, special for all others

1шт.

51

177674C1

BOTTOM ASSY, for 80 in. feeder

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

164191C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1 1/2"

5/16 x 1-1/2 slt-truss-hd

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

52

178234C1

STAND ASSY, feeder safety, serial no. 12000 and below

1шт.

53

589584R1

PIN

ROD, stand holder, serial no. 12000 and below

1шт.

517843R1

COTTER PIN

PIN, 3/16 QA cotter

1шт.

54

178605C1

ANCHOR, feeder stand, serial no. 12000 and below

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4 znd sq-nk crg

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 znd flange lock

2шт.

22042R1

WASHER

17/32 x 2 x 11 ga znd

1шт.

55

154041C1

STRIP

feeder top door hold down

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

56

154971C1

ANGLE

feeder door spring

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

2шт.

164191C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1 1/2"

5/16 x 1-1/2 slt-truss-hd

2шт.

57

(Not used this application)

1шт.

58

(Not used this application)

1шт.

59

(Not used this application)

1шт.

60

179253C1

SHIELD

feeder jackshaft LH

1шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

3шт.

61

178254C1

SUPPORT

feeder jackshaft shield

1шт.

62

656417R1

PLATE, safety stand support spacer, serial no. 12000 and below

1шт.

63

M74461

SPACER,26.6mm ID x 33.4mm OD x 19mm L

S/N 19000 and below 1" Pipe x 3/4"

2шт.

64

179273C1

STOP, feed conveyor drum lower

2шт.

65

179274C1

COVER, feeder side

2шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4 sq-nk crg type 5

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

66

179659C1

PIPE, safety stand front, serial no. 12001 and above, not windrow special

1шт.

66

179923C1

PIPE, safety stand front, serial no. 12001 and above, for windrow special

1шт.

67

573762R1

PIN,25.4mm OD x 130.97mm L

safety stand anchor

1шт.

137263

STRIP

3/16" x 2"

1шт.

68

197501C1

TUBE, safety stand rear, serial no. 12001 and above, not windrow special

1шт.

68

179924C1

TUBE, safety stand rear, serial no. 12001 and above, for windrow special

1шт.

69

164533C1

PIN

safety stand anchor

1шт.

432-1232

COTTER PIN,3/16" OD x 2" L

3/16" x 2"

1шт.

517843R1

COTTER PIN

PIN, QA cotter

1шт.

70

197502C1

CHANNEL, safety stand lock

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x 16 ga

1шт.

71

179748C1

PLATE, stand support

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x 16 ga

1шт.

72

179699C1

BRACKET

ASSY, header lift, serial no. 12001 and above

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 sq-nk crg type 5

1шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2 x 1 sq-nk crg type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

73

197964C1

STRIPPER

ASSY, LH

1шт.

60365H

BOLT,Hex, 3/8" - 16 x 1", Gr 8

3/8 x 1 hex.

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

151670C1

SHIM

shim .036

1шт.

74

197965C1

STRIPPER

ASSY, RH

1шт.

60365H

BOLT,Hex, 3/8" - 16 x 1", Gr 8

3/8 x 1 hex.

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

151670C1

SHIM

shim .036

1шт.

75

180151C91

FILLER, service package, for rice, parts accessory

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

76

197429C1

SEALING STRIP

seal backing, serial no. 19001 and above

1шт.

77

197428C1

SEAL

feeder door, serial no. 19001 and above

1шт.

197430C1

RIVET, 3/16 x .825 F-hd

1шт.

78

197427C1

GUIDE

STRIP, seal spacer

1шт.

79

180527C1

ARM W/SHIELD, drum support LH, for rice w/serial no. 19001 and above

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

SCREW, 3/8 x 2 hex-hd cap

1шт.

80

180528C1

ARM

W/SHIELD, drum support RH, for rice w/serial no. 19001 and above

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

SCREW, 3/8 x 2 hex-hd cap

1шт.
