Запчасти Case IH 715 (10-37) - HYDRAULICS, OIL COOLER, HYDROSTATIC DRIVE, SERIAL NO. 8000 AND BELOW (07) - HYDRAULICS

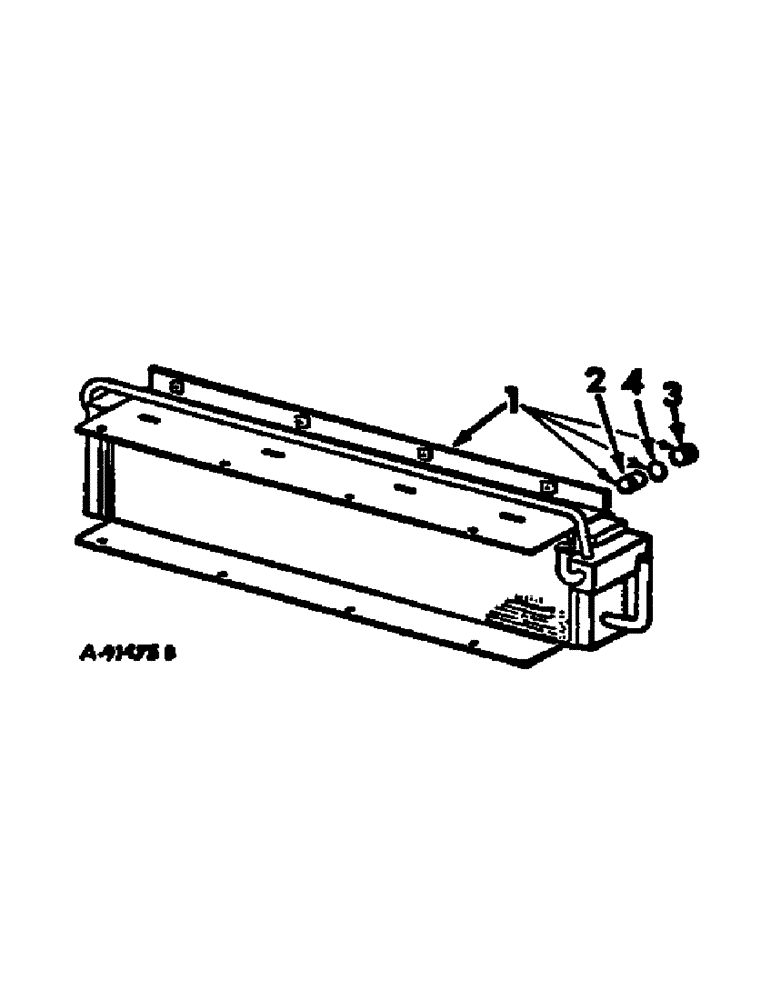

Схема запчастей Case IH 715 - (10-37) - HYDRAULICS, OIL COOLER, HYDROSTATIC DRIVE, SERIAL NO. 8000 AND BELOW (07) - HYDRAULICS
1
2
4
3

Артикул

Название

Примечание

Количество

1

400733R3

COOLER ASSY.

COOLER ASSY, oil, optional w/61196C91

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

SCREW, 5/16-18 x 5/8 znd hex-hd cap

8шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x 16 ga C-Z

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

2

529816R1

VALVE, oil cooler

1шт.

298385R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

oil cooler

1шт.

3

546729R1

PLUG, hex-soc pipe

1шт.

4

130041H1

RING, retaining

1шт.

Выбрано товаров: 8
