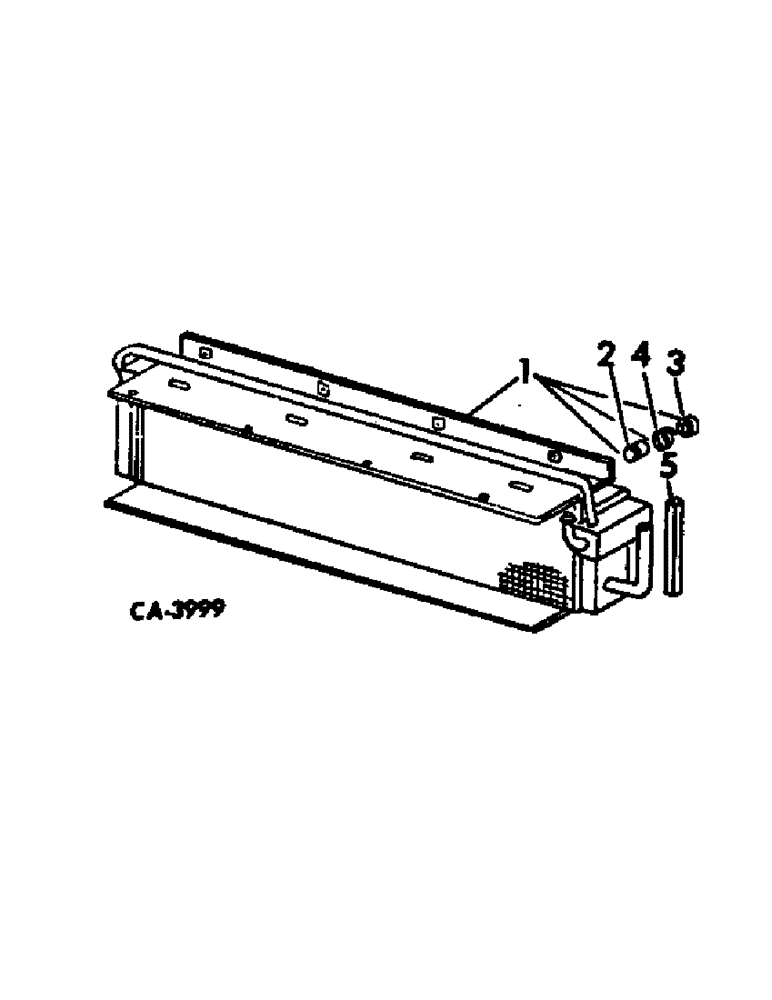

Запчасти Case IH 715 (10-37[1]) - HYDRAULICS, OIL COOLER, SERIAL NO. 8001 AND ABOVE (07) - HYDRAULICS

1

61196C91

COOLER ASSY.

COOLER ASSY, oil, Karmazin, optional w/400733R3

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

SCREW, 5/16 x 5/8 znd hex-hd cap

8шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x 16 ga C-Z

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

2

61221C1

VALVE

CARTRIDGE, check valve

1шт.

3

61223C1

PLUG

PIPE PLUG

1шт.

4

61222C1

SPRING

1шт.

5

530461R1

STRIP, sealing, to be used with Karmazin oil cooler only

2шт.
