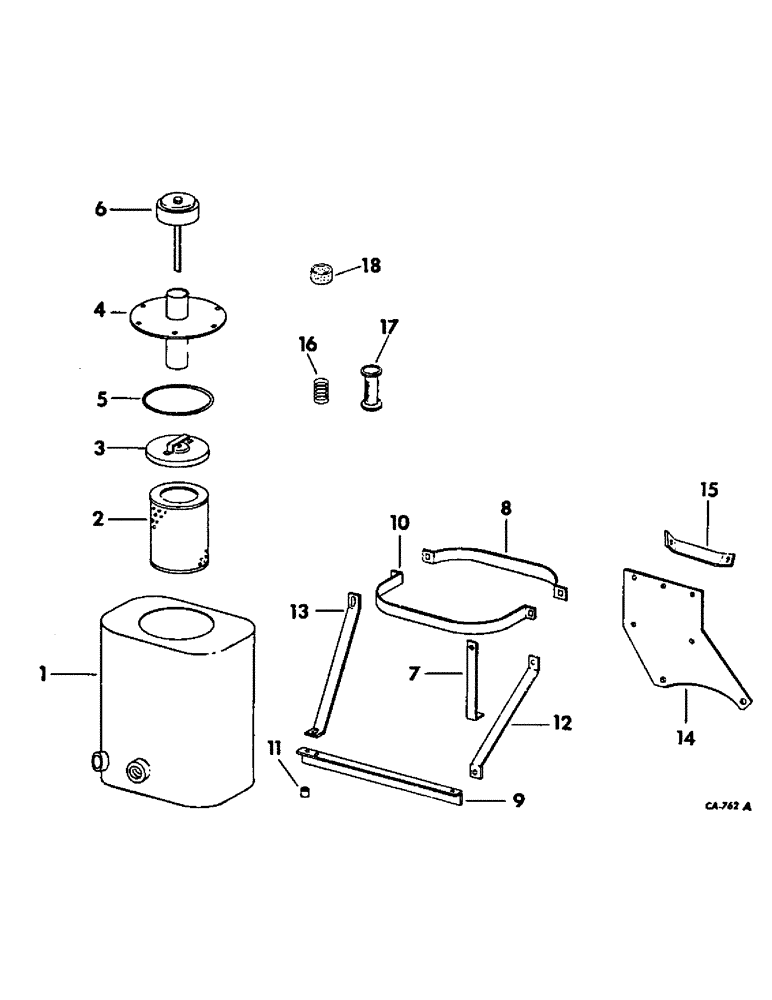

Запчасти Case IH 715 (10-36) - HYDRAULICS, HYDRAULIC RESERVOIR, HYDROSTATIC DRIVE (07) - HYDRAULICS

171956C91

RESERVOIR ASSY, hydraulic, includes ref nos 1 thru 6, 16 and 17

1шт.

1

BODY, reservoir, order 171956C91 hydraulic reservoir assy

1шт.

2

386120R91

FILTER CARTRIDGE

ELEMENT ASSY, filter

1шт.

3

173131C1

COVER ASSY

LID ASSY, filter

1шт.

4

173132C1

COVER ASSY, reservoir

1шт.

5

21295R1

O-RING,5.725" ID x 6.275" OD x 0.275"

rewservoir cover

1шт.

6

167461C91

CAP

W/DIPSTICK AND FILTER

1шт.

7

171954C1

STRAP, reservoir hold down

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x 16 ga

2шт.

8

171953C1

STRAP, reservoir rear

1шт.

9

171950C1

SUPPORT, reservoir

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

1шт.

20628R1

BOLT,Hex, 3/8"-16 x 3 1/4", G2

3/8 x 3-1/4 znd hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

10

171952C1

STRAP, reservoir front

1шт.

16888R1

HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2

BOLT, 5/16 x 1-1/4 znd sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x 16 ga

2шт.

11

600373R1

SPACER

3/8 x 2-1/4 std pipe

1шт.

12

171951C1

BRACE, reservoir right

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

13

171955C1

BRACE, reservoir left

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

14

633695R1

SUPPORT, reservoir

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 znd hex-hd cap

3шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 znd hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

15

634583R1

BRACE, reservoir

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 znd hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

16

173930C1

SPRING

strainer

1шт.

17

173929C1

STRAINER ELEMENT

STRAINER

1шт.

18

167852C1

ELEMENT, filter

1шт.
