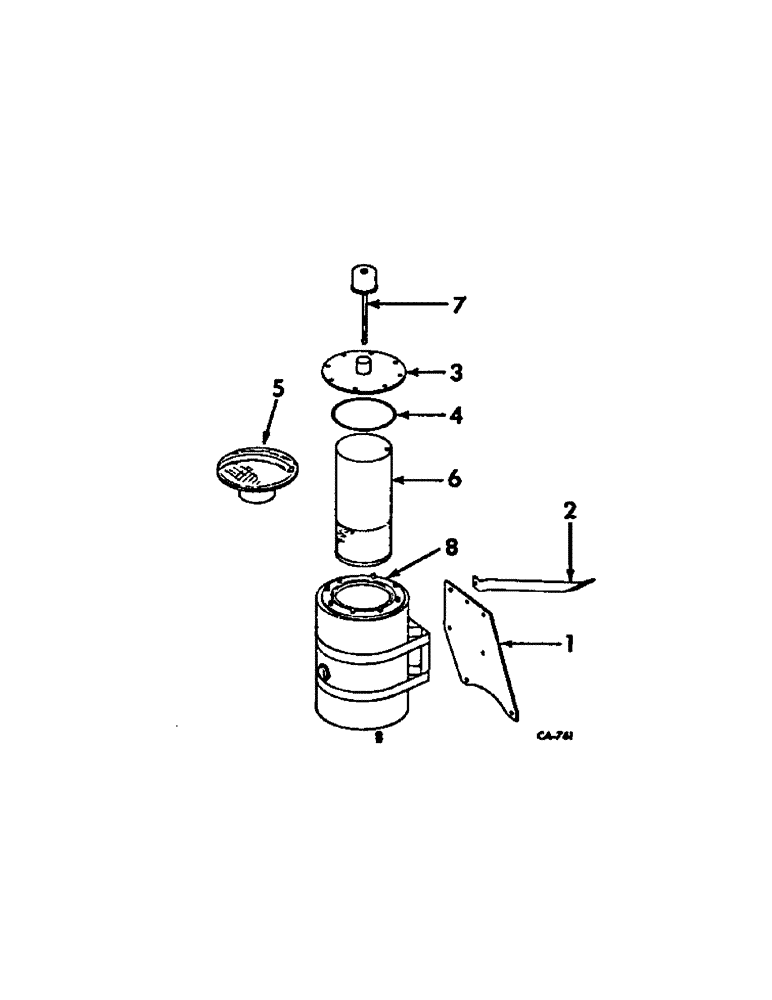

Запчасти Case IH 715 (10-35[1]) - HYDRAULICS, HYDRAULIC RESERVOIR, BELT DRIVE (07) - HYDRAULICS

156395C91

RESERVOIR

ASSY, hydraulic oil, includes ref nos. 1 thru 8

1шт.

1

633695R1

SUPPORT, reservoir, diesel engine

1шт.

1

627436R1

SUPPORT, reservoir, gasoline engine

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 znd hex-hd cap

3шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 znd hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

2

631936R1

BRACE, reservoir, gasoline engine

1шт.

2

634583R1

BRACE, reservoir, diesel engine

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 znd hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

3

163646C91

COVER

ASSY

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

8шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

4

22760R1

O-RING,6.725" ID x 7.275" OD x 0.275"

seal

1шт.

5

386121R92

VALVE

ASSY

1шт.

6

386120R91

FILTER CARTRIDGE

CARTRIDGE ASSY, filter

1шт.

7

567521R91

CAP

BREATHER CAP AND DIPSTICK

1шт.

8

BODY, reservoir, order 156395C91 reservoir assy

1шт.
