Запчасти Case IH 715 (10-33[1]) - HYDRAULICS, HYDRAULIC LIFT PUMP, NOT HYDRAULIC REEL DRIVE, WEBSTER (07) - HYDRAULICS

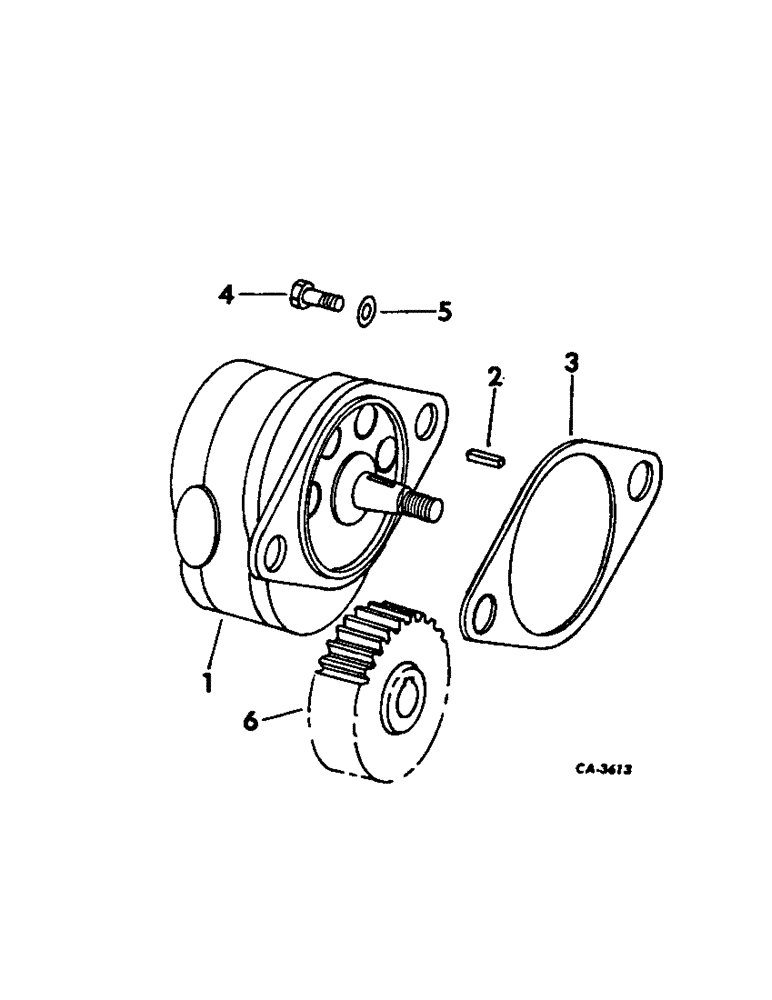

Схема запчастей Case IH 715 - (10-33[1]) - HYDRAULICS, HYDRAULIC LIFT PUMP, NOT HYDRAULIC REEL DRIVE, WEBSTER (07) - HYDRAULICS
2
5
4
6
3
1

Артикул

Название

Примечание

Количество

1

178384C91

PUMP

ASSY, hydraulic

1шт.

20729R1

NUT,3/8"-16, G5, LH

3/8 hex. LH thread

1шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

1шт.

632019R1

LOCK WASHER,3/8"

3/8"

1шт.

2

628965R1

KEY

5/32 x 3/4 sq parallel

1шт.

3

178386C1

GASKET

flange

1шт.

4

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Hydraulic pump mounting Hex, 3/8"-16 x 1 3/4", G5

2шт.

5

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , Hydraulic pump mounting 3/8"

2шт.

6

631180R1

GEAR

hydraulic pump

1шт.

178385C2

SEAL KIT

pump repair, consists of (1) gasket, (1) key, square, (1) key, square, (1) plate, wear, (1) ring, internal retaining, (1) ring, sealing, (1) seal, load, (1) seal, oil, (1) seal, pre-load, (4) washer, flat, (4) washer, flat

1шт.

Выбрано товаров: 10
