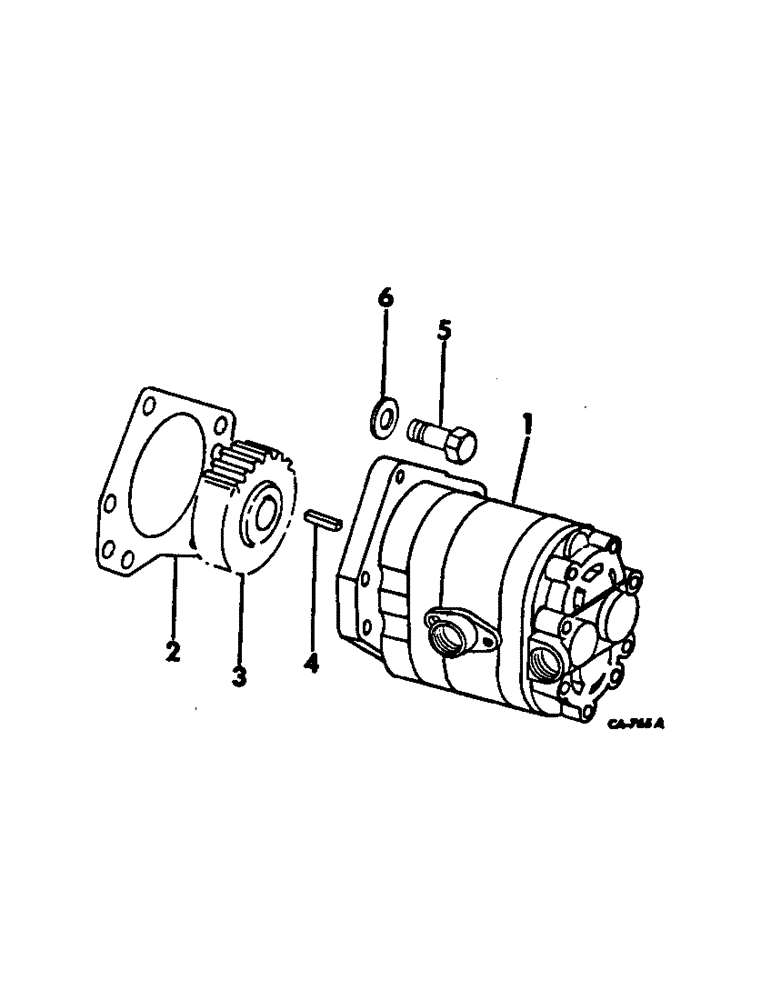

Запчасти Case IH 715 (10-32[1]) - HYDRAULICS, HYDRAULIC LIFT PUMP, FOR HYDRAULIC REEL DRIVE (07) - HYDRAULICS

1

154680C92

PUMP

ASSY, hydraulic lift

1шт.

20729R1

NUT,3/8"-16, G5, LH

3/8 znd hex LH lock

1шт.

632019R1

LOCK WASHER,3/8"

hydraulic pump shaft 3/8"

1шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

1шт.

2

632851R1

GASKET

flange

1шт.

3

631180R1

GEAR

hydraulic pump

1шт.

4

628965R1

KEY

5/32 x 3/4 sq parallel

1шт.

5

313756R1

BOLT (SPREADER),Pan, M8 x 18mm

BOLT, hydraulic pump mounting

2шт.

6

565832R1

WASHER

hydraulic pump mounting

2шт.

168318C92

KIT

ASSY, diaphragm, consists of (2) ball, steel 7/32, (1) diaphragm, (1) gasket, backup, (1) gasket, protector, (1) o-ring, (1) seal, (1) seal, shaft, (2) springs

1шт.
