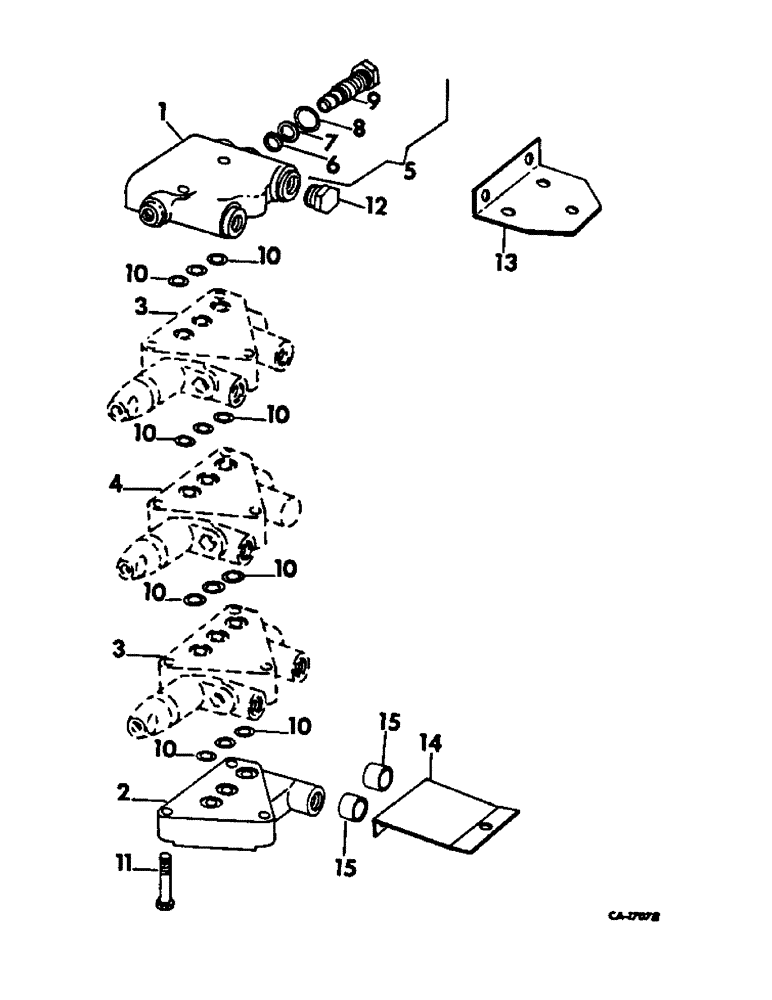

Запчасти Case IH 715 (10-28) - HYDRAULICS, CONTROL VALVE (07) - HYDRAULICS

1

173826C91

BODY

PLATE ASSY, port

1шт.

2

166882C1

VALVE

END PLATE

1шт.

3

VALVE ASSY, propulsion or reel lift section, refer to this group under propulsion or reel lift section

1шт.

4

VALVE ASSY, automatic platform lift section, refer to this group under automatic header lift section

1шт.

4

VALVE ASSY, platform lift section, refer to this group under header lift section

1шт.

5

167447C91

VALVE

ASSY, relief, incl ref. nox. 6, 7 and 8

1шт.

6

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32

1шт.

7

587585R1

WASHER

back-up

1шт.

8

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/4 x 15/16 x 3/32

1шт.

9

BODY, not serviced separately order valve assy 167447C91

1шт.

10

574069R1

O-RING,0.750" ID x .062"

3/4 x 7/8 x 1/16

12шт.

11

180132

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

SCREW, 3/8 x 2-1/4 hex-hd, used w/automatic platform control valve

3шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

11

20484R1

BOLT,Hex, 5/16" - 18 x 6 1/2", Gr 5

SCREW, 5/16 x 6-1/2 hex-hd, used w/hydraulic reel lift valve

3шт.

11

18677R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 2 1/2", Gr 2

SCREW, 5/16 x 2-1/2 sq-nk crg, used w/automatic control valve

3шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 whiz lock

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

12

9403333

PLUG,3/4"-16, 37 Degree

3/4-16 hex.

1шт.

13

627411R1

BRACKET, hydraulic valve RH

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 znd hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

14

171917C1

SUPPORT, hydraulic control valve left, not hydraulic reel lift

1шт.

14

171918C1

SUPPORT, hydraulic control valve left, for hydraulic reel lift

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 hex-hd cap

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

15

607706R1

SPACER,3/8" Pipe x 1 5/8"

3/8 x 1-5/8 std pipe, hydrostatic drive

2шт.

180132

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

SCREW, 3/8 x 2-1/4 znd hex-hd cap

2шт.

173824C91

SEAL KIT

ASSY, major repair, consists of

1шт.

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

3шт.

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

3шт.

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

8шт.

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

9шт.

574069R1

O-RING,0.750" ID x .062"

12шт.

159380C91

VALVE

POPPET ASSY

1шт.

588351R91

VALVE

POPPET ASSY

4шт.
