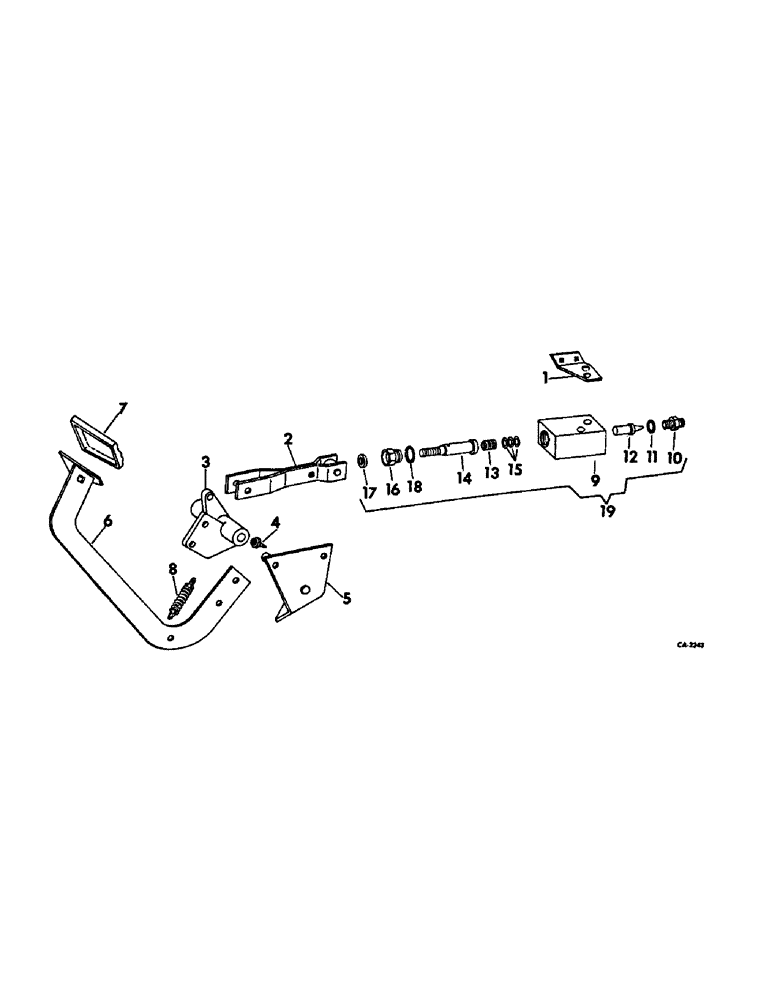

Запчасти Case IH 715 (10-27) - HYDRAULICS, FOOT-N-INCH VALVE AND CONTROLS (07) - HYDRAULICS

1

164369C1

SUPPORT, foot-n-inch valve

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

164404C91

YOKE ASSY, foot-n-inch valve front

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

138084

SPLIT PIN/SAFETY PIN

PIN, 3/8 x 1-3/32 C-Z rod end

1шт.

3

938870R1

PIVOT, foot-n-inch pedal

1шт.

4

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

5

174807C2

PIVOT ASSY, foot-n-inch pedal

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga C-Z

2шт.

6

939636R91

LEVER ASSY, foot-n-inch pedal

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 hex-hd

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

7

863426R1

PAD

foot-n-inch pedal rubber

1шт.

8

52635R1

SPRING

foot-n-inch pedal lever return

1шт.

9

BODY, valve, order 403347R91 valve assy

1шт.

10

398709R1

SEAT

poppet valve

1шт.

11

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

1шт.

12

398710R1

VALVE POPPET

VALVE, poppet

1шт.

13

403434R1

SPRING

valve

1шт.

14

398708R1

STOP

valve

1шт.

15

401293R91

PACKAGE

relief valve shims, serial no. 8000 and below

1шт.

15

530575R91

SHIM KIT

PACKAGE, relief valve shims, serial no. 8001 and above

1шт.

16

398707R11

GUIDE

ASSY, valve spring stop, includes ref no. 17

1шт.

17

398701R91

OIL SEAL,8.26mm ID x 19.15mm OD x 6.5mm Thk

OIL SEAL

1шт.

18

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

for 5/8 OD tube

1шт.

19

403347R91

LOCK VALVE

VALVE ASSY, foot-n-inch, includes ref. nos. 9 thru 18

1шт.

18781R1

BOLT,Hex, 3/8"-16 x 2", G2

3/8 x 2 C-Z hex-hd mach

2шт.

120368

NUT,5/16"-24, G5

5/16-24 hex. jam

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.
