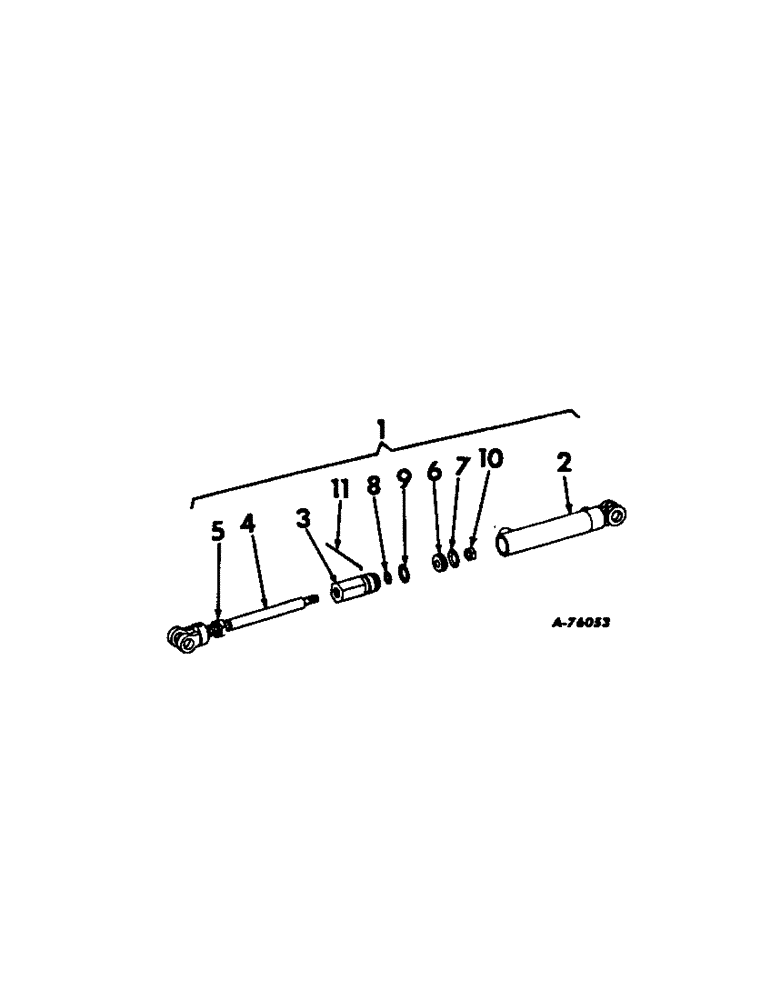

Запчасти Case IH 715 (10-25[1]) - HYDRAULICS, PROPULSION CONTROL CYLINDER, BELT DRIVE (07) - HYDRAULICS

1

387864R91

CYLINDER ASSY, propulsion control

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

2шт.

21880R1

PIN

5/8 x 1-7/8 C-Z std-hd

2шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

2шт.

22258R1

WASHER

21/32 x 1 x 22 ga C-Z

2шт.

2

387865R91

TUBE,7.762" Length

ASSY

1шт.

3

381825R1

HEAD

1шт.

4

381826R11

PISTON ROD

ROD ASSY

1шт.

5

318827R1

NUT, 1/2 lock

1шт.

6

381828R1

PISTON

HEAD, piston

1шт.

7

384598R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 6, 90 Duro

1шт.

8

470585R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

1шт.

9

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

1шт.

10

381829R1

NUT

5/16 lock

1шт.

11

381830R1

ELECTRICAL WIRE

RETAINER, cylinder head

1шт.
