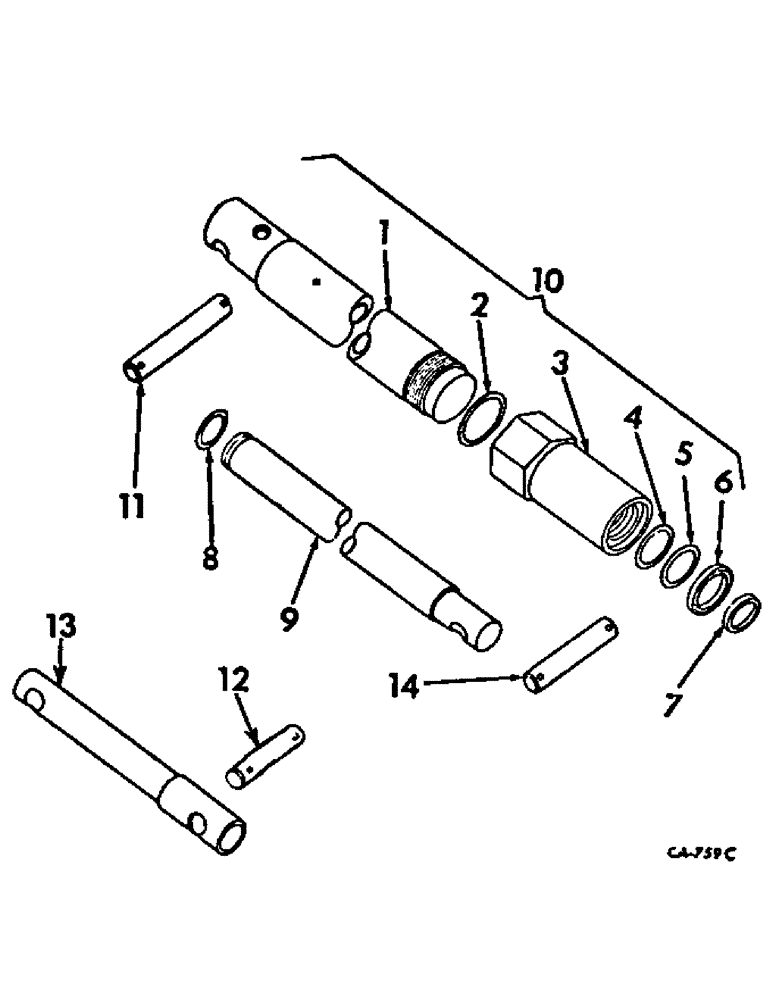

Запчасти Case IH 715 (10-24) - HYDRAULICS, PLATFORM HYDRAULIC LIFT CYLINDER AND EXTENSION, SERIAL NO. 8000 AND BELOW (07) - HYDRAULICS

1

383775R11

TUBE ASSY, cylinder, for use w/383762R92 cylinder 17.87" Length

1шт.

1

383776R11

TUBE ASSY, cylinder, for use w/383763R92 cylidner 19.37" Length

1шт.

2

366581R1

O-RING,2.612" ID x 0.103" Width

2-5/8 x 2-13/16 x 3/32

1шт.

3

383778R11

HEAD

ASSY, rod end

1шт.

4

464048R1

O-RING,0.21" Thk x 1.975" ID, -329, Cl 6, 90 Duro

2 x 2-3/8 x 3/16

1шт.

5

378726R1

BACK-UP RING

piston rod back-up

1шт.

6

383783R1

SEAL

SEAL, piston rod dust

1шт.

7

383779R1

RETAINER

piston rod dust seal

1шт.

8

378752R1

RING, PISTON

STOP RING, piston rod

1шт.

9

383780R2

ROD, piston, for use w/383762R92 cylinder

1шт.

9

383781R2

ROD, piston, for use w/383763R92 cylinder

1шт.

10

383762R92

CYLINDER ASSY, platform hydraulic lift, serial no. 8000 and below includes ref. nos. 1 thru 9, single acting 2 in. bore x 15-1/2 in. stroke, for additional information refer to TPM-2 parts merchandiser section F

1шт.

10

383763R92

CYLINDER ASSY, platform hydraulic lift, serial no. 8000 and below, includes ref nos 1 thru 9, single acting 2 in. bore x 17 in. stroke, for additional information refer to TPM-2 parts merchandiser section F

1шт.

11

571181R1

PIN, platform lift cylinder rear

2шт.

137258

COTTER PIN

3/16" x 1 3/4"

1шт.

12

564986R1

PIN, platform lift cylinder extension, window special

2шт.

13

634167R91

EXTENSION ASSY, platform lift cylinder, window special

2шт.

14

569335R1

PIN, platform lift cylinder front

2шт.

386692R92

PACKAGE, cylinder over-haul, consists of (1) o-ring 366581R91, (1) o-ring 464048R1, (1) retainer 383779R1, (1) seal 383783R1, (1) washer 378726R1

1шт.
