Запчасти Case IH 715 (10-23) - HYDRAULICS, HYDRAULIC REEL LIFT CYLINDER, MASTER CYLINDER (07) - HYDRAULICS

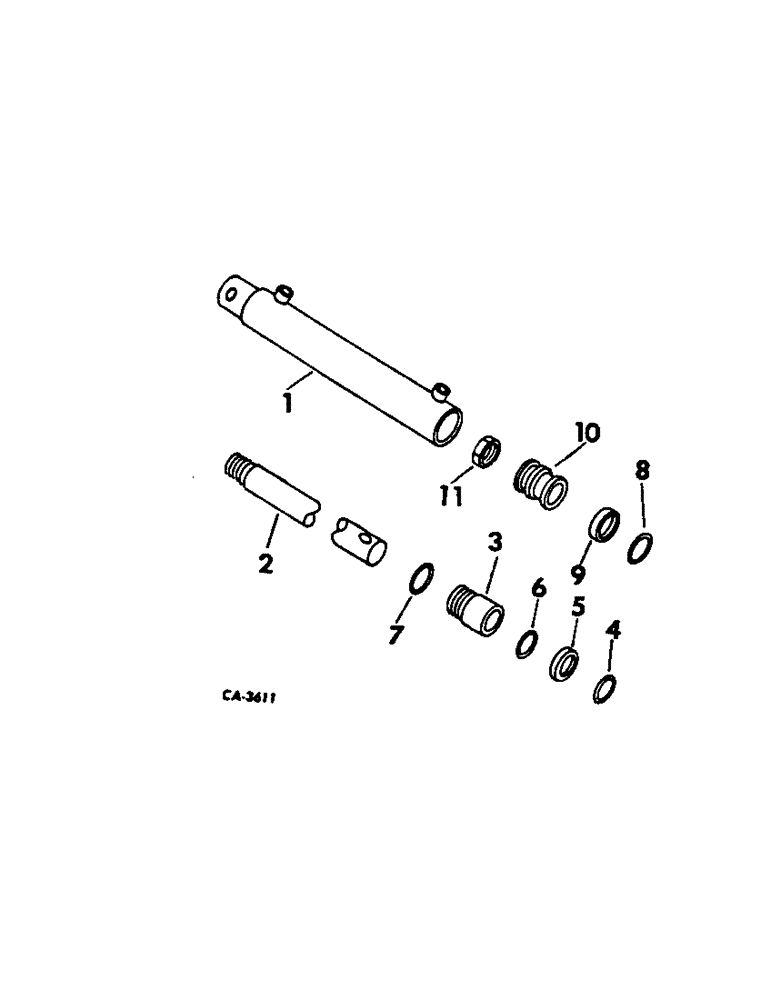

Схема запчастей Case IH 715 - (10-23) - HYDRAULICS, HYDRAULIC REEL LIFT CYLINDER, MASTER CYLINDER (07) - HYDRAULICS
2
11
6
3
9
7
1
4
8
5
10

Артикул

Название

Примечание

Количество

547358R91

CYLINDER

ASSY, master

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

22804R1

HEADED PIN,1/2" x 2 1/2"

PIN, 1/2 x 2-1/2 std-hd

1шт.

21958R1

HEADED PIN,1/2" x 2 3/4"

PIN, 1/2 x 2-3/4 std-hd

1шт.

1

547328R1

NO LONGER SERVICED

BODY ASSY, hydraulic cylinder

1шт.

2

547332R1

ROD

piston

1шт.

3

547384R1

CYLINDER HEAD

HEAD, front

1шт.

4

547386R1

SEAL

WIPER, rod

1шт.

5

547385R1

WASHER

piston rod o-ring back-up

1шт.

6

343905R1

O-RING,1.109" ID x 0.139" Width

1-1/8 x 1-3/8 x 1/8

1шт.

7

381885R1

O-RING,0.103" Thk x 1.362" ID, -126, Cl 6, 90 Duro

1-3/8 x 1-9/16 x 3/32

1шт.

8

378031R1

O-RING,0.103" Thk x 1.174" ID, -123, Cl 5, 75 Duro

1-3/16 x 1-3/8 x 3/32

1шт.

9

547383R1

SEAL

piston

1шт.

10

547333R1

PISTON

1шт.

11

548033R1

JAM NUT

NUT, lock

1шт.

547388R91

PACKAGE, REPAIR

KIT, hydraulic cylinder service

1шт.

Выбрано товаров: 16
