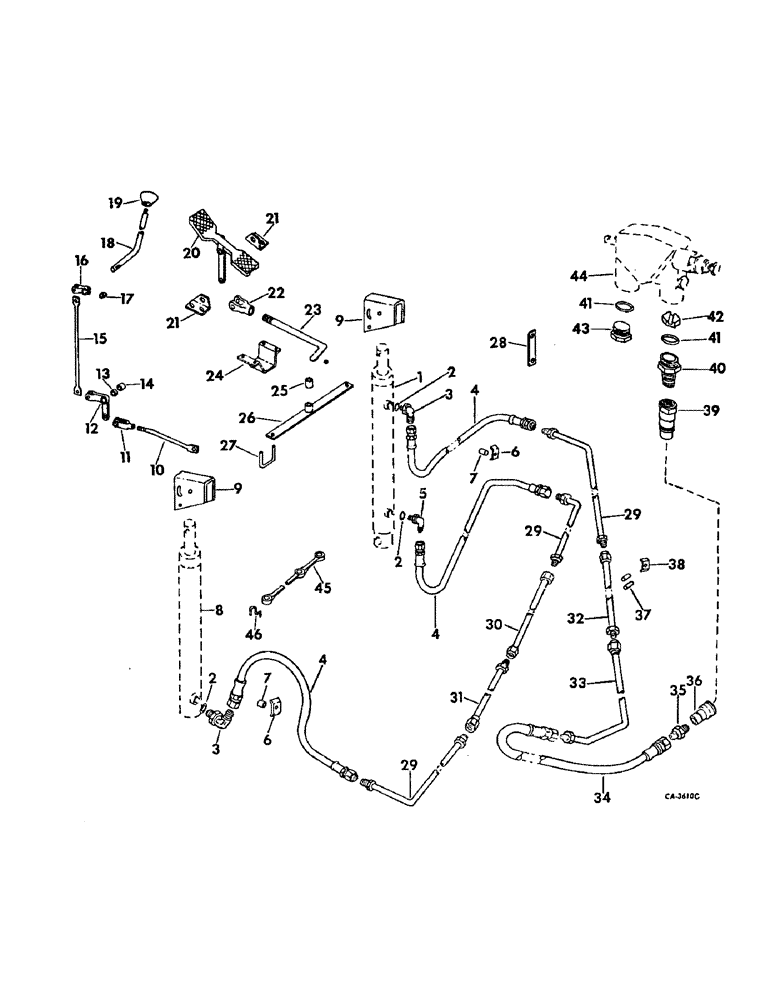

Запчасти Case IH 715 (10-11) - HYDRAULICS, HYDRAULIC REEL LIFT (07) - HYDRAULICS

1

CYLINDER ASSY, master, Cessna, refer to this group under hydraulic reel lift cylinder

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

22804R1

HEADED PIN,1/2" x 2 1/2"

PIN, 1/2 x 2-1/2 std-hd

1шт.

21958R1

HEADED PIN,1/2" x 2 3/4"

PIN, 1/2 x 2-3/4 std-hd

1шт.

2

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

3шт.

3

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 deg flared tube

2шт.

4

336081R91

HOSE

ASSY, reel lift

3шт.

5

9411104

ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 deg hyd flared tube

1шт.

6

178816C1

CLIP

hose

4шт.

7

61851V

SPACER,1/4" Pipe x 3/4"

Std. pipe 1/4" Pipe x 3/4"

4шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

BOLT, 5/16 x 1 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

8

CYLINDER ASSY, hydraulic slave, Cessna, refer to this group under hydraulic reel lift cylinder

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

22804R1

HEADED PIN,1/2" x 2 1/2"

PIN, 1/2 x 2-1/2 std-hd

1шт.

21958R1

HEADED PIN,1/2" x 2 3/4"

PIN, 1/2 x 2-3/4 std-hd

1шт.

9

176728C1

CLEVIS

W/NUT, reel lift arm

2шт.

667486R1

BOLT

BOLT, 1/2 x 3-1/2 hex-hd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

102637

NUT,1/2"-13, G5

1шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW, 1/2 x 2-3/4 hex-hd

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120396

WASHER

.53 x 1.06 x .10

1шт.

10

939236R1

ROD, hyd reel lift rear control, belt drive

1шт.

124934

HOSE

1/2-20 znd hex. jam

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

22444R1

CLEVIS PIN,3/8" x 1"

PIN, 3/8 x 1 C-Z rod end

1шт.

138086

CLEVIS PIN,1/2" x 1.360"

PIN, 1/2 x 1-27/64 C-Z rod end

1шт.

11

104039

ADJUSTABLE CLEVIS,1/2"-20 x 3"

CLEVIS, 1/2-20 x 3 adj rod end, belt drive

1шт.

12

627414R1

BELLCRANK, hyd reel lift control lower, belt drive

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

138078

PIN, 3/8 x 1-3/32 C-Z rod end

1шт.

13

558506R1

SPACER

hyd reel lift control lower bellcrank left, belt drive

1шт.

14

576015R1

SPACER,7/8" Tube x 11/16"

hyd reel lift control lower bellcrank right, belt drive

1шт.

15

627416R1

ROD, hyd reel lift vertical control, belt drive

1шт.

16

627415R1

ARM, hyd reel lift control upper, belt drive

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

138078

PIN, 3/8 x 1-3/32 C-Z rod end

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 znd hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

17

28459KA

WASHER

hyd reel lift control upper arm, belt drive

1шт.

18

939246R1

LEVER, hyd reel lift control, belt drive

1шт.

21796R1

WASHER

21/32 x 1 x 16 ga

1шт.

19

178600C1

KNOB, hyd reel lift lever, belt drive

1шт.

20

631486R1

PEDAL, lift control, hydrostatic drive

1шт.

21

574471R1

BRACKET, control pedal, hydrostatic drive

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

4шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

23455R1

PIN, 7/16 x 2-7/8 C-Z std-hd

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

22

144243

CLEVIS

3/8-24 C-Z adj rod end, hydrostatic drive

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

120169

COTTER PIN,5/32" x 1"

PIN, SPLIT (COTTER), 5/32" x 1"

1шт.

138084

SPLIT PIN/SAFETY PIN

PIN, 3/8 x 1-3/32 C-Z rod end

1шт.

23

938295R1

ROD, front control, hydrostatic drive

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

24

627429R1

SUPPORT, control pivot strap, hydrostatic drive

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga

1шт.

25

574464R1

BUSHING, control pivot strap, hydrostatic drive

1шт.

26

627425R91

STRAP ASSY, control pivot, hydrostatic drive

1шт.

18781R1

BOLT,Hex, 3/8"-16 x 2", G2

3/8 x 2 znd hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

178372R1

WASHER

13/32 x 1-1/4 x 16 ga C-Z

1шт.

27

633673R1

ROD, rear control, hydrostatic drive

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

28

178815C1

STRAP

hose support RH

1шт.

29

178812C1

HYD TUBE

TUBE ASSY, outer end

3шт.

30

178811C1

HYD TUBE

TUBE ASSY, master to slave cyl center

1шт.

31

172015C1

TUBE

ASSY, spacer, 36 in., for 13 ft w/cutting equip

1шт.

31

197530C1

TUBE,0.375" OD

ASSY, spacer, 39 in., 2 for 16.5 ft

1шт.

31

178818C1

TUBE

ASSY, spacer, 45 in., 2 for 17.5 ft

1шт.

31

178819C1

TUBE

ASSY, spacer, 60 in., 1 for 15 ft, 2 for 20 ft

1шт.

32

178817C1

TUBE,0.375" OD, 18" Length

ASSY, spacer, 18 in., for 13 ft w/cutting equip

1шт.

32

162377C91

TUBE,30" Length

ASSY, spacer, 30 in., 1 for 15 ft

1шт.

32

197530C1

TUBE,0.375" OD

ASSY, spacer, 39 in., 1 for 16.5 ft

1шт.

32

178818C1

TUBE

ASSY, spacer, 45 in., 1 for 17.5 ft

1шт.

32

178819C1

TUBE

ASSY, spacer, 60 in., 1 for 20 ft

1шт.

33

178813C1

HYD TUBE,.375" OD, 35, 1.25" Length

TUBE ASSY, pressure to master cyl cter

1шт.

34

179202C1

HOSE,7.94mm ID x 1727.2mm L, SAE 100R1

header to combine, 68 in.

1шт.

35

9402708

HYD CONNECTOR,9/16"-18, 37 Degree x 1/4"-18, NPTF

CONNECTOR, 1/4-18 37 deg hyd flared

1шт.

36

166122C91

COUPLING

ASSY, self sealing female

1шт.

37

163490C1

RUBBER INSULATOR

CUSHION, tube clamp

1шт.

38

165602C1

CLAMP

hyd tube

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

164191C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1 1/2"

5/16 x 1-1/2 slt-truss-hd

1шт.

39

166123C91

COUPLING

ASSY, self-sealing male

1шт.

40

179213C1

ADAPTER

CONNECTOR, pipe to str thd

1шт.

41

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

2шт.

42

164787C1

ORIFICE

1шт.

43

9410359

PLUG

3/4-16 C-Z o-ring boss

1шт.

44

VALVE ASSY, reel lift section, refer to this group under propulsion or reel lift valve section, automatic header lift valve section

1шт.

45

179206C1

STRAP

hose retainer

1шт.

18656R1

BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 2

1/4 x 1-1/4 hex-hd

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

21801R1

WASHER

.281 x .750 x .056

1шт.

46

179207C1

HOOK

rubber strap

1шт.
