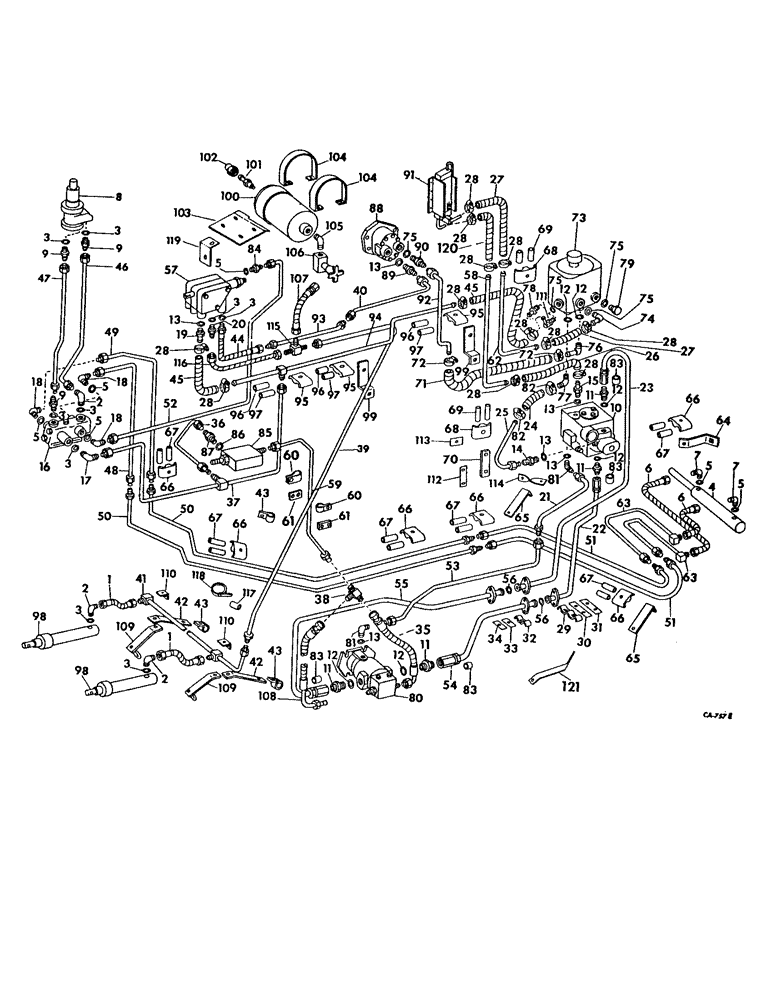

Запчасти Case IH 715 (10-05) - HYDRAULICS, HYDRAULIC DIAGRAM, HYDROSTATIC DRIVE (07) - HYDRAULICS

173807C91

COMPLETING PACKAGE FOR GUIDE WHEEL SUPPORT COUNTERWEIGHTS USED ON ALL COMBINES EXCEPT CORN AND SOYBEANS, includes ref nos 63 and 64

1шт.

1

574230R91

HOSE ASSY.

HOSE ASSY, platform lift cyl, 29 in.

2шт.

2

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 deg hyd flared tube 90 deg

3шт.

3

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 O.D. tube

9шт.

4

CYLINDER ASSY, steering, refer to this group under steering cylinder

1шт.

124944

JAM NUT,Hex, 5/8" - 18, Gr 5

1шт.

425-1310

SLOTTED NUT,5/8"-18, G5

NUT, 5/8 slt-hex

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

5

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

6шт.

6

155309C91

HYDRAULIC HOSE,0.31" ID x 20.00", SAE 100R1

0.31" ID x 20.00", Steering Cylinder, 1 Used Wide Adjustable Axle, 2 Used Except Wide Adjustable Axle

1шт.

6

632454R91

HYDRAULIC HOSE,0.31" ID x 30.00", SAE 100R1 Class B

HOSE ASSY, steering cylinder 30 in., 1 used wide adjustable axle

1шт.

7

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 deg hyd flared tube 90 deg

2шт.

8

PUMP ASSY, steering hand, refer to this group under steering hand pump

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16 x 3/4 hex-hd cap

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

9

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, 3/4-16 37 deg hyd flared tube

3шт.

10

PUMP ASSY, ground drive, refer to this group under hydraulic ground drive pump

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 C-Z hex.

4шт.

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

SCREW, 5/8 x 2-1/2 C-Z hex-hd cap

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

614774R1

WASHER, 21/32 x 1-11/16 x 3/16

4шт.

11

163915C1

FITTING

CONNECTOR, 1-5/16-27 37 deg flare

4шт.

12

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1 inch O.D. tube

6шт.

13

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

6шт.

14

574479R1

HYD CONNECTOR,1 1/16"-12, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 37 deg hyd flared tube

1шт.

15

171916C1

FITTING, Serial Range: pump-cooler

1шт.

16

VALVE ASSY, steering, refer to this group under steering valve

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 hex-hd

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

17

935036R91

ELBOW

1шт.

18

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 deg hyd flared tube

3шт.

19

387488R1

CONNECTOR, ELEC

FITTING, control valve

1шт.

20

574478R1

UNION

CONNECTOR, control valve

1шт.

21

171354C1

TUBE ASSY, ground drive motor to ground drive pump upper bleed

1шт.

22

164089C91

TUBE

ASSY, ground drive forward pressure upper, includes ref. no. 83

1шт.

23

164091C91

TUBE

ASSY, ground drive rearward pressure upper, includes ref. no. 83

1шт.

24

171355C1

HOSE, charge pump suction

1шт.

25

171356C1

TUBE ASSY, charge pump suction

1шт.

26

162458C1

PIPE CLAMP

HOSE, ground drive pump to oil cooler outlet, 15 in.

1шт.

27

HOSE, oil cooler to reservoir, use 15 in. of 3/4 in. ID hydraulic hose from 25 foot roll marked 526603R1

2шт.

28

122316R91

HOSE CLAMP,#12, 0.69/1.25 Type F Worm

CLAMP

12шт.

29

150778C1

CLAMP, hydraulic pipe upper

1шт.

30

150780C1

STRAP

hydraulic pipe cushion upper

1шт.

31

150779C1

TUBE

STRIP, hydraulic pipe cushion upper

1шт.

32

157678C1

CLAMP

hydraulic tube lower

2шт.

33

157783C1

STRAP, hydraulic tube cushion lower

1шт.

34

157679C1

STRIP, hydraulic tube cushion lower

1шт.

35

175760C1

HOSE ASSY.

HOSE, foot-n-inch valve lower rear

1шт.

36

164408C91

TUBE ASSY, foot-n-inch valve return

1шт.

37

171357C1

TUBE ASSY, steering valve return

1шт.

38

9402979

TEE,7/16"-20, 37 Degree

7/16-20 37 deg hyd flare tube 90 deg swivel C-Z

1шт.

39

627437R11

TUBE ASSY, platform lift cyl upper, not for use w/accumulator, serial no. 3250 and below

1шт.

39

172532C1

TUBE ASSY, platform lift cylinder upper, for use w/accumulator, serial no. 3250 and below

1шт.

39

174228C1

TUBE ASSY, platform lift cylinder upper, serial no. 33251 and above

1шт.

40

171947C1

TUBE ASSY, rear pressure, not hydraulic reel drive

1шт.

40

172050C1

HYD TUBE

TUBE ASSY, rear pressure, for hydraulic reel drive

1шт.

41

171358C1

TUBE ASSY, platform lift cyl lower, serial no. 8000 and below

1шт.

41

179211C1

TUBE ASSY, platform lift cyl lower, serial no. 8001 and above

1шт.

42

173142C1

STRAP, platform lift support

2шт.

43

567895R2

CLIP, 5/8 hyd tube

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

4шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

4шт.

44

631163R91

HOSE ASSY.

HOSE ASSY, valve pressure, 18 in.

1шт.

45

HOSE, platform lift return, use 18 in. of 3/4 in. ID hydraulic hose from 25 foot roll marked 526603R1

1шт.

46

939252R11

TUBE ASSY, hand pump to valve right

1шт.

47

939254R11

TUBE ASSY, hand pump to valve right

1шт.

48

654585R11

TUBE ASSY, steering valve to cyl front upper 1.375" OD, 39.75, 4.81" Length

1шт.

49

654584R11

TUBE ASSY, steering valve to cyl front lower 1.375" OD, 41.06, 5.24" Length

1шт.

50

171361C1

TUBE ASSY, steering valve to cylinder front middle, serial no. 8000 and below

2шт.

50

179210C2

TUBE ASSY, steering valve to cylinder front middle, serial no. 8001 and above

2шт.

51

173877C1

TUBE ASSY, steering valve to cylinder rear middle

2шт.

52

171363C1

TUBE, steering valve pressure

1шт.

53

150774C91

TUBE ASSY, ground drive motor, serial no. 5328 and below

1шт.

53

175330C1

TUBE ASSY, ground drive motor to ground drive pump lower bleed, serial no. 5329 and above

1шт.

54

164090C91

TUBE ASSY, ground drive forward pressure lower, serial no. 5328 and below

1шт.

54

175328C91

TUBE

ASSY, forward pressure lower, serial no. 5329 and above

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8 x 1-1/4 hex-hd

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

55

164092C91

TUBE ASSY, ground drive rearward pressure lower, serial no. 5328 and below

1шт.

54

175329C91

TUBE

ASSY, rearward pressurer lower, serial no. 5329 and above

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8 x 1-1/4 hex-hd

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

56

343906R1

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1-5/16 x 1-9/16 x 1/8

1шт.

57

VALVE SECTION ASSY, refer to control valve, propulsion or reel lift valve section, automatic header lift valve section

1шт.

58

171364C1

TUBE ASSY, ground drive pump to oil cooler, upper

1шт.

59

164410C92

TUBE ASSY, foot-n-inch valve upper, serial no. 5328 and below

1шт.

59

175762C1

TUBE ASSY, foot-n-inch valve, serial no. 5329 and above

1шт.

60

573674R1

CLIP

1/4 hyd tube

3шт.

61

634109R1

STRIP, hyd tube clip

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

3шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

62

173017C1

TUBE, cooler to reservoir upper

1шт.

63

171560C1

TUBE, rear steering, wide adjustable axle corn and soybean

2шт.

63

173588C1

TUBE, rear steering, not wide adjustable axle, corn and soybean

2шт.

64

172956C1

BRACKET, rear steering tube support, wide adjustable axle, corn and soybean and guide wheel support counterweight

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

SCREW, 5/16 x 3/4 C-Z hex-hd lock

1шт.

65

171934C1

ANGLE, steering tube support

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

1шт.

66

165602C1

CLAMP

3/8 hyd tube

5шт.

18674R1

BOLT,Short NK, 5/16"-18 x 1 1/2", G2

5/16 x 1-1/2 znd sq-nk crg

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

5шт.

151446C1

SERRATED SCREW,Flg Lock, Sl Truss Hd, 5/16" - 18 x 1 1/4"

5/16 x 1-1/4 slt-truss-hd

1шт.

67

163490C1

RUBBER INSULATOR

STRIP, 3/8 hyd tube rubber

10шт.

68

165601C1

CLAMP

5/8 tube

2шт.

18765R1

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 2

5/16 x 1-3/4 znd sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

69

163492C1

RUBBER INSULATOR

STRIP, 5/8 tube rubber

4шт.

70

172107C1

STRAP, cooler tube support

1шт.

71

178947C1

HOSE,1.00" ID x 12.00", SAE 100R4, CLASS 4

Suction 1.00" ID x 12.00", SAE 100R4, CLASS 4

1шт.

72

279024R91

HOSE CLAMP,#24, 1.06/2.00 Type F Worm

CLAMP, suction hose

2шт.

73

RESERVOIR ASSY, hydraulic oil, refer to this group under hydraulic reservoir

1шт.

74

387006R91

ELBOW

cooler return

1шт.

75

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 O.D. tube, not hydraulic reel drive

3шт.

76

391806R1

HOSE,2.18"

Fitting, Platform Lift Suction 2.18"

1шт.

77

171948C1

ELBOW

FITTING, charge pump suction

1шт.

78

470420R11

FITTING

CONNECTOR ASSY, return

1шт.

79

9410361

PLUG

1-1/16-12 o-ring boss

1шт.

80

MOTOR ASSY, ground drive, refer to this group under ground drive motor

1шт.

81

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 37 deg hyd flare tube 90

1шт.

82

333710R91

HOSE CLAMP,#16, 0.81/1.50 Type F Worm

SWITCH MOUNTING

2шт.

83

165722C1

SLEEVE

hydrostatic tube rubber

4шт.

84

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

UNION, 9/16-18, 37 deg hyd flared tube short swivel

1шт.

85

VALVE ASSY, foot-n-inch, refer to this group under foot-n-inch valve

1шт.

87

164419C1

CONNECTOR, 3/8 tube 5/16 port

1шт.

88

PUMP ASSY, hydraulic lift, not for hydraulic reel drive, refer to this group under hydraulic lift pump

1шт.

88

PUMP ASSY, hydraulic lift, for hydraulic reel drive, refer to this group under hydraulic lift pump

1шт.

313756R1

BOLT (SPREADER),Pan, M8 x 18mm

BOLT, hydraulic pump mounting bolt

2шт.

565832R1

WASHER

hydraulic pump mounting bolt

2шт.

89

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 5/8 tube, not for hydraulic reel drive

1шт.

90

574018R1

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR, 1 in. tube 3/4 port, not for hydraulic drive

1шт.

91

COOLER ASSY, engine oil, refer to this group under oil cooler

1шт.

92

171088C1

TUBE ASSY, pump suction, not hydraulic reel drive

1шт.

92

172049C1

TUBE ASSY, pump suction, for hydraulic reel drive

1шт.

86

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, 5/16 OD tube

1шт.

93

171014C1

TUBE ASSY, platform lift front pressure, grain tank

1шт.

94

171013C1

TUBE ASSY, platform lift return, grain tank

1шт.

95

165601C1

CLAMP

5/8 tube

3шт.

18765R1

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 2

5/16 x 1-1/2 hex-hd

1шт.

18766R1

BOLT,Hex, 5/16"-18 x 1 3/4", G2

5/16 x 1-3/4 znd hex-hd

1шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

96

163492C1

RUBBER INSULATOR

STRIP, 5/8 tube rubber

3шт.

97

163493C1

STRIP,19.05mm ID x 25.4mm OD x 45.7mm L

3/4 tube rubber

3шт.

98

CYLINDER ASSY, feeder hydraulic lift, 2 in. bore 15-1/2 in. stroke, refer to this group under feeder hydraulic lift cylinder, also refer to TPM-2 parts merchandiser section F

2шт.

98

CYLINDER ASSY, feeder hydraulic lift, 2 in. bore 17 in. stroke, refer to this group under feeder hydraulic lift cylinder, also refer to TPM-2 parts merchandiser section F

2шт.

99

171946C1

SUPPORT, pressure and return tubes, grain tank

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

1шт.

100

172129C91

ACCUMULATOR ASSY

1шт.

101

172130C91

VALVE

ASSY, accumulator tank

1шт.

102

172131C1

GUARD

accumulator tank valve

1шт.

103

172132C1

BRACKET, accumulator, serial no. 8000 and below

1шт.

103

175699C1

BRACKET, accumulator, serial no. 8001 and above

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.

104

172133C1

SUPPORT

STRAP, accumulator mounting

2шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 znd hex-hd mach

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

4шт.

105

172134C1

ELBOW

, Serial Range: accumulator-valve

1шт.

106

172135C1

VALVE, accumulator line shut-off

1шт.

107

172136C1

HOSE ASSY, accumulator 20 in. long, serial no. 3250 and below, serial no. 8001 and above

1шт.

107

173589C1

HOSE ASSY, accumulator 21 in. long, serial no. 3251 thru 8000

1шт.

108

175760C1

HOSE ASSY.

HOSE, foot-n-inch lower front

1шт.

109

173143C1

SUPPORT ASSY.

SUPPORT, arm hose guide

2шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd hex-hd mach

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

110

(Not used in this application)

1шт.

111

(Not used in this application)

1шт.

112

(Not used in this application)

1шт.

113

(Not used in this application)

1шт.

114

(Not used in this application)

1шт.

115

9410334

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

7/8-14, 37 deg hyd flared 90 deg tube swivel, for use w/automatic platform control serial no. 3250 and below, standard for serial no. 3251 and above

1шт.

116

381170R91

HOSE

ASSY, platform lift upper pressure

1шт.

117

163492C1

RUBBER INSULATOR

STRIP, hydraulic tube clamp 5/8 tube

1шт.

118

702093C1

CABLE TIE

STRAP, tie

1шт.

119

174874C1

ANGLE, accumulator support, serial no. 8000 and below

1шт.

120

171939C1

HOSE ASSY.

HOSE, oil cooler inlet, 18 inch

1шт.

121

175766C1

BRACKET, hydraulic tube support

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 whiz lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.
