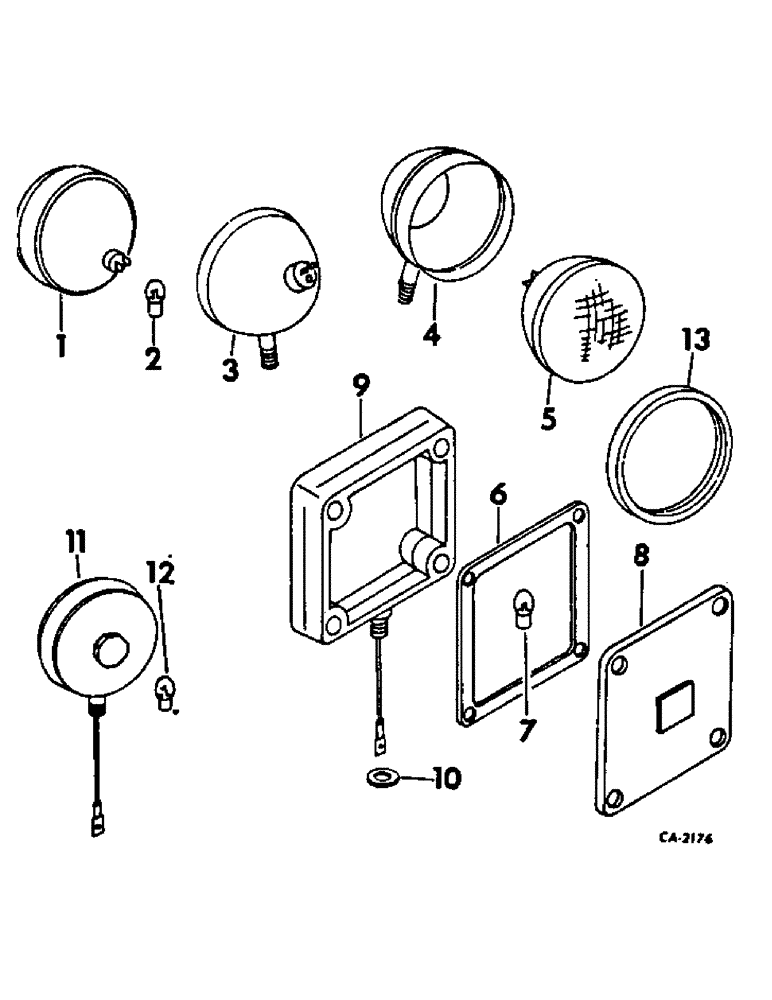

Запчасти Case IH 715 (08-30) - ELECTRICAL, LIGHTS, 12 VOLT (06) - ELECTRICAL

1

371461R91

LENS

UNIT ASSY, sealed beam taillight

1шт.

2

455490

BULB,C-6, #1003, 12V, .94W

taillight no. 1003-15CP

1шт.

3

387729R91

LIGHT

TAILLIGHT ASSY, includes ref. nos. 1, 2 and 13

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

4

376849R91

HEADLIGHT

ASSY, 12-volt, includes ref no. 5

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

366112R1

WASHER

25/32 x 1-1/4 x 11 ga C-Z

2шт.

5

373662R91

LAMP

UNIT ASSY, sealed beam light

2шт.

6

573010R1

GASKET, flasher light

1шт.

7

9417866

BULB,C6, #1156, 12.8V

no. 1156

1шт.

8

537012R1

LENS

warning light, amber

1шт.

8

537011R1

LENS

warning light, red

1шт.

9

536679R91

LIGHT

ASSY, flasher, square lens, serial no. 8000 and below, includes ref nos 6, 7 and 8

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

10

394262R1

WASHER

flasher light

2шт.

11

67538C92

HEADLIGHT

LIGHT ASSY, flasher, round lens, includes ref no 12

2шт.

120371

NUT,1/2"-20, G5

2шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

12

9417866

BULB,C6, #1156, 12.8V

no 1156

2шт.

13

676078R1

RETAINER

shockproof light

1шт.
