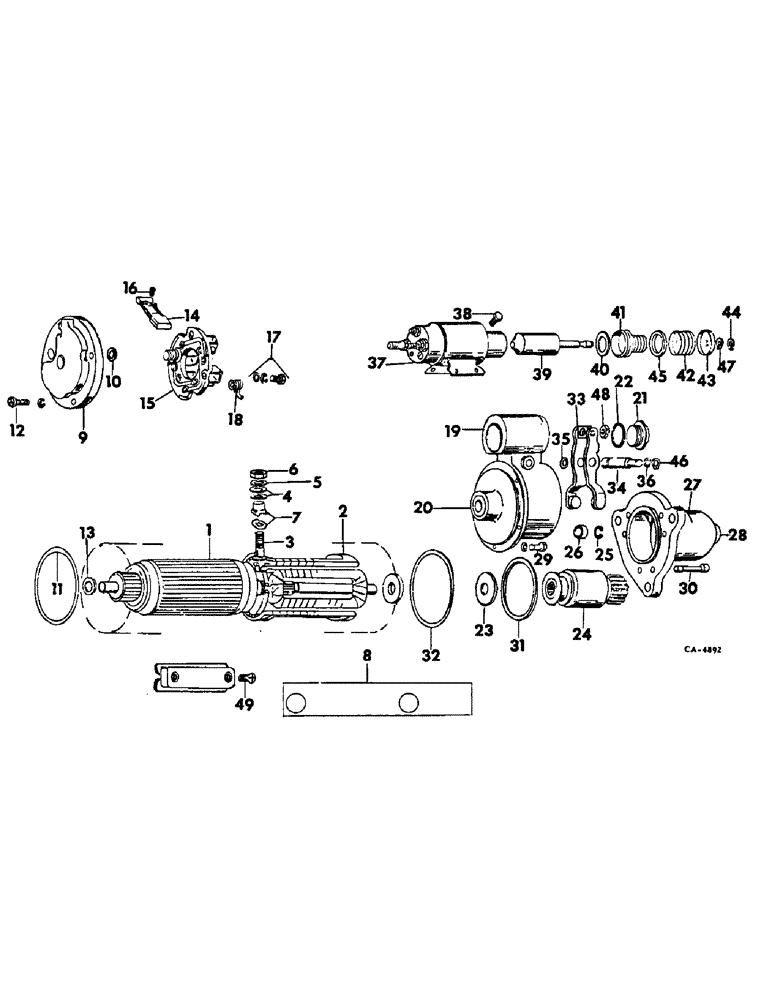

Запчасти Case IH 715 (08-27) - ELECTRICAL, CRANKING MOTOR, DELCO REMY, DIESEL ENGINE COMBINE W/ SER. NO. 13615 & ABOVE (06) - ELECTRICAL

1113441

MOTOR ASSY, cranking, 107583C91, 12 volt

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

SCREW, 3/8-16 x 1-1/8 C-Z hex-hd cap

3шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

120381

WASHER

3/8 C-Z lock

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

1

1851961

ARMATURE

1шт.

2

1852026

COIL

field, 4 coils

1шт.

3

1950561

STUD

coil terminal

1шт.

4

1922457

WASHER

coil terminal stud insulated

2шт.

5

1914647

WASHER

coil terminal stud plain

1шт.

6

9414418

NUT

coil terminal stud

1шт.

7

1965472

PACKAGE

coil terminal stud insulating bushing

1шт.

8

1914873

INSULATOR

INSULATION, field coil

2шт.

9

830738

FRAME

commutator end

1шт.

1916439

WICK

commutator end frame oil

1шт.

10

800139

BUSHING

commutator end frame

1шт.

11

1916277

O-RING, commutator end frame

1шт.

12

1924869

SCREW

commutator end frame

4шт.

13

1914842

WASHER

commutator end frame wear

1шт.

14

1906987

BRUSH

commutator

4шт.

15

1950546

HOLDER

commutator brush insulated

2шт.

15

1940477

HOLDER

commutator brush grounded

2шт.

16

1959514

SCREW

commutator brush holder

4шт.

17

1877164

COMMUTATOR BRUSH

PACKAGE, commutator brush support

2шт.

18

1945620

SPRING

commutator brush

2шт.

19

1851986

HOUSING

brake lever

1шт.

1916439

WICK

brake lever housing oil

1шт.

20

1933999

BUSHING

brake lever housing

1шт.

21

1945356

PLUG

brake lever housing inspection

1шт.

22

1964857

GASKET

brake lever housing inspection plug

1шт.

1851960

O-RING

brake lever housing

1шт.

23

NLS

NO LONGER SERVICED

brake lever housing

1шт.

24

1877355

DRIVE

clutch motor

1шт.

Ref #24 - Subbed to 1941157, (retired part) now subs to A47178 11/16/95

1шт.

25

1928022

SNAP RING

RING, pinion stop retainer

1шт.

26

1928021

COLLAR

pinion stop

1шт.

27

830711

HOUSING

drive end

1шт.

1916439

WICK

drive end housing oil

1шт.

28

1955994

BUSHING

drive end housing

1шт.

29

1914869

SCREW

lever housing

5шт.

30

1870513

SCREW

drive end housing

6шт.

31

1956012

GASKET, drive end housing

1шт.

32

1916272

O-RING

drive end housing seal

1шт.

33

1851954

LEVER

shift

1шт.

34

1851953

SHAFT

shift lever

1шт.

35

1914373

O-RING

shift lever shaft 15/64

1шт.

36

1921805

GASKET

O-RING, shift lever shaft 1/2

1шт.

37

1115530

IGNITION SWITCH

SWITCH, solenoid

1шт.

38

1930611

LOCK SCREW

SCREW AND LOCKWASHER, solenoid switch

4шт.

39

1851966

PLUNGER

solenoid switch

1шт.

40

1948519

WASHER

solenoid switch spring retainer

1шт.

41

801077

BOOT

solenoid switch plunger

1шт.

42

1948521

SPRING

plunger return

1шт.

43

1948526

RETAINER

plunger spring 13/32 hole

1шт.

44

1942282

PIN

RETAINER, plunger spring

1шт.

45

1948520

RETAINER

plunger spring 1-13/64 hole

1шт.

46

9415235

RING, SNAP

RING, shift lever shaft pin snap

1шт.

47

9415235

RING, SNAP

RING, shift lever spring retainer snap

1шт.

48

1851995

NUT

plunger rod guide adj

1шт.

49

1968396

SCREW

commutator pole shoe

8шт.
