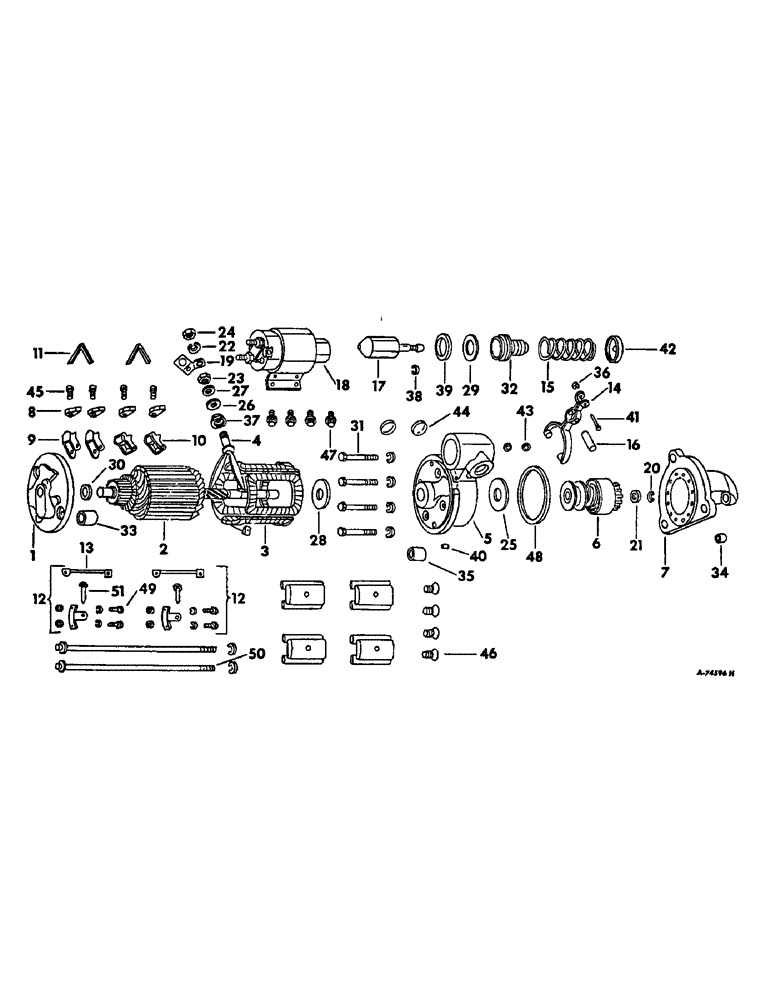

Запчасти Case IH 715 (08-25) - ELECTRICAL, CRANKING MOTOR, DIESEL ENGINE COMBINE W/SERIAL NO. 13614 AND BELOW (06) - ELECTRICAL

1113650

STARTING MOTOR

MOTOR ASSY, cranking, 601699C91, 12 volt

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

SCREW, 3/8-16 x 1-1/8 C-Z hex-hd cap

3шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

120381

WASHER

3/8 C-Z light lock

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

1

1945617

HOLDER

FRAME, w/bushing, 1872678 plug, 125947 & wick 1909654, commutator end

1шт.

2

1948999

ARMATURE

1шт.

3

1946386

COIL ASSY.

COIL ASSY, field, 4 coils

1шт.

1913534

FOAM INSULATION

INSULATION, field coil

2шт.

4

1945626

STUD, terminal

1шт.

5

1942241

HOUSING

lever, composed of (1) bushing 1933999, (2) plug 9411375, (1) plug 9419572, (1) wick 1936465

1шт.

6

1941157

MOTOR HOUSING

MOTOR ASSY, drive

1шт.

7

1949406

HOUSING

W/BUSHINGS, 1943628 plug, 125947 & wick, 1090654, drive

1шт.

8

1906987

BRUSH

4шт.

9

1926617

BRUSH HOLDER

HOLDER, brush ground

2шт.

10

1950546

HOLDER

brush insulated

2шт.

11

1945620

SPRING

brush

2шт.

12

1945923

PACKAGE

brush support

2шт.

13

1930694

CABLE

LEAD, ground

1шт.

14

1942245

LEVER

shift

1шт.

15

1942260

SPRING

lever

1шт.

16

1942255

STUD

SHAFT, lever

1шт.

17

1942250

PLUNGER

1шт.

18

1115510

SOLENOID SWITCH

SWITCH ASSY, solenoid

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

19

1946394

CONNECTOR, ELEC

CONNECTOR, switch

1шт.

20

1928022

SNAP RING

RING, pinion stop retainer

1шт.

21

1928021

COLLAR

pinion stop

1шт.

22

120381

WASHER

terminal stud lock

1шт.

23

805258

NUT

terminal stud, 5/32 in. thick

1шт.

24

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

Terminal stud outer Jam, 3/8"-16, G5

1шт.

25

821453

WASHER

brake

1шт.

26

1857268

INSULATING WASHER

WASHER, insulating terminal stud

1шт.

27

805790

WASHER

terminal stud plain

1шт.

28

1946395

WASHER

space

1шт.

29

1942259

WASHER

retainer spring

1шт.

30

833602

WASHER

commutator end space

1шт.

31

1962546

BOLT (SPREADER)

BOLT, drive housing attaching

4шт.

32

1942257

BOOT

plunger

1шт.

33

1872678

BUSHING

commutator end

1шт.

34

1943628

BUSHING

drive end

1шт.

35

1933999

BUSHING

lever housing

1шт.

36

1936376

RING, lever attaching pin snap

1шт.

37

1931783

INSULATOR

BUSHING, insulating terminal stud

1шт.

38

1867150

OIL RESERVOIR

RING, spring retainer snap

1шт.

39

1942256

RETAINER

spring 1-13/64 in. hole

1шт.

40

809593

PIN

WICK, lever housing

1шт.

41

1942253

PIN

lever attaching

1шт.

42

1942282

PIN

RETAINER, spring, 13/32 in. hole

1шт.

43

1942957

PLUG

1/2 diameter lever housing

2шт.

44

9411375

PLUG

1-3/16 diameter lever housing

2шт.

45

1959514

SCREW

brush attaching

4шт.

46

1913100

SCREW

pole shoe

4шт.

47

1917084

SCREW

switch attaching

1шт.

48

1946012

GASKET

1шт.

49

445639

SCREW, brush support

4шт.

50

1883865

BOLT

commutator end thru

2шт.

51

(Not used in this application)

1шт.
