Запчасти Case IH 715 (08-24) - ELECTRICAL, CRANKING MOTOR, DELCO REMY, CARBURETED ENGINES (06) - ELECTRICAL

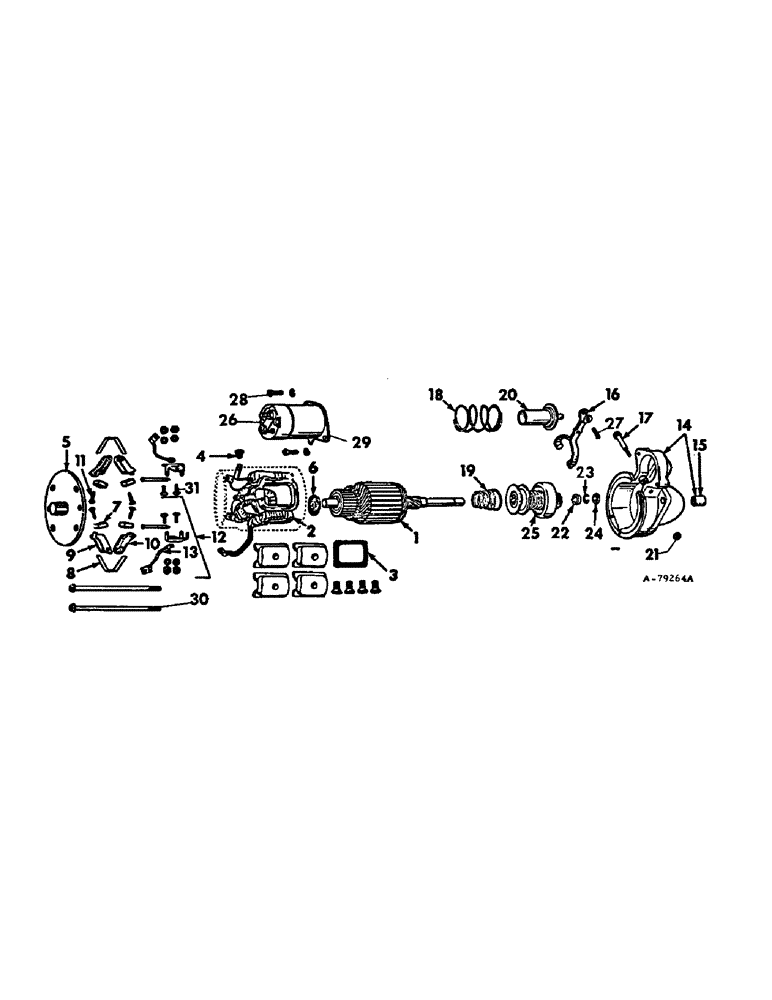

Схема запчастей Case IH 715 - (08-24) - ELECTRICAL, CRANKING MOTOR, DELCO REMY, CARBURETED ENGINES (06) - ELECTRICAL
25
31
3
9
30
5
19
26
16
14
6
10
13
24
2
8
22
17
15
7
12
29
18
23
4
27
1
20
21
11
28

Артикул

Название

Примечание

Количество

1107679

SPARE PART MOTOR ASSY, cranking, 165477R91, 12 volt

1шт.

104193A1R

REMAN-STARTER

Remanufactured Starter

1шт.

104193A1C

CORE-STARTER

Return Number

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 znd hex-hd cap

2шт.

120384

WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

1

1932185

SPARE PART ARMATURE ASSY

1шт.

2

1935128

COIL

COIL ASSY, field, 3 coils

1шт.

2

1935131

COIL

COIL, field-shunt

1шт.

3

1927853

FOAM INSULATION

INSULATION, field coil

1шт.

4

1966391

GROMMET

GROMMET, in field frame

1шт.

5

1926966

COVER

FRAME, commutator end

1шт.

6

818265

WASHER

WASHER, commutator end brake

1шт.

7

1906945

COMMUTATOR BRUSH

BRUSH

4шт.

8

1926622

VALVE SPRING

SPRING, brush

2шт.

9

1940477

HOLDER

PACKAGE, ground brush holder

2шт.

10

1926618

HOLDER

HOLDER, brush insulated

2шт.

11

1967747

SCREW

SPARE PART SCREW, insulated brush attaching

2шт.

11

443527

SCREW, ground brush attaching

2шт.

12

1928015

BRACKET

PACKAGE, brush holder support

2шт.

13

1960864

BRUSH, COMMUTATOR

BRUSH LEAD, brush ground

2шт.

14

1955325

SPARE PART HOUSING ASSY, drive end

1шт.

15

1923907

BUSHING

BUSHING, drive end housing

1шт.

16

1951567

LEVER

LEVER, shift

1шт.

17

1814529

STUD, shift lever

1шт.

18

1958679

SPRING

SPRING, plunger return

1шт.

19

1932209

SEAL

SPRING, shift lever assist

1шт.

20

1941113

PLUNGER

PLUNGER, solenoid switch

1шт.

21

9635082

NUT,5/16" - 18, Gr 5

NUT, shift lever stud

1шт.

22

1927849

COLLAR

COLLAR, pinion stop drive end

1шт.

23

1927848

RING

RING, pinion stop retainer drive end

1шт.

24

1927850

COLLAR ASSY.

COLLAR, drive end spacing

1шт.

25

1937975

DRIVE

DRIVE ASSY, motor

1шт.

1952427

GASKET

GASKET, between drive housing and switch

1шт.

26

65478C1

SWITCH

SWITCH ASSY, solenoid

1шт.

120622

NUT,#8-32

NUT, #8-32

2шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

NUT, Jam, 3/8"-16, G5

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

120381

WASHER

WASHER, 3/8 znd light lock

1шт.

27

445106

SPARE PART

PIN, solenoid switch plunger

1шт.

28

132255

SPARE PART SCREW, solenoid switch Slotted Fil Hd, 1/4"-20 x 1/2"

1шт.

29

1952427

GASKET

GASKET, solenoid switch

1шт.

30

A41342

BOLT

BOLT, drive end housing thru

2шт.

31

NLS

NO LONGER SERVICED

SCREW, comm. brush holder support

1шт.

Выбрано товаров: 43
