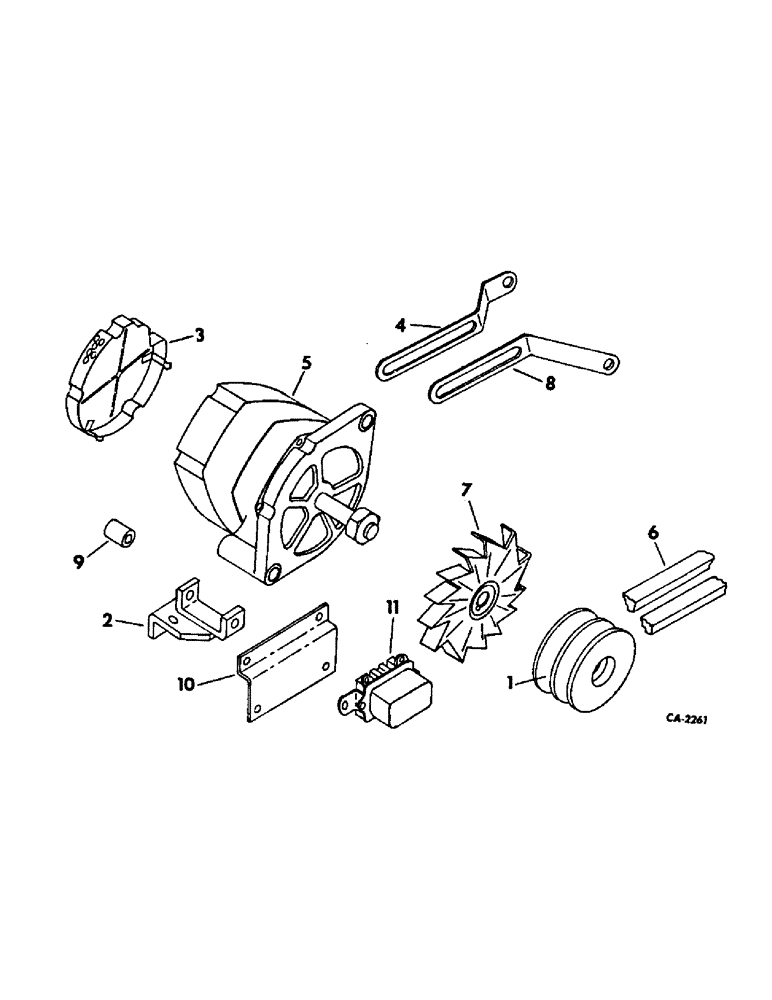

Запчасти Case IH 715 (08-23) - ELECTRICAL, ENGINE BELT DIAGRAM (06) - ELECTRICAL

1

PULLEY, alternator-generator, refer to this group under alternator-generator and mountings

1шт.

2

151523R2

PULLEY

fan and water pump, gasoline engine

1шт.

3

338949R91

DAMPER

AND PULLEY ASSY, diesel engine

1шт.

3

534273R1

DAMPER AND PULLEY ASSY, gasoline engine

1шт.

4

BELTS, alternator-generator, fan and water pump, gasoline engine, refer to this group under alternator-generator and mountings

1шт.

5

PULLEY, compressor drive, gasoline engine, refer to group 13 under air conditioner operators cab

1шт.

6

CLUTCH ASSY, compressor, refer to group 13 under air conditioner operators cab

1шт.

7

BELT, compressor drive, refer to group 13 under air conditioner operators cab

1шт.

8

368502R1

PULLEY

water pump, diesel engine

1шт.

9

394013R1

V-BELT,0.50" W x 53.00" L

Alternator-generator & water pump, Diesel engine 0.50" W x 53.00" L

1шт.

10

PULLEY, compressor drive, refer to group 13 under air conditioner operators cab

1шт.

11

671807C1

PULLEY

fan driven, diesel engine

1шт.

12

533739R1

V-BELT,0.60" W x 49.50" L

Fan drive, Diesel 0.60" W x 49.50" L

1шт.
