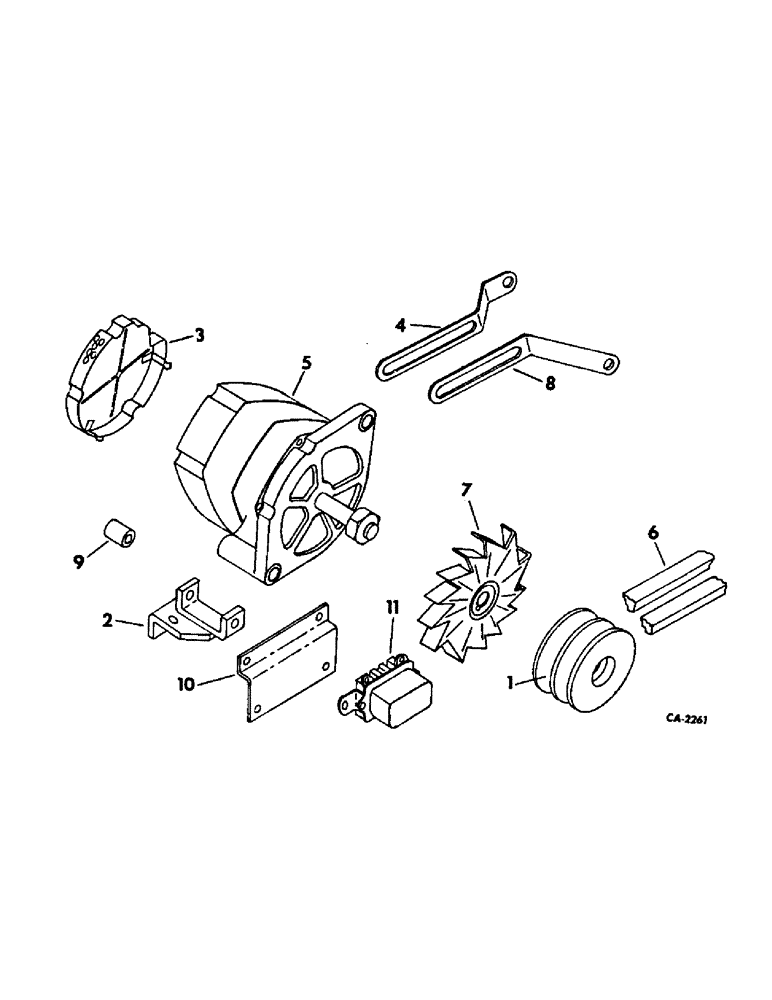

Запчасти Case IH 715 (08-22) - ELECTRICAL, ALTERNATOR-GENERATOR AND MOUNTINGS (06) - ELECTRICAL

1

969638R2

PULLEY

alternator-generator, gasoline

1шт.

1

1961291

PULLEY

alt-gen, 393821R1, diesel

1шт.

2

393774R22

BRACKET

ASSY, alternator mounting, diesel

1шт.

180080

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5, Full Thd

SCREW, 5/16 x 1-1/8 hex-hd cap

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8 x 1-1/4 C-Z hex-hd cap

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

495-11053

WASHER,1/2", SAE

.531 x 1.062 x .074 znd flat

1шт.

3

1851153

SHIELD

COVER ASSY, alternator, 548238R1

1шт.

4

534897R1

BRACE, alternator-generator, diesel

1шт.

120376

NUT,5/16"-18, G5

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 C-Z hex-hd cap

1шт.

180080

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5, Full Thd

SCREW, 5/16 x 1-1/8 hex-hd cap

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

21496R1

WASHER

11/32 x 3/4 x 11 ga flt.

1шт.

5

ALTERNATOR-GENERATOR, refer to alternator-generator this group for unit listing

1шт.

225-14112

NUT,#12-24

12-24 hex mach screw

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8 hex-slt-lock

2шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

SCREW, 3/8 x 3 C-Z hex-hd cap

1шт.

121744

ANGLE

Washer, Lock, #12

1шт.

6

533824R91

SET OF BELTS

Water pump and generator, Matched set, Gasoline engine

1шт.

7

221425R1

FAN

alternator-generator

1шт.

8

384997R1

BRACE

alternator, gasoline

1шт.

583956R1

BOLT, 7/16 x 2 CDP hex-hd mach

1шт.

271501

SOCKET

NUT, 7/16 hex

1шт.

180080

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5, Full Thd

SCREW, 5/16 x 1-1/8 hex-hd cap

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

21469R1

BOLT,Hex, 1/2" - 13 x 7 3/4", Gr 5

WASHER, 11/32 x 3/4 x 16 ga znd flat

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

9

384993R1

SPACER

alternator-generator mounting bracket, gasoline

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8 hex-lock

1шт.

433115

BOLT,Hex, 3/8" - 16 x 4 1/4", Gr 5

SCREW, 3/8 x 4-1/4 hex-hd cap

1шт.

10

533843R1

BRACKET ASSY, voltage regulator, serial no. 5328 and below

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, 1/4 x 1/2 hex-hd cap

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

11

1119513

VOLTAGE REGULATOR

REGULATOR, voltage, serial no. 5328 and below

1шт.
