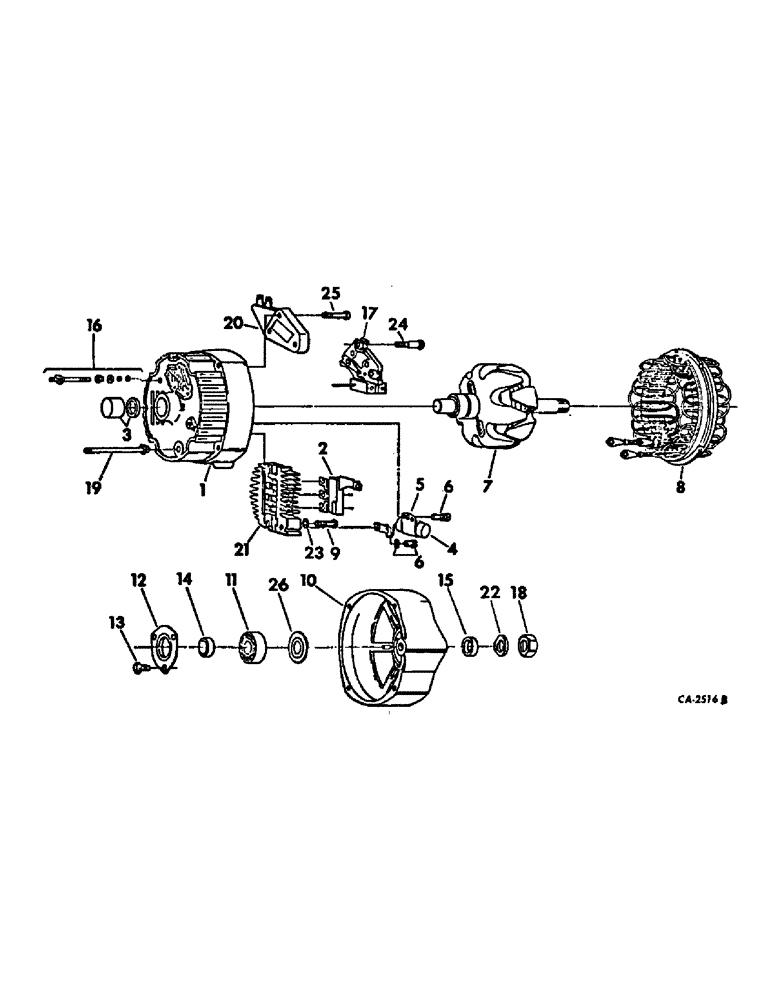

Запчасти Case IH 715 (08-21) - ELECTRICAL, ALTERNATOR GENERATOR, SERIAL NO 5323 AND ABOVE (06) - ELECTRICAL

1100585

ALTERNATOR

ALTERNATOR GENERATOR, 61 amp, 57222C91

1шт.

103800A1R

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

103800A1C

CORE-ALTERNATOR

Return Number, 12 VOLT, 61 AMP Alternator

1шт.

103801A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 61 AMP Alternator

1шт.

103801A1C

CORE-ALTERNATOR

Return Number, 12 VOLT, 61 AMP Alternator

1шт.

103802A1R

REMAN-ALTERNATOR

Reman For New PN 1100585

1шт.

103802A1C

CORE-ALTERNATOR

Return Number

1шт.

103804A1GV

ALTERNATOR

Value, 12V, 72A

1шт.

103804A1R

REMAN-ALTERNATOR

Reman For New PN 1100585

1шт.

103804A1C

CORE-ALTERNATOR

Return Number

1шт.

103805A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 55 ampere

1шт.

103805A1C

CORE-ALTERNATOR

Return Number

1шт.

103806A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 60 ampere

1шт.

103806A1C

CORE-ALTERNATOR

Return Number

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 hex. lock, diesel

1шт.

225-14112

NUT,#12-24

NUT, 1/2-20 C-Z hex. mach screw

1шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

SCREW, 3/8-16 x 3 hex-hd cap, diesel

1шт.

492-11012

LOCK WASHER,#12

Washer, Lock, #12

1шт.

1

1852101

FRAME

FRAME, slip ring end

1шт.

2

1971528

RECTIFIER

DIODE TRIO, negative

1шт.

3

423649C91

BALL BEARING

BEARING, slip ring end

1шт.

4

801824

CAPACITOR

CAPACITOR

1шт.

5

1869573

BRACKET

BRACKET, capacitor

1шт.

6

1851612

SCREW

SCREW, capacitor bracket

2шт.

7

1891598

ROTOR

ROTOR ASSY, replaces 1846657

1шт.

8

1971639

STARTER MOTOR

STATOR ASSY

1шт.

9

1970145

SCREW

SCREW, rectifier bridge attaching

1шт.

10

1970525

FUNNEL

FRAME FRAME, drive end

1шт.

11

539103R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

BEARING, drive end ball

1шт.

12

1971993

PLATE

PLATE, drive end ball bearing retainer

1шт.

13

1965104

HOSE

SCREW, retainer plate attaching

3шт.

14

1963139

COLLAR CLAMP

COLLAR, inside drive end, used w/1846657 rotor only

1шт.

15

1959991

COLLAR

COLLAR, outside drive end

1шт.

16

1846900

PACKAGE

TERMINAL PACKAGE, battery

1шт.

16

1851714

KIT

TERMINAL PACKAGE, relay

1шт.

17

1876873

HOLDER

BRUSH HOLDER AND BRUSH

1шт.

18

1915172

NUT

NUT, drive end shaft

1шт.

19

1956975

BOLT

BOLT, thru

4шт.

20

1116387

VOLTAGE REGULATOR

REGULATOR

1шт.

21

1875627

HOLDER

BRIDGE, positive rectifier

1шт.

22

1941978

WASHER

WASHER, drive end shaft nut lock

1шт.

23

1847933

WASHER

WASHER, rectifier bridge attaching screw spring

1шт.

24

1846864

SCREW

SCREW, insulated brush holder

2шт.

25

1971519

SCREW

SCREW, regulator attaching

1шт.

26

800832

WASHER

WASHER, drive end grease slinger

1шт.
