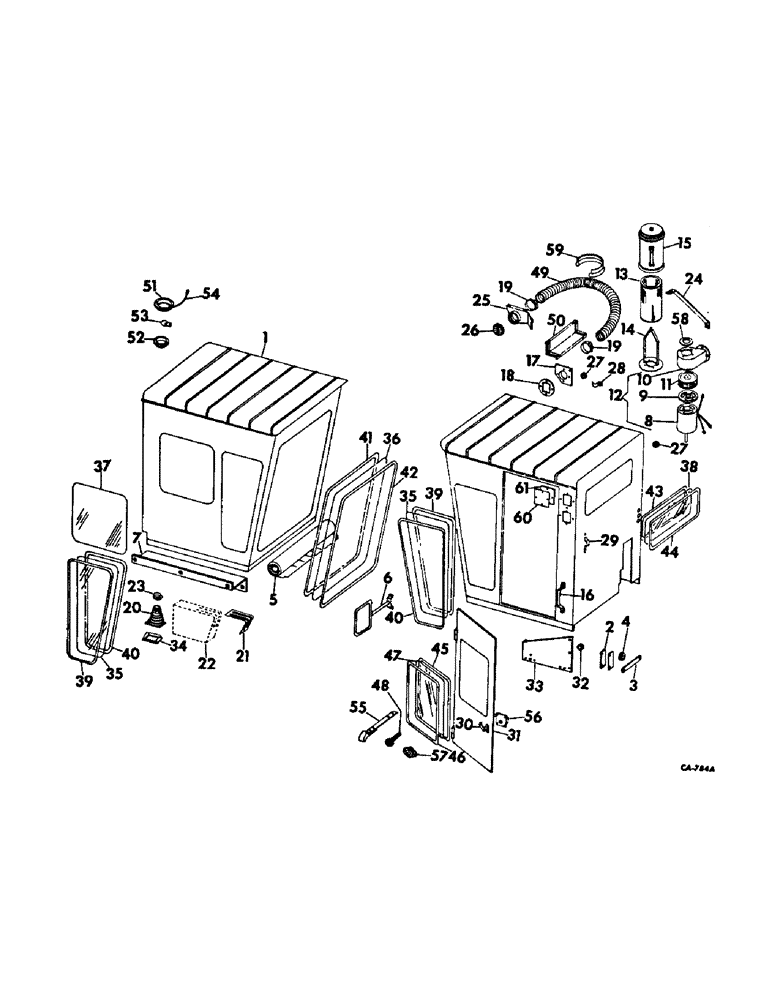

Запчасти Case IH 715 (13-12) - SUPERSTRUCTURE, OPERATORS CAB (05) - SUPERSTRUCTURE

1

CAB ASSY, opeators, order kind 163 code 3370, incl ref. nos. 27 thru 31, 35 thru 38, 48, 51, 56, 60 and 61

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

2шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

1шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

2

634641R1

PAD, operators deck ladder

2шт.

18658R1

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 2

1/4 x 1-3/4 C-Z hex-hd mach

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

21870R1

WASHER

17/64 x 3/4 x 16 ga C-Z

8шт.

3

574613R11

ARM ASSY, ladder rope attaching, includes ref. no. 4

1шт.

21425R1

BOLT, 1/2 x 1-1/4 znd hex-hd

1шт.

121592

SLOTTED NUT,1/2"-13, G5

NUT, 1/2 C-Z slt hex

1шт.

119120

COTTER PIN,3/32" x 1 1/4"

PIN, SPLIT (COTTER), 3/32 x 1 1/4"

1шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga

5шт.

4

552219R91

GROMMET, brass

1шт.

5

150504C91

MAT, floor

1шт.

6

MIRROR ASSY, rear view, refer to rear view mirrror for unit listing.

1шт.

171218C1

ANGLE, operator cab support

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

8

163478C91

MOTOR

ASSY, electric

1шт.

9

163479C1

PLATE, motor mounting

1шт.

10

163477C91

SCROLL ASSY, pressurizer

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

120423

LOCK WASHER,Int Tooth, 0.267" ID x 0.478" OD x 0.028"

WASHER, LOCK, Int Tooth, 1/4"

4шт.

11

167094C1

FAN

WHEEL, blower

1шт.

12

161197C91

PRESSURIZER ASSY, incl ref. nos. 8, 9, 10, 11 and 58

1шт.

13

161299C91

ELEMENT

FILTER ASSY, air intake

1шт.

14

161152C91

ADAPTER ASSY, filter

1шт.

445957

INDICATOR

1/4 x 3/8 slt-pan-hd

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

15

161151C91

COVER

ASSY, filter, includes ref. no. 59

1шт.

86627130

WING NUT,1/4"-20

NUT, 1/4 C-Z wing

1шт.

120392

WASHER,1/4", SAE

.28 x .62 x .06

1шт.

611352R1

WASHER

5/16 x 7/8 x 5/32 rubber

1шт.

16

132637R1

HANDLE

GRAB

1шт.

120376

NUT,5/16"-18, G5

2шт.

86511938

SCREW,Pan, 5/16" - 18 x 3/4"

5/16 x 3/4 znd slt-pan-hd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

17

161155C1

COLLAR, blower

1шт.

18

161158C1

SEAL, air pressurizer

1шт.

19

309693R91

HOSE CLAMP,#60, 3.31/4.25 Type F Worm

CLAMP ASSY, hose

2шт.

20

285225C1

BOOT ASSY, gear shift

1шт.

23993R1

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW, no 10-16 x 1/2 slt-hd-hex-hd tap type AB

4шт.

REF# 20 per hard book is p/n 174114c1. ch 9/17/97

1шт.

21

151898R91

FILLER ASSY, control lever, serial no. 8000 and below

1шт.

22844R1

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW, SELF TAPPING, Hex Hd, #10 x 1/2"

8шт.

22

PANEL ASSY, operators instrument, refer to group 13 under instrument panel, cover and control sheet

1шт.

23

583434R91

CLAMP

gear shift boot, serial no. 8000 and below

1шт.

24

168299C1

BRACE, blower support, serial no. 3250 and below

1шт.

24

175039C1

BRACE, blower support, serial no. 3251 and above

1шт.

18655R1

BOLT,Hex, 1/4"-20 x 1", G2

1/4 x 1 znd hex-hd mach

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

25

161153C91

BRACKET ASSY, air outlet, not w/air conditioner

1шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

5/16 x 3/4 znd hex-hd mach

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

5/16 znd hex.

2шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x 16 ga

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

611352R1

WASHER

5/16 x 7/8 x 5/32 rubber

2шт.

26

161156C91

DEFLECTOR ASSY, air vent, not w/air conditioner

1шт.

27

112734

GROMMET, rubber 3/8" ID x 11/16" x .062"

1шт.

28

362127R1

CLIP

wire

2шт.

29

163500C1

CLEAT, line

1шт.

107377H

LOCK NUT,#10-32, GB

NUT, LOCK, #10-32, GB

2шт.

120757

SCREW, no. 10 x 3/4 slt-fl-hd

2шт.

3479

WASHER,7/32" x 9/16" x .060"

7/32 x 9/16 x 16 ga

2шт.

30

393237R91

HANDLE

ASSY, outside

1шт.

31

937629R91

DOOR ASSY

1шт.

32

128157

GROMMET,3/8" ID x 27/32" x .062", Diag Cut

rubber

1шт.

33

150197C1

SHEET, filler

1шт.

34

174113C2

RETAINER, gear shift boot

1шт.

35

150971C1

GLASS, front side window

2шт.

36

150972C1

GLASS

windshield

1шт.

37

150973C1

GLASS, side sliding window

1шт.

38

166504C1

GLASS, rear window

1шт.

39

394449R1

SEAL, glass moulding 120 in.

2шт.

40

394456R1

STRIP, filler 120 in.

2шт.

41

169149C1

SEAL, glass moulding 178 in.

1шт.

42

169154C1

STRIP, filler 178 in.

1шт.

43

394451R1

SEAL, glass moulding 86 in.

1шт.

44

394458R1

STRIP, filler 86 in.

1шт.

45

937646R1

SEAL, glass moulding 78-3/4 in.

1шт.

46

937642R1

STRIP, filler 78-3/4 in.

1шт.

47

150967C1

GLASS, door window

1шт.

48

168915C1

BOLT, door bumper

1шт.

124824

NUT,Hex, 5/16" - 18

5/16 C-Z hex jam

1шт.

49

174918C1

HOSE, air intake 58 in. long

1шт.

50

161163C11

SHIELD ASSY, air intake

1шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 znd hex-hd mach

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x 16 ga C-Z

2шт.

611352R1

WASHER

5/16 x 7/8 x 5/32 rubber

2шт.

51

163681C91

LIGHT ASSY, cab dome, includes ref nos 52, 53 and 54

1шт.

52

336853C1

LENS, dome light

1шт.

153022

SCREW, 6/32 x 5/8 fillister hd

3шт.

53

NLS

NO LONGER SERVICED

dome light 1141-12 V

1шт.

54

CABLE, dome light 16 ga 9 in.

1шт.

55

173047C1

CATCH, door

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

2шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z stl-truss-hd whiz lock

2шт.

56

937636R91

LATCH

ASSY, door

1шт.

57

583431R91

CONNECTION,ELECTRIC

RECEPTACLE, door holder

1шт.

58

158499R1

GASKET

blower inlet

1шт.

59

161157C1

SEAL

air intake filter 32.5 in.

1шт.

60

174919C1

COVER, blower opening

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

61

174920C1

GASKET, blower opening

1шт.

175724C1

STRIP, seal reinforcement, not illustrated

2шт.

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

SCREW, 1/4-20 x 1/2 slt-truss-hd

8шт.

175723C1

SEAL, lever, not illustrated

2шт.

156188C91

KIT, window pull

1шт.
