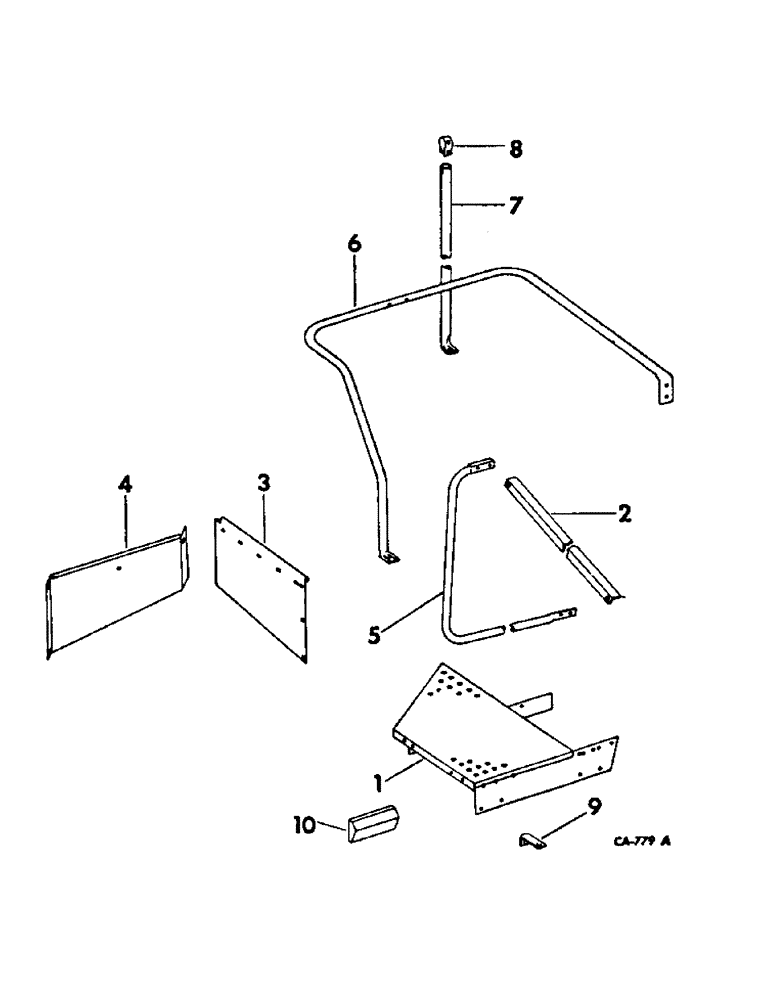

Запчасти Case IH 715 (13-06) - SUPERSTRUCTURE, OPERATORS PLATFORM EXTENSION, NOT OPERATORS CAB, SER. NO. 8000 AND BELOW (05) - SUPERSTRUCTURE

1

628270R91

EXTENSION ASSY, operators platform

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

2

155019C1

ANGLE, operators platform extension support

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

3

939639R2

SHROUD, operators platform left front

1шт.

4

631467R11

SHROUD ASSY, operators platform left

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

5

939641R11

RAIL ASSY, operator platform rear

1шт.

18781R1

BOLT,Hex, 3/8"-16 x 2", G2

3/8 x 2 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

6

939640R1

RAIL, operator platform front

1шт.

7

631421R1

BRACE, operator platform front rail

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

8

569740R1

CLIP, operators platform front rail

1шт.

18657R1

BOLT,Hex, 1/4"-20 x 1-1/2", G2

1/4 x 1-1/2 C-Z hex-hd mach

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

9

158747C1

ANGLE, LH flasher light support

1шт.

10

175311C1

REFLECTOR

red

1шт.
