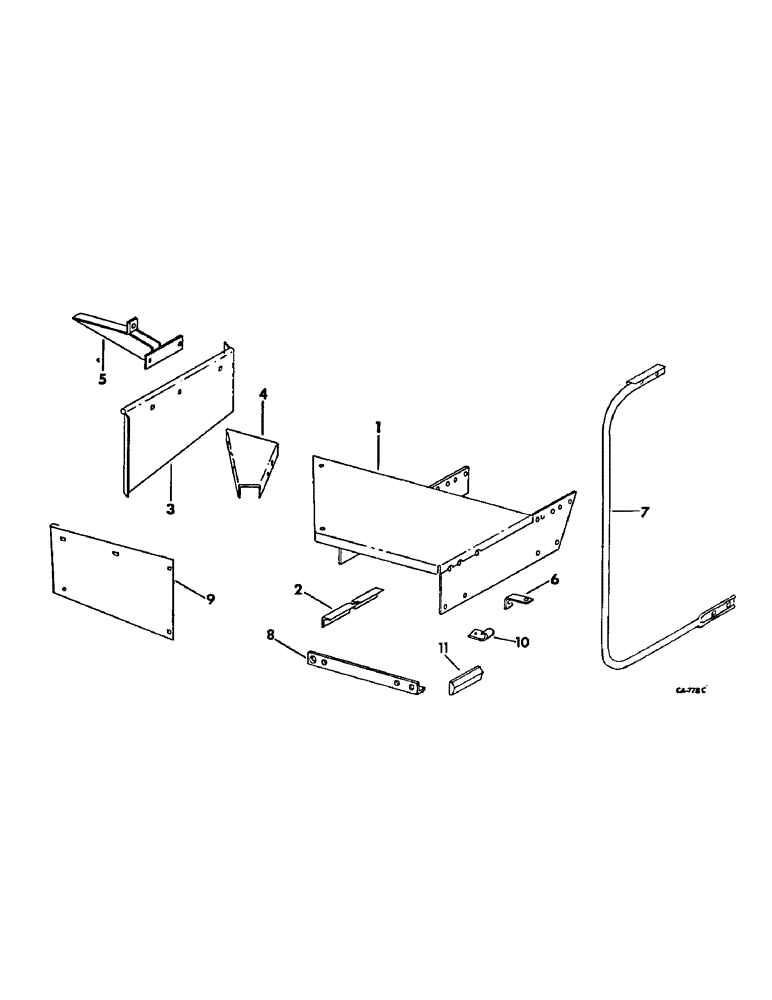

Запчасти Case IH 715 (13-05) - SUPERSTRUCTURE, OPERATORS PLATFORM EXTENSION, FOR OPERATORS CAB (05) - SUPERSTRUCTURE
№
Артикул
Название
Примечание
Количество
1
628270R91
EXTENSION ASSY, operator platform
1шт.
18778R1
SCREW,Hex, 3/8"-16 x 3/4", G2
BOLT, 3/8 x 3/4 znd hex-hd mach
6шт.
120377
NUT,3/8" - 16, Gr 5
6шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
6шт.
2
155019C1
ANGLE, extension support
1шт.
18764R1
HARDWARE,Hex, 5/16"-18 x 3/4", G2
BOLT, 5/16 x 3/4 znd hex-hd mach
1шт.
18494R1
BOLT,Hex, 3/8" - 16 x 1", Gr 2
3/8 x 1 znd hex-hd mach
1шт.
120376
NUT,5/16"-18, G5
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
3
631467R11
SHROUD ASSY, operator polatform LH
1шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 znd sq-nk crg
4шт.
120376
NUT,5/16"-18, G5
4шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
4шт.
4
161422C91
PLATE ASSY, operator platform extension
1шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 znd sq-nk crg
3шт.
120376
NUT,5/16"-18, G5
3шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
3шт.
5
173135C1
BRACKET ASSY, cab door stop
1шт.
18673R1
CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2
BOLT, 5/16 x 1/2 znd sq-nk crg
2шт.
120376
NUT,5/16"-18, G5
3шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
3шт.
6
158747C1
ANGLE, LH flasher light support
1шт.
7
939641R11
RAIL ASSY, platform rear hand
1шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 znd sq-hd crg
2шт.
18781R1
BOLT,Hex, 3/8"-16 x 2", G2
3/8 x 2 znd hex-hd mach
2шт.
120376
NUT,5/16"-18, G5
2шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
8
574488R1
ANGLE, ladder bumper bar
1шт.
9
939639R2
SHROUD, operators platform left
1шт.
10
362127R1
CLIP
2шт.
11
175311C1
REFLECTOR
red
1шт.
Выбрано товаров: 35
