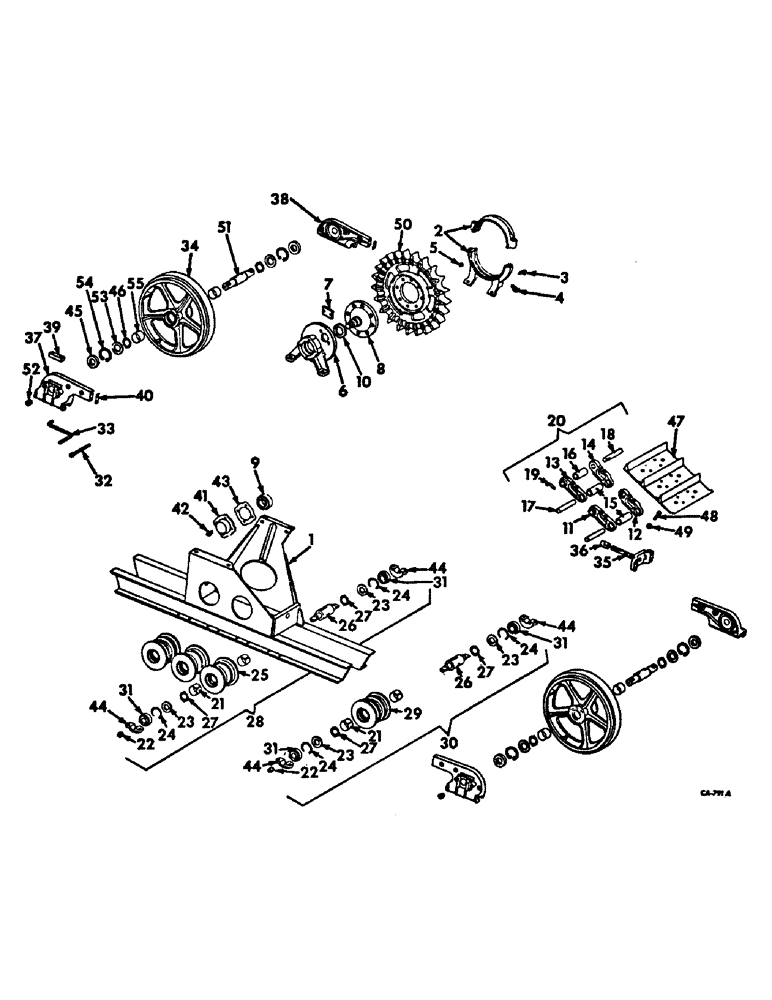

Запчасти Case IH 715 (15-03) - WHEELS AND TRACTION, TRACK, CHAIN AND FRAME, SERIAL NO. 8000 AND BELOW Wheels & Traction

1

589236R91

FRAME ASSY, track left

1шт.

1

589237R91

FRAME ASSY, track right

1шт.

18823R1

BOLT,Hex, 5/8"-11 x 2", G2

5/8 x 2 C-Z hex-hd mach

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex

8шт.

NLS

NO LONGER SERVICED

SCREW, 5/8 x 1-1/2 C-Z hex-hd cap

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

2

173244C91

PIVOT ASSY, track frame

2шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

SCREW, 5/8-11 x 3 C-Z hex-hd cap

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

3

561706R2

SHIM

16шт.

4

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8 90 deg lub

2шт.

5

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, , pln Slotted, Headless, 1/8" NPT

2шт.

6

570881R1

PIVOT, track frame outer

2шт.

7

936580R1

STRAP, track frame out pivot HSG cover

2шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 C-Z hex-hd mach

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

8

570882R11

SHAFT ASSY, track frame outer piv

2шт.

104600H1

NUT, 1-1/2-12 NF slt-hex

2шт.

18485R1

LOCK PIN,7/32" x 2 1/4", Slotted

Pin, 7/32" x 2 1/4", Slotted

2шт.

49068K

WASHER

1-17/32 x 2-1/2 x 3/16 plain

4шт.

9

ST295

BEARING, BALL,50mm ID x 110mm OD x 27mm W

track frame outer piv SH

2шт.

10

565209R91

SEAL, track frame outer piv SH brg oil

4шт.

11

263937R3

LINK

left

32шт.

12

263938R3

LINK

right

32шт.

13

263939R3

LINK, master left

1шт.

14

263940R3

LINK

master right

1шт.

15

621296C1

BUSHING

link

32шт.

16

621297C1

BUSHING

master link

1шт.

17

263943R1

PIN

link

32шт.

18

263944R1

PIN

master link

1шт.

19

19795R1

PIN,1/4" x 1 3/4", Coiled

1шт.

20

172918C91

CHAIN ASSY, track 33 links, includes ref. nos. 11 thru 19

1шт.

21

314934R91

BUSHING, set

1шт.

22

304908R1

PLUG

shaft lubrication

1шт.

23

322542R1

RETAINER

16шт.

24

272637R2

RING, SNAP

SNAP RING

16шт.

25

306139R21

ROLLER, track, single flange

4шт.

26

304904R91

SHAFT

1шт.

27

322546R1

WASHER, thrust

16шт.

28

306134R92

ROLLER ASSY.

ROLLER ASSY, track single flange, includes ref nos 21 thru 27

4шт.

29

306139R21

ROLLER ASSY, track, double flange

4шт.

30

306135R92

ROLLER ASSY.

ROLLER ASSY, track double flange, includes ref nos 21, 22, 23, 24, 26, 27 and 29

4шт.

31

317509R91

SEAL, track roller oil

16шт.

32

304909R91

TUBE

NOZZLE ASSY, track lubricator

1шт.

33

304910R2

SPECIAL WRENCH

WRENCH, socket plug

1шт.

34

272135R12

IDLER ASSY, track front

2шт.

34

263421R12

IDLER ASSY, track rear

2шт.

35

633346R91

TIE ASSY, track idler GDE

4шт.

217216

NUT

1-14NF C-Z hex.

8шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

SCREW, 1/2-13 x 2 C-Z hex-hd cap

8шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

SCREW, 1/2-13 x 2-1/2 C-Z hex-hd cap

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

16шт.

36

554816R1

NUT, track idler guide adj stud

4шт.

37

263422R2

GUIDE, track front idler left

4шт.

39

263427R1

CLAMP

idler SFT

8шт.

180178

BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5

SCREW, 1/2-13 x 1-5/8 C-Z hex-hd cap

16шт.

120384

WASHER,1/2"

LOCK, 1/2"

16шт.

40

60373D

SPACER, idler guide front

4шт.

41

561439R1

CAP, track frame outer pivot

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

42

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

43

561456R1

GASKET, track frame outer pivot cap

2шт.

44

314637R1

BRACKET, track roller SFT

16шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

32шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 C-Z hex-hd cap

32шт.

120384

WASHER,1/2"

LOCK, 1/2"

32шт.

45

338542R91

OIL RESERVOIR

SEAL, track idler oil

8шт.

46

53369D

THRUST WASHER

track idler thrust

8шт.

47

53702DC

SHOE, track

66шт.

48

616182C1

BOLT (SPREADER)

BOLT, track shoe

264шт.

49

273870R1

NUT, track shoe 7/16

264шт.

50

561440R2

SPROCKET, track DVR 23 T

2шт.

51

307037R91

SHAFT

ASSY, track idler

4шт.

52

268996R1

PLUG

track idler

4шт.

53

53362D

RETAINER

WASHER, track idler retainer, serial no. 3250 and below

8шт.

53

322528R1

BRACKET

WASHER, track idler retainer, serial no. 3251 and above

8шт.

54

60573D

RING

track idler snap

8шт.

55

53400DX

BUSHING

ASSY, track idler

2шт.
