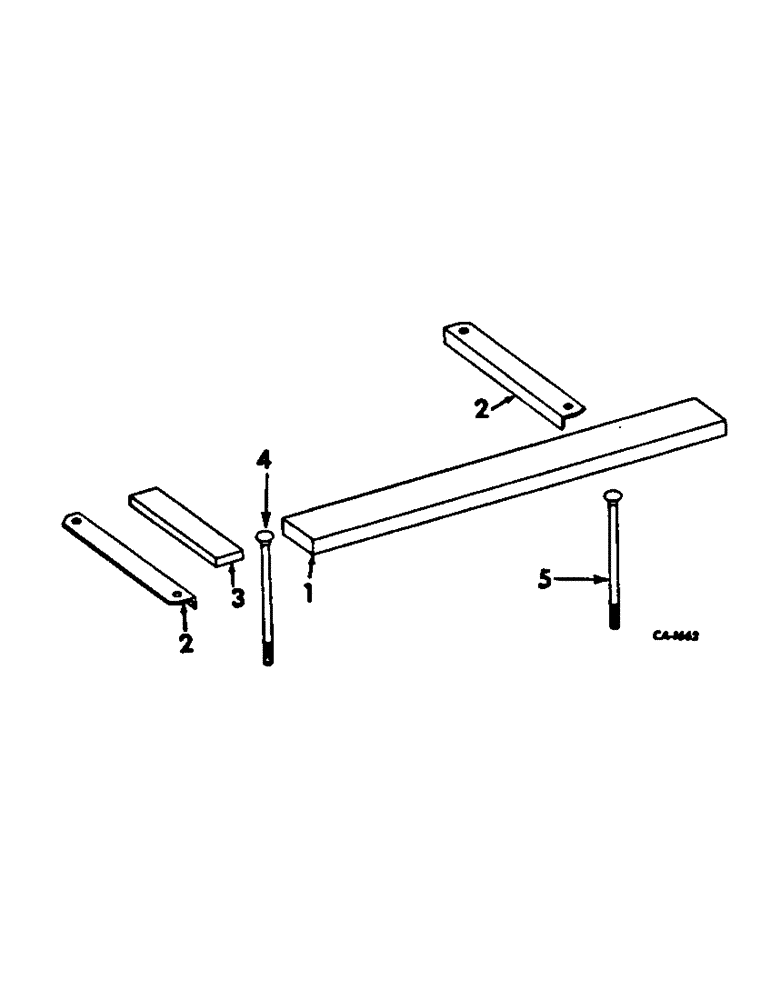

Запчасти Case IH 715 (14-08[1]) - SUSPENSION, GUIDE WHEEL SUPPORT COUNTERWEIGHTS Suspension

1

161240C1

BAR, counterweight

16шт.

2

161244C1

ANGLE, counterweight

2шт.

3

654445R1

FILLER, counterweight

4шт.

4

21283R1

BOLT,5/8" x 8", Gr 1

5/8 x 8 znd sq-nk crg

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 hex.

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

5

21071R1

CARRIAGE BOLT

BOLT, 5/8 x 11 znd sq-nk crg

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 hex.

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.
