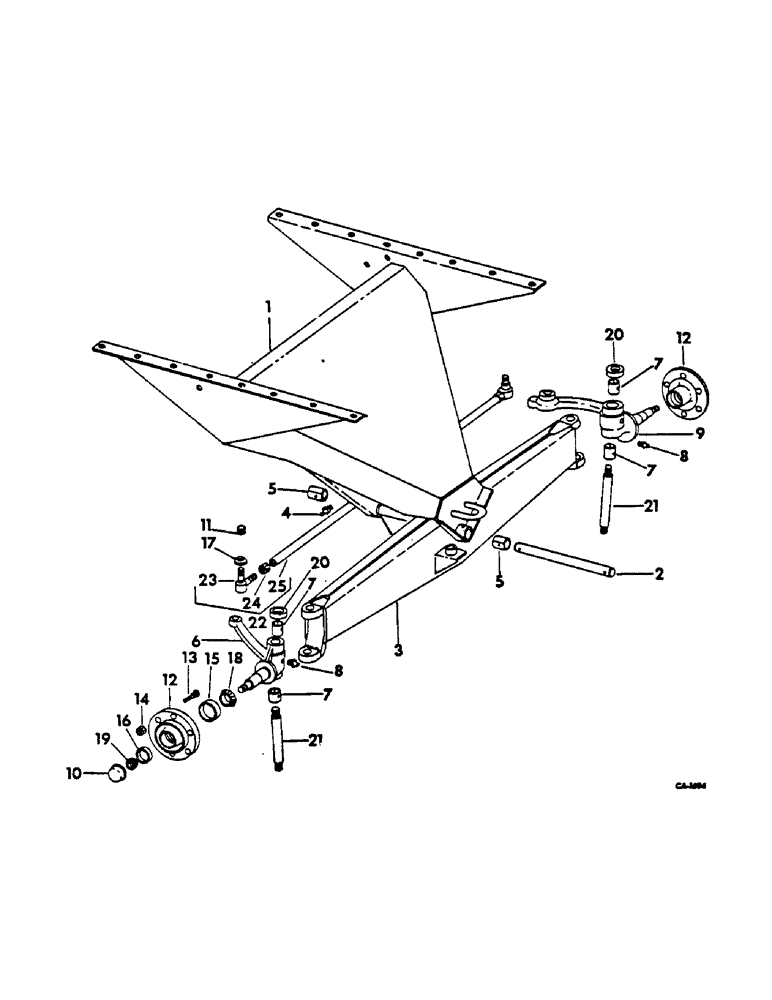

Запчасти Case IH 615 (14-04) - SUSPENSION, GUIDE WHEEL AXLE, SUPPORT AND TIE ROD, FIXED AXLE Suspension

1

936535R92

SUPPORT ASSY, guide wheel axle

1шт.

18822R1

BOLT,Hex, 5/8"-11 x 1 1/2", G2, Full Thd

5/8 x 1-1/2 znd hex-hd mach

14шт.

18458R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2, Full Thd

5/8 x 1-3/4 znd hex-hd mach

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex

16шт.

577247R1

LOCK PIN,3/8" x 2", Slotted

Pin, 3/8" x 2", Slotted

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

2

627935R1

AXLE PIN

PIN, pivot

1шт.

22050R1

WASHER

1-9/32 x 1-3/4 x 16 ga

4шт.

3

151662C91

AXLE ASSY, guide wheel, includes ref no 5

1шт.

4

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 NF str lub

1шт.

5

575789R1

BUSHING

axle pivot tube

2шт.

6

654625R91

KNUCKLE

ASSY, guide wheel left, includes ref no 7

1шт.

69442D

NUT

3/4-16 slt hex jam

1шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga C-Z

1шт.

7

574294R1

BUSHING

spindle

4шт.

8

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

2шт.

9

654627R91

KNUCKLE ASSY, guide wheel right, includes ref no 7

1шт.

69442D

NUT

3/4-16 slt hex jam

1шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga C-Z

1шт.

10

663908R1

CAP

wheel hub

2шт.

11

125258

SLOTTED NUT,9/16"-18, G5

2шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.

21471R1

WASHER

21/32 x 1 x 11 ga

2шт.

12

936538R91

HUB

W/CUP AND BOLTS, wheel, includes ref nos 13, 14, 15 and 16

1шт.

13

453769R2

BOLT,Round, 1/2" - 20 x 1 5/8", Grade 8

guide wheel hub

12шт.

14

453770R1

WHEEL NUT

guide wheel hub bolt

12шт.

15

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Guide wheel hub inner

2шт.

16

371883R1

BEARING CUP

Guide wheel hub outer

2шт.

17

189466R1

BOOT

SEAL, guide wheel tie rod socket

2шт.

18

459913R91

BEARING CONE

BEARING, guide wheel cone inner

2шт.

19

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Guide wheel outer

2шт.

20

73094R91

BEARING ASSY,1.135" ID x 2.094" OD x 0.625"

BEARING, spindle thrust

2шт.

21

587662R1

STUD

PIN, spindle king

2шт.

427643

SLOTTED NUT,7/8"-9, G5

NUT, 7/8-9 C-Z slt hex

4шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

4шт.

21715R1

WASHER

29/32 x 1-3/4 x 11 ga C-Z

4шт.

22

587750R91

ROD ASSY, guide wheel tie, includes ref nos. 23, 24 and 25, optional for 175737C91 tie rod

1шт.

22

175737C91

ROD ASSY, guide wheel tie, includes ref nos. 23, 24 and 25, optional for 587750R91 tie rod

1шт.

23

154823C91

SOCKET

END, tie rod LH, for use w/5877250R91 tie rod

1шт.

23

154824C91

END

tie rod RH, for use w/587750R91 tie rod

1шт.

23

175738C1

END, tie rod LH, for use w/175737C91 tie rod

1шт.

23

175739C1

END, tie rod RH, for use w/175737C91 tie rod

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.

21471R1

WASHER

21/32 x 1 x 11 ga

2шт.

24

366431R1

JAM NUT

LH lock

1шт.

24

366432R1

JAM NUT

NUT, RH lock

1шт.

25

TUBE, tie rod, not serviced separately order 587750R91 or 175737C91 tie rod ref no. 22

1шт.
