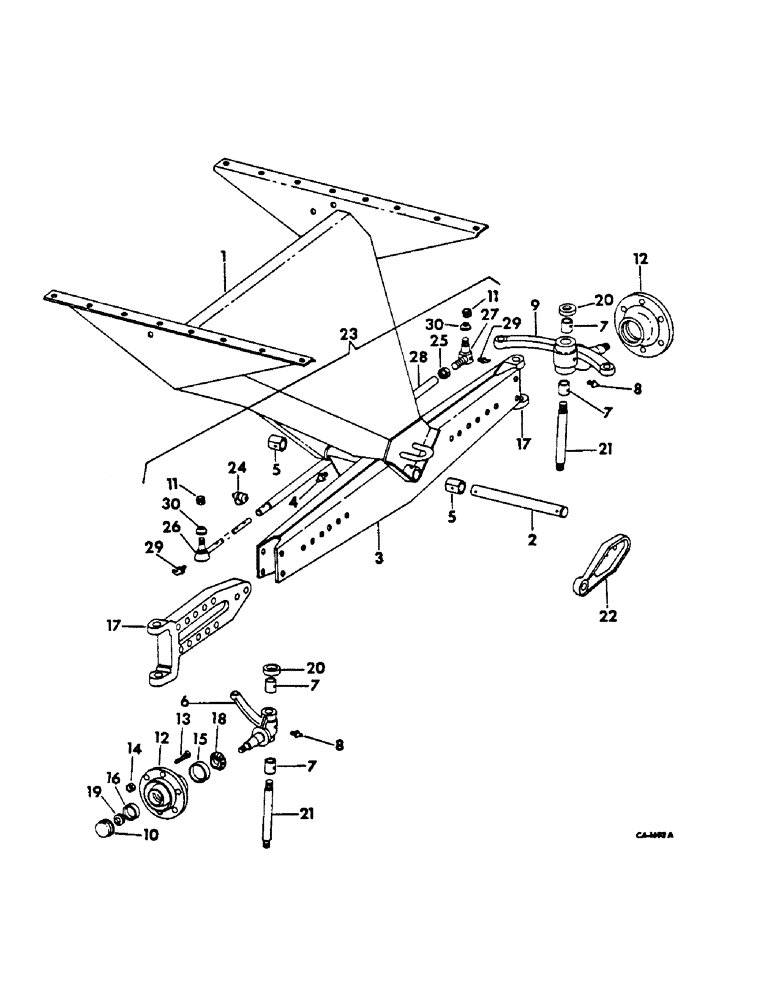

Запчасти Case IH 615 (14-02) - SUSPENSION, GUIDE WHEEL AXLE, SUPPORT AND TIE ROD, ADJUSTABLE Suspension

1

936535R92

SUPPORT ASSY, gud whl axle

1шт.

18822R1

BOLT,Hex, 5/8"-11 x 1 1/2", G2, Full Thd

5/8 x 1-1/2 znd hex-hd mach

14шт.

18458R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2, Full Thd

5/8 x 1-3/4 znd hex-hd mach

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex

16шт.

577247R1

LOCK PIN,3/8" x 2", Slotted

Pin, 3/8" x 2", Slotted

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

2

627935R1

AXLE PIN

PIN, pivot

1шт.

22050R1

WASHER

1-9/32 x 1-3/4 x 16 ga

4шт.

3

154707C91

AXLE ASSY, guide wheel, includes ref no. 5

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 hex.

8шт.

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

SCREW, 5/8 x 1-3/4 hex-hd

1шт.

271730

SWASH PLATE,Hex, 5/8" - 11 x 3 3/4", Gr 5

SCREW, 5/8 x 3-3/4 znd hex-hd cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

21782R1

WASHER

21/32 x 1-1/2 x 16 ga

4шт.

4

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 NF str lub

1шт.

5

575789R1

BUSHING

axle pivot tube

2шт.

6

654625R91

KNUCKLE

ASSY, guide wheel left, includes ref no 7

1шт.

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

1шт.

69442D

NUT

3/4-16 slt hex jam

1шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga C-Z

1шт.

7

574294R1

BUSHING

spindle

4шт.

8

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

2шт.

9

154715C91

KNUCKLE

ASSY, guide wheel right, includes ref no 7

1шт.

69442D

NUT

3/4-16 slt hex jam

1шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga C-Z

1шт.

10

663908R1

CAP

wheel hub

2шт.

11

125258

SLOTTED NUT,9/16"-18, G5

2шт.

12

936538R91

HUB

W/CUP AND BOLTS, wheel, includes ref nos 13, 14, 15 and 16

2шт.

13

453769R2

BOLT,Round, 1/2" - 20 x 1 5/8", Grade 8

guide wheel hub

12шт.

14

453770R1

WHEEL NUT

guide wheel hub bolt

12шт.

15

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Guide wheel hub inner

2шт.

16

371883R1

BEARING CUP

Guide wheel hub outer

2шт.

17

154713C1

YOKE, guide wheel axle

2шт.

18

459913R91

BEARING CONE

BEARING, guide wheel cone inner

2шт.

19

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Guide wheel outer

2шт.

20

73094R91

BEARING ASSY,1.135" ID x 2.094" OD x 0.625"

BEARING, spindle thrust

2шт.

21

587662R1

STUD

PIN, spindle king

2шт.

427643

SLOTTED NUT,7/8"-9, G5

NUT, 7/8-9 C-Z slt hex.

4шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

4шт.

21715R1

WASHER

29/32 x 1-3/4 x 11 ga C-Z

4шт.

22

154714C2

ANCHOR, steering cyl

1шт.

23

154704R91

ROD ASSY, guide wheel tie, includes ref nos. 24, 25, 26, 27, 28 and 29, optional for 175741C91 tie rod

1шт.

23

175741C91

ROD ASSY, guide wheel tie, includes ref nos. 24, 25 and 26, optional for 154704C91 tie rod

1шт.

24

359986R1

CLAMP

tie rod, for use w/154704C91 tie rod

1шт.

25-118

NUT,1/2"-20, G5

1/2-20 hex

1шт.

181435

BOLT,Hex, 1/2" - 20 x 2", Gr 5

SCREW, 1/2-20 x 2 hex-hd cap

1шт.

24

375620R1

CLAMP

tie rod, for use w/175741C91 tie rod

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

SCREW, 1/2 x 2-1/2 hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

495-11053

WASHER,1/2", SAE

.53 x 1.06 x .10

1шт.

25

374062R1

JAM NUT

NUT, tie rod socket

1шт.

26

155232C91

END

tie rod sliding, round, for use w/154704C91 tie rod

1шт.

26

175743C1

END, tie rod sliding, hex, for use w/175741C91 tie rod

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

27

155234C91

SOCKET

END, tie rod, thread round, for use w/154704C91 tie rod

1шт.

27

175742C1

END, tie rod, threaded hex, for use w/175741C91 tie rod

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

28

TUBE, tie rod, not serviced separately order 154704C91 or 175741C91 tie rod assy ref no. 23

1шт.

29

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

2шт.

30

189466R1

BOOT

SEAL, guide wheel tie rod socket

2шт.
