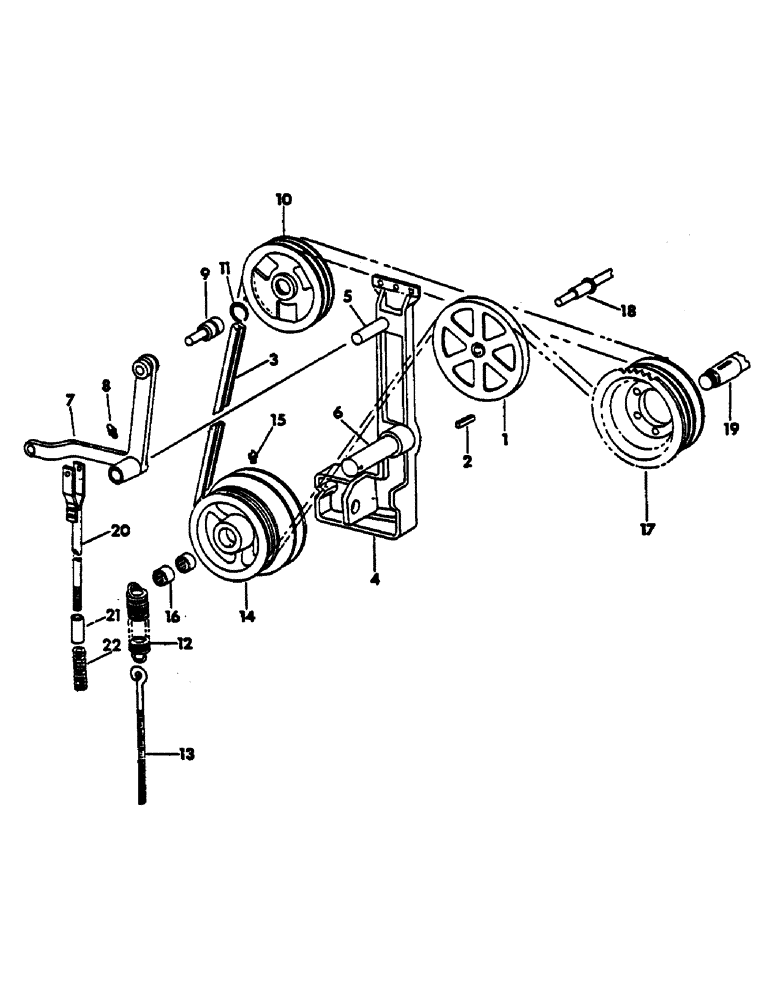

Запчасти Case IH 615 (22-04) - STRAW RACKS, STRAW RACK DRIVE Straw Walkers

171815C91

PARTS ACCESSORY, straw rack drive slow speed, includes ref. nos. 1 & 3

1шт.

1

171647C1

PULLEY, straw rack driven 17 in. OD, not edible bean

1шт.

1

171581C1

PULLEY, straw rack driven 200 RPM, 19 in. OD, for edible bean, parts accessory, serial number 12000 and below

1шт.

2

Q3932

KEY,Gib, 5/16" Sq x 2"

5/16 x 2 sq-hd tapered gib

1шт.

3

170948C1

BELT,0.490" W x 116.29" L, 2 Ribs

V-BELT , Straw rack and fan jackshaft drive, Not edible bean 0.490" W x 116.29" L, 2 Ribs

1шт.

3

171338C1

BELT

straw rack & fan jackshaft drive, edible bean and slow speed, parts accessory, serial number 12000 and below

1шт.

4

170946C21

SUPPORT

W/SHAFT, straw rack drive idler, includes ref nos 5 and 6

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

2шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 ZND hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

5

170947C1

PIN

straw rack drive tightener arm pivot

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

1шт.

21753R1

WASHER

25/32 x 1-1/2 x 16 ga C-Z

7шт.

6

170949C1

SHAFT, fan drive pulley, for use w/170946C2 support

1шт.

6

174462C1

SHAFT

fan drive pulley, for use w/170946C2 support

1шт.

19471R1

PIN, SPLIT (COTTER),1/4" x 1 3/4"

1шт.

551771R1

WASHER, 1-5/32 x 2-1/2 x 16 ga C-Z

5шт.

7

170950C1

ARM, straw rack drive tightener

1шт.

8

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 NF str lub

1шт.

9

399402R91

BEARING

ASSY, idler puley

1шт.

10

170945C1

PULLEY

straw rack drive idler, 7 in. OD

1шт.

11

559203R1

SNAP RING,#118, 1.260", Int, Spiral

RING, retainer

1шт.

12

510027R1

SPRING

straw rack drive tightener arm, serial no. 2580 and below

1шт.

13

171995C1

BOLT

straw rack tightener arm spring, serial no. 2580 and below

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x 16 ga C-Z

1шт.

14

170951C11

PULLEY

W/BEARINGS, straw rack idler & fan drive, 7 in. and 8 in. OD, includes ref. no. 16

1шт.

15

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 NF str lub

1шт.

16

172480C91

BEARING, NEEDLE,28.575mm ID x 38.113mm OD x 20.62mm

BEARING ASSY, fan drive pulley

2шт.

17

171470C2

SPROCKET ASSY.

PULLEY AND SPROCKET, straw rack drive, 7-1/16 in. OD and 38T

1шт.

18

CRANKSHAFT, straw rack, refer to straw rack unit for listing

1шт.

19

SHAFT, cylinder beater, refer to group 21 under cylinder beater unit for listing

1шт.

20

174906C1

ROD

ASSY, straw rack drive tightener arm spring, serial no. 2581 and above

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16 ZND hex.

2шт.

648002

KNIFE

1/8" x 3/4"

1шт.

22898R1

PIN, 1/8 x 1-1/4 C-Z std-hd

1шт.

188755R1

WASHER

15/32 x 1-1/2 x 11 ga C-Z

1шт.

21

174908C1

SPACER, straw rack drive tightener rod, serial no. 2581 and above

1шт.

22

631018R1

SPRING, straw rack drive tightener arm rod, serial no. 2581 and above

1шт.

22767R1

WASHER

1-3/32 x 1-1/2 x 11 ga C-Z

1шт.
