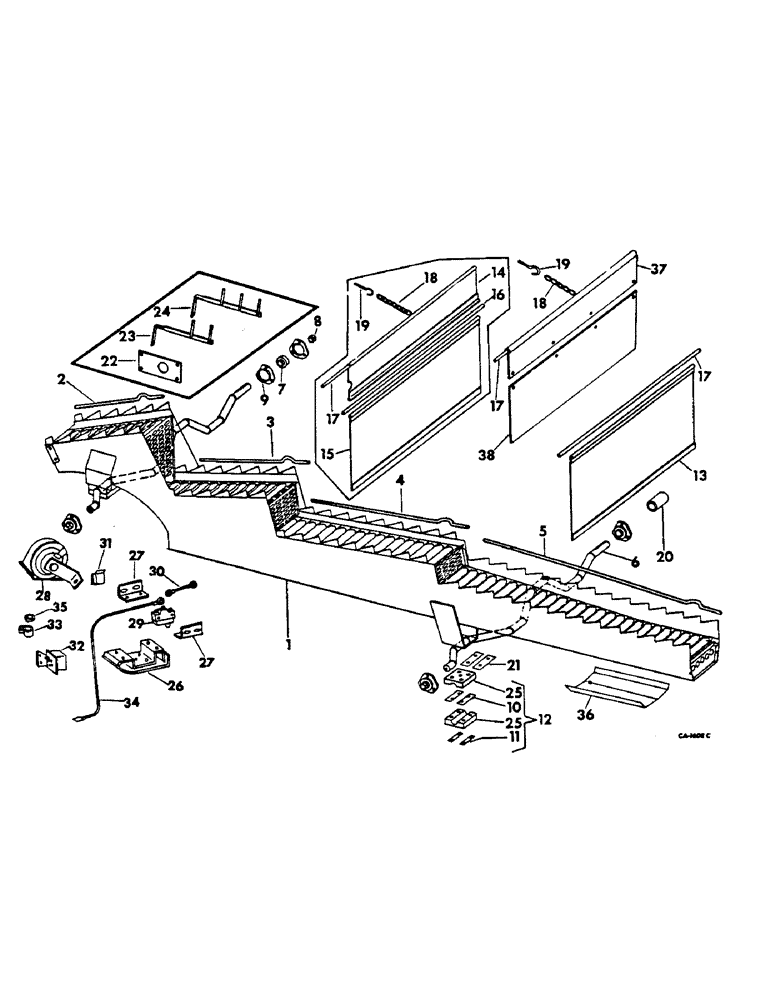

Запчасти Case IH 615 (22-02) - STRAW RACKS Straw Walkers
№
Артикул
Название
Примечание
Количество
174927R91
PARTS ACCESSORY STRAW RACK WARNING HORN, includes ref nos 26 thru 35
1шт.
1
170935C91
RACK
ASSY STRAW, includes ref nos 2, 3, 4 and 5
3шт.
2
937299R1
ELECTRICAL WIRE
WIRE STRAW RACK FRONT RISER
15шт.
3
937300R1
ELECTRICAL WIRE
WIRE STRAW RACK FRONT CENTER RISER
15шт.
4
937301R1
ELECTRICAL WIRE
WIRE STRAW RACK REAR CENTER RISER
15шт.
5
170942C1
ELECTRICAL WIRE
WIRE, rear
15шт.
6
564000R1
CRANKSHAFT STRAW RACK
2шт.
7
455965R91
BALL BEARING,1.0005" ID x 52 mm OD x 15 mm
STRAW RACK CRANK SHAFT BALL
4шт.
8
455102R11
COLLAR
ASSY STRAW RACK CRANK SHAFT BRG LKG
4шт.
127782
SET SCREW,Hex Skt, 1/4"-20 x 1/4", Cup Pt
4шт.
9
571424R1
FLANGE
STRAW RACK CRANK SHAFT BEARING
8шт.
18677R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 2 1/2", Gr 2
BOLT, 5/16 x 2-1/2 sq-nk crg
1шт.
120373
NUT, 5/16-18 sq
1шт.
10
M83629
SHIM,.020" Thk
Straw rack bearing box .020" Thk
12шт.
10
174015C1
GASKET
SHIM, straw rack brg box .052
2шт.
11
M14846
CLAMP
STRAP, straw rack bearing box lock
2шт.
18677R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 2 1/2", Gr 2
BOLT, 5/16 x 2-1/2 C-Z nk
4шт.
120373
NUT, 5/16 C-Z sq
4шт.
12
156206C91
BOX
PACKAGE ASSY, straw rack bearing block, includes ref nos 10 and 11
1шт.
13
171648C1
FLAP, separator rear check
1шт.
14
564385R91
FLAP ASSY, separator front check, serial no. 3290 and below
1шт.
15
564388R21
FLAP
ASSY, separator front check lower, serial no. 3290 and below
1шт.
16
564389R1
ROD, sep front check flap lower hinge, serial no 3290 and below
1шт.
17
UA12470
ROD, separator check flap
2шт.
648002
KNIFE
1/8" x 3/4"
4шт.
18
H59561
CHAIN, coil check flap adjusting
1шт.
217973
COTTER PIN,1/4" x 1 1/4"
Pin, Split (Cotter), 1/4" x 1-1/4"
4шт.
19
H59564
PIN
check flap adjusting chain
1шт.
20
174656R1
SHIELD, strawrack crankshaft end
1шт.
21
556301R1
RETAINER
straw rack rear
6шт.
22
588766R1
PLATE
straw rack riser bolting, optional
1шт.
23
584100R92
RISER
EXTENSION ASSY, straw rack riser front, optional
2шт.
18654R1
BOLT,Hex, 1/4" - 20 x 3/4", Gr 2
1/4 x 3/4 C-Z hex-hd mach
4шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
4шт.
24
584102R91
RISER
EXTENSION ASSY, straw rack riser rear
1шт.
18654R1
BOLT,Hex, 1/4" - 20 x 3/4", Gr 2
1/4 x 3/4 C-Z hex-hd mach
1шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
25
BOX, straw rack crank shaft brg, not serviced separately order package asy 156206C91
2шт.
26
171173C1
BRACKET
ASSY, warning switch
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 whiz lock
4шт.
137185
COTTER PIN,1/8" x 1"
PIN, SPLIT (COTTER), 1/8" x 1"
1шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4 x 1/2 slt-truss-hd
4шт.
619855R1
WASHER
11/32 x 3/4 x 16 ga
2шт.
27
166225C2
SUPPORT
warning switch
2шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 C-Z whiz lock
4шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4 x 1/2 C-Z slt-truss-hd
4шт.
28
166166R91
HORN
ASSY, warning
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z whiz lock
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 C-Z slt-truss-hd
1шт.
29
574649R91
SWITCH
ASSY, micro
1шт.
134530
NUT,Hex, #6 - 32
2шт.
436670
SCREW,Slotted Pan Hd, #6-32 x 1 1/4"
no. 6 x 1-1/4 C-Z slt-pan hd
2шт.
131044
LOCK WASHER
Lock, #6
2шт.
30
167580C91
WIRE ASSY, micro switch ground
1шт.
31
164788C1
CLIP, wire
3шт.
32
24120R91
RELAY ASSY
1шт.
33
362127R1
CLIP
wire
2шт.
34
172036C1
CABLE, warning, Serial Range: switch-relay
1шт.
35
144226
GROMMET,1/4" ID x 5/8" x .062", Diag. Cut
warning switch to connection
1шт.
36
175057C1
PLATE
strawrack bottom rear, for corn
3шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 ZND flange lock
3шт.
37
175560C1
FLAP, separator front check, serial no. 3291 and above
1шт.
18654R1
BOLT,Hex, 1/4" - 20 x 3/4", Gr 2
1/4 x 3/4 ZND hex-hd mach
4шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
4шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
4шт.
21870R1
WASHER
17/64 x 3/4 x 16 ga ZND
4шт.
38
175561C1
FLAP, separator front check, serial no. 3291 and above
1шт.
Выбрано товаров: 68
