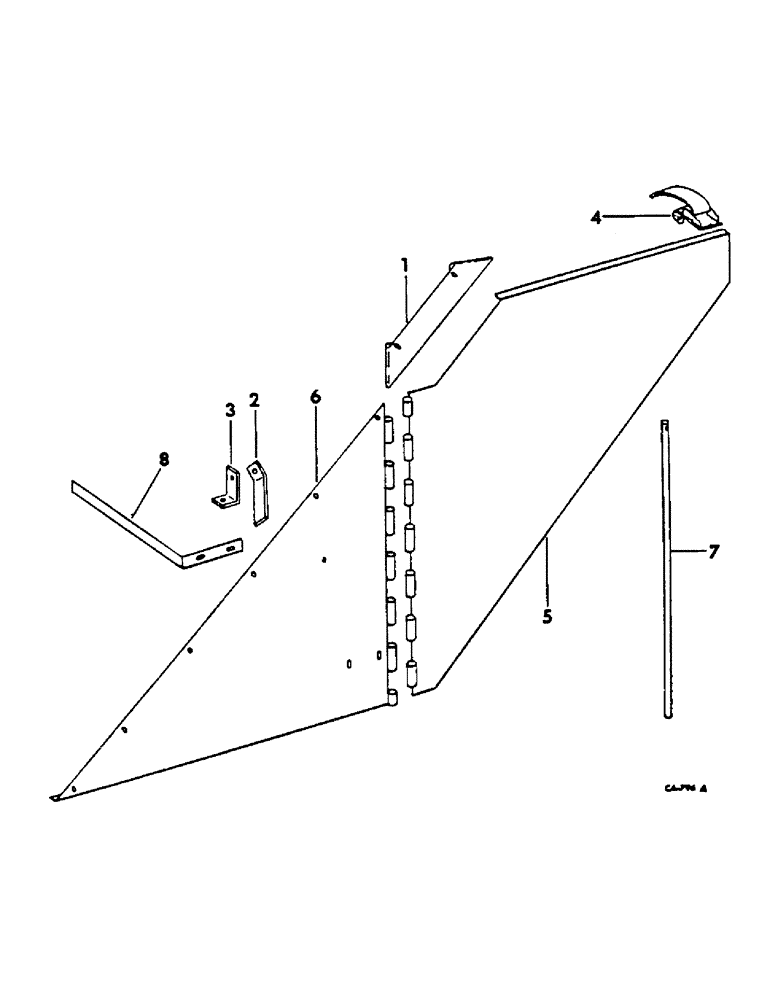

Запчасти Case IH 615 (20-20) - SEPARATOR, SEPARATOR SHIELD RIGHT Separation

1

170984C1

SHIELD, separator right upper

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z truss-hd

1шт.

2

150558C1

BRACE, separator right shield

1шт.

3

150559C1

ANGLE, separator right shield retainer

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

142745

NUT, WING

NUT, 5/16 C-Z wing

1шт.

4

168481C1

LATCH ASSY.

LATCH, separator shield

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

440-11010

SCREW,Phillips Drive, Pan HD, #10 - 24 x 5/8"

no. 10 x 5/8 C-Z slt-pan-hd mach

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

607893R1

WASHER

13/64 x 1/2 x 16 ga C-Z

2шт.

5

171409C1

SHIELD ASSY, separator right front

1шт.

6

938798R91

SHIELD ASSY, separator right rear

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

8шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z truss-hd whiz lock

6шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z truss-hd whiz lock

2шт.

7

938792R1

ROD, separator right shield hinge

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

8

177485C1

SUPPORT, separator right shield

1шт.

18794R1

BOLT,Hex, 7/16" - 14 x 1", Gr 2

7/16 x 1 C-Z hex-hd mach

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex.

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.
