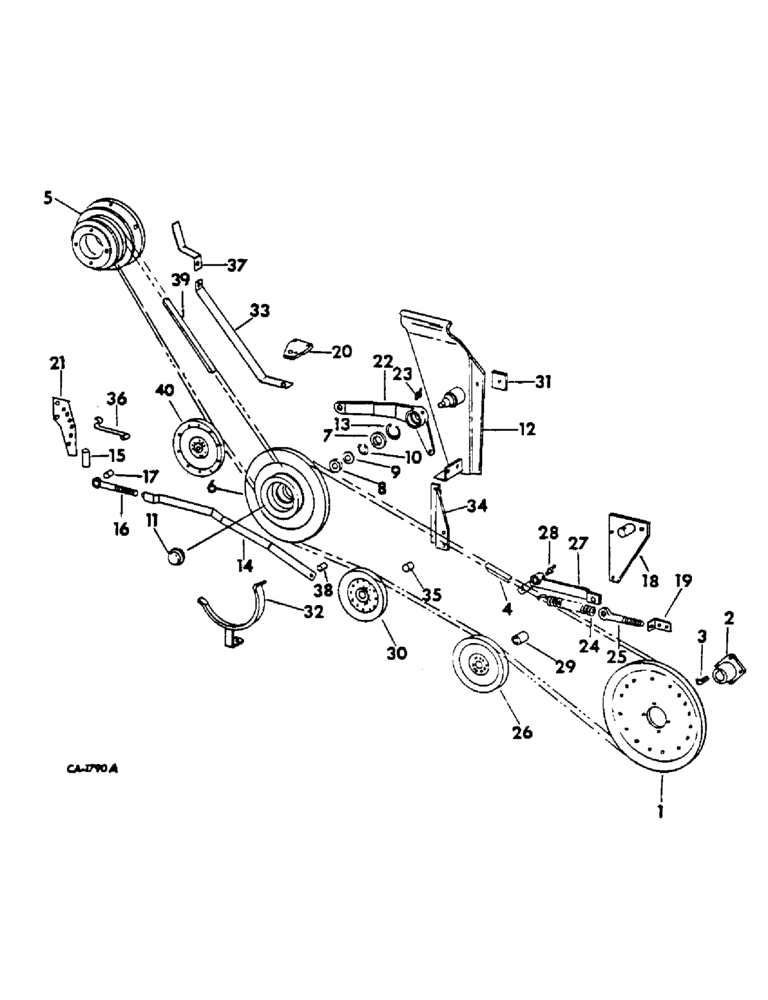

Запчасти Case IH 615 (20-17) - SEPARATOR, STRAW CHOPPER, DRIVE, SERIAL NO. 2581 AND ABOVE Separation

1

171261C11

PULLEY

ASSY, rotor driven, 9-3/4 in. OD

1шт.

2

174643C1

HUB, rotor driven pulley

1шт.

18494

BOLT, 3/8 x 1 hex-hd

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 whiz lock

4шт.

3

Q3952

KEY,Gib, 3/8" Sq x 2 3/4"

3/8 x 2-3/4 gib

1шт.

4

172369C1

BELT,0.879" W x 222.35" L

V-BELT , Rotor drive 0.879" W x 222.35" L

1шт.

5

172922C1

PULLEY, separator and straw rack chopper drive, multiple V for belt drive

1шт.

6

172402C1

PULLEY, jackshaft, 12 in. OD

1шт.

7

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

ASSY, jackshaft pulley

1шт.

8

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING ASSY, jackshaft pulley cone

1шт.

8

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

9

651814R1

BEARING CUP

BEARING, jackshaft pulley cup

1шт.

10

564405R1

RING, SNAP

SNAP RING, jackshaft pulley

1шт.

11

602959R1

PLUG

CAP, jackshaft pulley

1шт.

12

172375C1

SUPPORT ASSY, jackshaft

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

3шт.

18781R1

BOLT,Hex, 3/8"-16 x 2", G2

3/8 x 2 znd hex-hd mach

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 whiz lock

1шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

606546R1

JAM NUT

5/8 C-Z hex. jam

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

1шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

1шт.

13

336000R1

SNAP RING,#175, 1.640", Ext

jackshaft drive spindle

1шт.

14

172370C1

ROD ASSY, jackshaft drive belt clutch control

1шт.

15

173945C1

TUBE, separator drive spring

1шт.

460908R1

WASHER

17/32 x 1-1/2 x 11 ga C-Z

1шт.

21471R1

WASHER

21/32 x 1 x 11 ga C-Z

1шт.

21796R1

WASHER

21/32 x 1 x 16 ga C-Z

1шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

1шт.

16

173560C1

EYEBOLT, adjusting arm

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd hex-hd mach

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 whiz lock

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

2шт.

17

173249C1

SPACER

adjusting arm eyebolt

1шт.

18

172381C1

BRACKET ASSY, rotor drive tightener

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange whiz lock

3шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

3шт.

19

172387C1

CLIP, rotor tightener anchor

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 whiz lock

2шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

2шт.

20

172390C1

PLATE, unloader tube transport anchor

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

21

172394C1

PLATE, front control

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 znd hex-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

22

172367C1

LEVER, jackshaft tightener

1шт.

18619R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 2

5/8 x 2-1/4 znd hex-hd mach

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 znd hex.

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

4шт.

23

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 PTF 65 deg angle lub

1шт.

24

384296R2

VALVE SPRING

SPRING, rotor drive belt tightener

1шт.

25

629417R1

BOLT,3/8" - 16 x 7"

EYEBOLT, rotor drive tightener

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

26

156221C91

PULLEY ASSY.

PULLEY ASSY, rotor drive belt tightener, 8-3/4 in. OD

1шт.

27

169901C1

ARM

rotor drive belt, serial no. 2580 and below

1шт.

21216R1

BOLT, 5/8 x 4-1/4 znd hex-hd mach

1шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8 hex-jam

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

4шт.

27

175283C1

ARM

ASSY, rotor drive tightener, serial no. 2581 and above

1шт.

18826R1

BOLT,Hex, 5/8"-11 x 3", G2

5/8 x 3 hex-hd mach

1шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8 znd hex. jam

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga

3шт.

28

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 straight lub

1шт.

29

554327R1

SPACER,7/8" Tube x 1"

tightener pulley

1шт.

30

574097R91

PULLEY

ASSY, rotor drive belt idler, 7-5/16 in. OD

1шт.

31

936152R1

WASHER

idler mounting bracket

1шт.

32

172383C1

GUIDE ASSY, jackshaft drive lower belt

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 znd hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

4шт.

33

172923C1

GUIDE, jackshaft belt idler

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

34

172392C1

BRACKET, rotor drive idler

1шт.

20299R1

BOLT, 5/8 x 3-3/4 znd hex-hd mach

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 znd hex.

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

5шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

2шт.

35

UA17298

SPACER,7/8" Tube x 1 1/16"

rotor drive idler

2шт.

36

172395C1

GUIDE ASSY, upper front jackshaft belt

1шт.

18655R1

BOLT,Hex, 1/4"-20 x 1", G2

1/4 x 1 znd hex-hd mach

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

21801R1

WASHER

9/32 x 3/4 x 16 ga C-Z

2шт.

37

172398C1

STRAP, upper rear jackshaft belt retainer

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange whiz lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

1шт.

38

165824C1

SPACER, jackshaft drive belt clutch control rod

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd hex-hd mach

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 CDP whiz lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 C-Z slt-truss-hd

1шт.

39

172373C1

BELT,0.879" W x 73.57" L

V-BELT , Jackshaft drive 0.879" W x 73.57" L

1шт.

40

156221C91

PULLEY ASSY.

PULLEY ASSY, jackshaft drive belt tightener, 8-3/4 in. OD

1шт.
