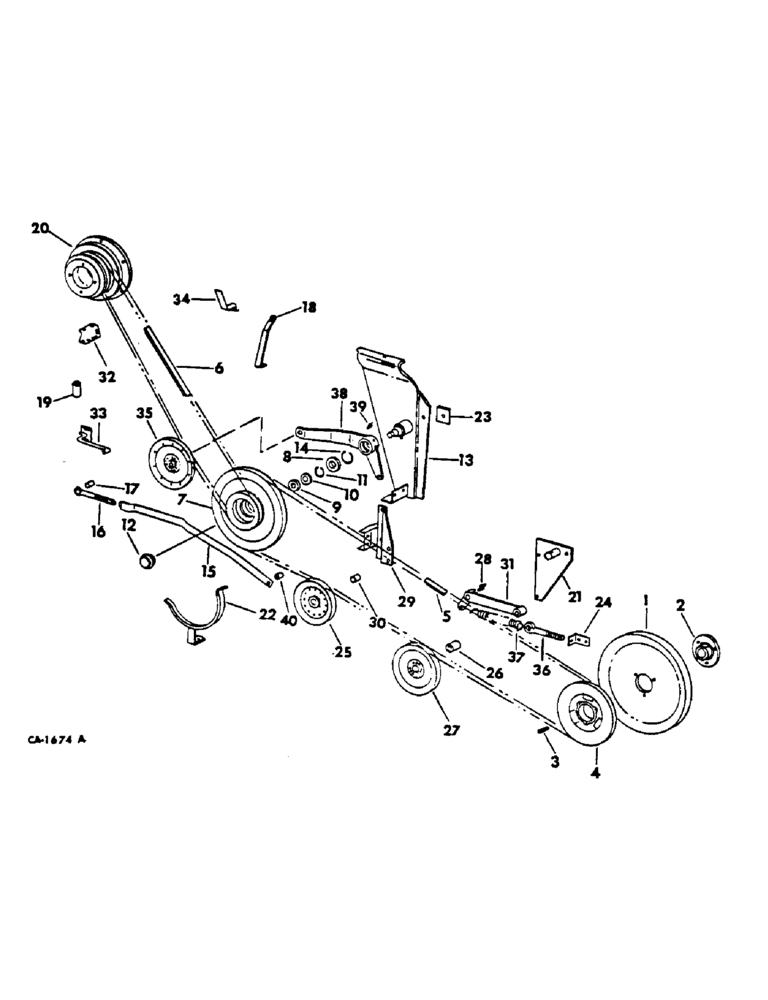

Запчасти Case IH 615 (20-15) - SEPARATOR, STRAW CHOPPER, DRIVE, SERIAL NO. 2580 AND BELOW Separation

1

172366C11

PULLEY, assy, rotor driven, 15.5 in. OD

1шт.

2

151065C1

HUB, rotor driven pulley

1шт.

142680H

BOLT (SPREADER),Hex, 3/8"-16 x 2 1/2", G8

BOLT, Hex, 3/8"-16 x 2 1/2", G8

3шт.

21333R1

NUT,3/8"-16, G8

3/8 znd hex.

3шт.

366862R1

WASHER, 3/8 znd rib lock

3шт.

3

Q3952

KEY,Gib, 3/8" Sq x 2 3/4"

3/8 x 2-3/4 gib

1шт.

4

151066C1

PULLEY, rotor driven, 9.85 in. OD

1шт.

5

172369C1

BELT,0.879" W x 222.35" L

V-BELT , Rotor drive 0.879" W x 222.35" L

1шт.

6

172373C1

BELT,0.879" W x 73.57" L

V-BELT , Jackshaft drive 0.879" W x 73.57" L

1шт.

7

172402C1

PULLEY, jackshaft, 12.2 in. OD

1шт.

8

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

ASSY, jackshaft pulley inner

1шт.

9

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING ASSY, jackshaft pulley outer cone

1шт.

9

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

10

651814R91

BEARING ASSY, jackshaft pulley outer cup

1шт.

11

564405R1

RING, SNAP

RING, jackshaft pulley outer snap

1шт.

12

602959R1

PLUG

CAP, jackshaft pulley

1шт.

13

172375C1

SUPPORT ASSY, jackshaft

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

3шт.

18781R1

BOLT,Hex, 3/8"-16 x 2", G2

3/8 x 2 znd hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

475954R1

NUT

3/8 C-Z whiz lock

1шт.

606546R1

JAM NUT

5/8 C-Z hex. jam

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

1шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

1шт.

14

336000R1

SNAP RING,#175, 1.640", Ext

RING, jackshaft spindle inner snap

1шт.

15

172370C1

ROD ASSY, jackshaft drive belt clutch

1шт.

16

173560C1

BOLT, adjusting arm eye

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd hex-hd mach

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

475954R1

NUT

3/8 C-Z whiz lock

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

1шт.

17

173249C1

SPACER

adjusting arm eyebolt

1шт.

18

172923C1

GUIDE, jackshaft belt rear

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

19

TUBE, separator drive spring, refer to group 13 under separator drive control for unit listing

1шт.

20

172922C1

PULLEY, separator & straw chopper drive, multiple V

1шт.

21

172381C1

BRACKET ASSY, rotor drive tightener

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

3шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

3шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

1шт.

178375R1

WASHER

25/32 x 1-1/4 x 16 ga

1шт.

22

172383C1

GUIDE, ASSY, jksft drive lower belt

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 znd hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

1шт.

23

936152R1

WASHER

idler mounting bracket

1шт.

24

172387C1

CLIP, rotor tightener anchor

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

2шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

2шт.

25

574097R91

PULLEY

ASSY, rotor drive belt idler, 7-5/16 in. OD

1шт.

26

554327R1

SPACER,7/8" Tube x 1"

tightener pulley

1шт.

27

156221C91

PULLEY ASSY.

PULLEY ASSY, rotor drive belt tightener, 8-3/4 in. OD

1шт.

28

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 str lub

1шт.

29

172392C1

BRACKET, rotor drive idler

1шт.

20299R1

BOLT, 5/8 x 3-3/4 hex-hd mach

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 znd hex.

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga

2шт.

30

UA17298

SPACER,7/8" Tube x 1 1/16"

rotor drive idler

1шт.

31

169901C1

ARM

rotor drive belt

1шт.

21216R1

BOLT, 5/8 x 4-1/4 hex-hd mach

1шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8 znd hex. jam

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga

1шт.

32

172394C1

PLATE, front control

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 hex-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

33

172395C1

GUIDE ASSY, upper front jksft belt

1шт.

18655R1

BOLT,Hex, 1/4"-20 x 1", G2

1/4 x 1 znd hex-hd mach

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

21801R1

WASHER

9/32 x 3/4 x 16 ga C-Z

2шт.

34

172398C1

STRAP, upper rear jksft belt retainer, hydrostatic drive combine

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

1шт.

35

156221C91

PULLEY ASSY.

PULLEY ASSY, jackshaft drive belt tightener, 8-3/4 in. OD

1шт.

36

629417R1

BOLT,3/8" - 16 x 7"

EYE-BOLT, rotor drive tightener

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

37

384296R2

VALVE SPRING

SPRING, rotor drive tightener

1шт.

38

172367C1

LEVER, jackshaft tightener

1шт.

18619R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 2

5/8 x 2-1/4 hex-hd mach

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 znd hex.

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga

1шт.

39

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 PTF 65 deg angle lub

1шт.

40

165824C1

SPACER

1шт.
