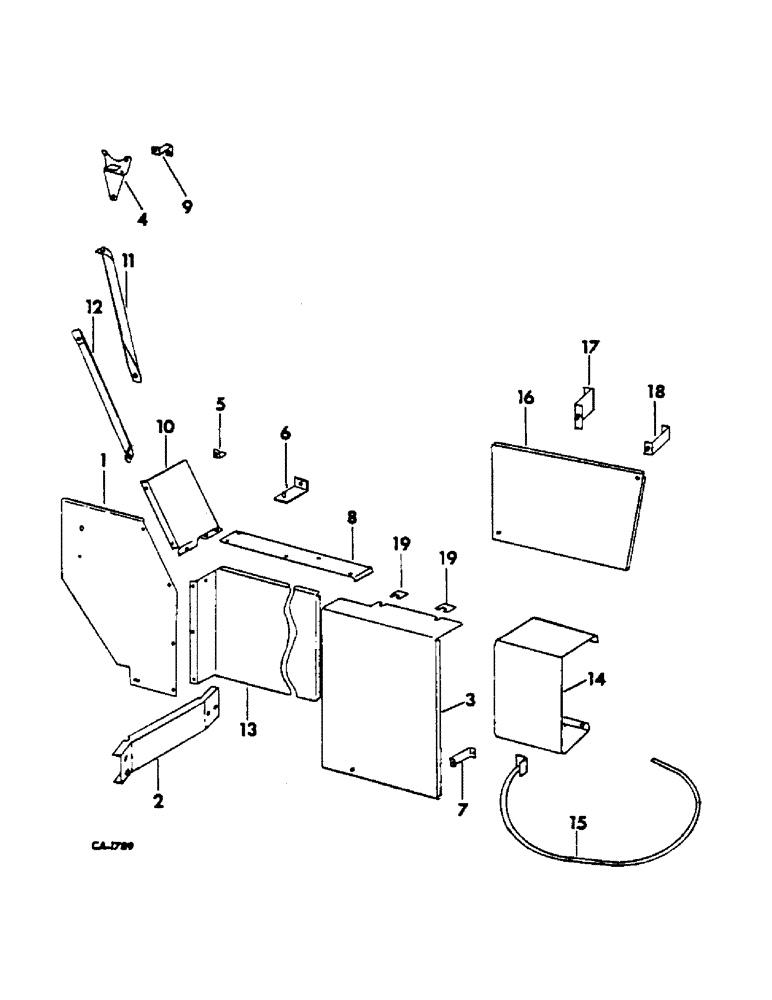

Запчасти Case IH 615 (20-13) - SEPARATOR, STRAW CHOPPER, SHIELDS Separation

1

172374C11

SHIELD ASSY, jackshaft front

1шт.

935736R1

NUT, WING

1шт.

2

172379C1

CHANNEL, separator shield top

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

2шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 znd hex-hd mach

3шт.

120376

NUT,5/16"-18, G5

2шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

3

172380C1

SHIELD, rotor drive idler

1шт.

4

172714C1

SUPPORT ASSY, jackshaft shield front, belt drive

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange whiz lock

3шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

3шт.

178375R1

WASHER

25/32 x 1-1/4 x 16 ga C-Z

4шт.

5

172388C11

STRAP ASSY, jackshaft front shield lower

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

935736R1

NUT, WING

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

6

172389C11

STRAP ASSY, jackshaft shield upper

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

935736R1

NUT, WING

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

7

172391C1

SUPPORT, rotor drive idler shield

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

C-Z flange whiz

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

1шт.

8

172393C1

SHIELD, jackshaft rear upper

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange whiz lock

4шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

4шт.

9

172399C1

STRAP, jackshaft shield front, hydrostatic drive

1шт.

10

172400C1

SHIELD, jackshaft front upper, belt drive

1шт.

10

172401C1

SHIELD, jackshaft front upper, hydrostatic drive, serial number 12000 and below

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

3шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

3шт.

11

172715C1

BRACE, LH shield support, belt drive

1шт.

12

172410C1

BRACE, left shield upper support, hydrostatic drive, serial number 12000 and below

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 znd hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

13

172368C1

SHIELD, jackshaft rear

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange whiz lock

3шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

3шт.

14

174633C1

SHIELD, straw chopper drive rear

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

3шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

3шт.

15

174634C1

SHIELD

ASSY, straw chopper hood

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

4шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

4шт.

16

171276C11

SHIELD ASSY, rotor, serial no. 2580 and below

1шт.

17

171281C11

STRAP ASSY, rotor shield front, serial no. 2580 and below

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

2шт.

935736R1

NUT, WING

NUT, 5/16 znd wing

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

2шт.

18

171282C11

STRAP ASSY, rotor shield rear, serial no. 2580 and below

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

935736R1

NUT, WING

NUT, 5/16 znd wing

1шт.

19

628535R1

SHIM

rotor drive idler shield

1шт.
