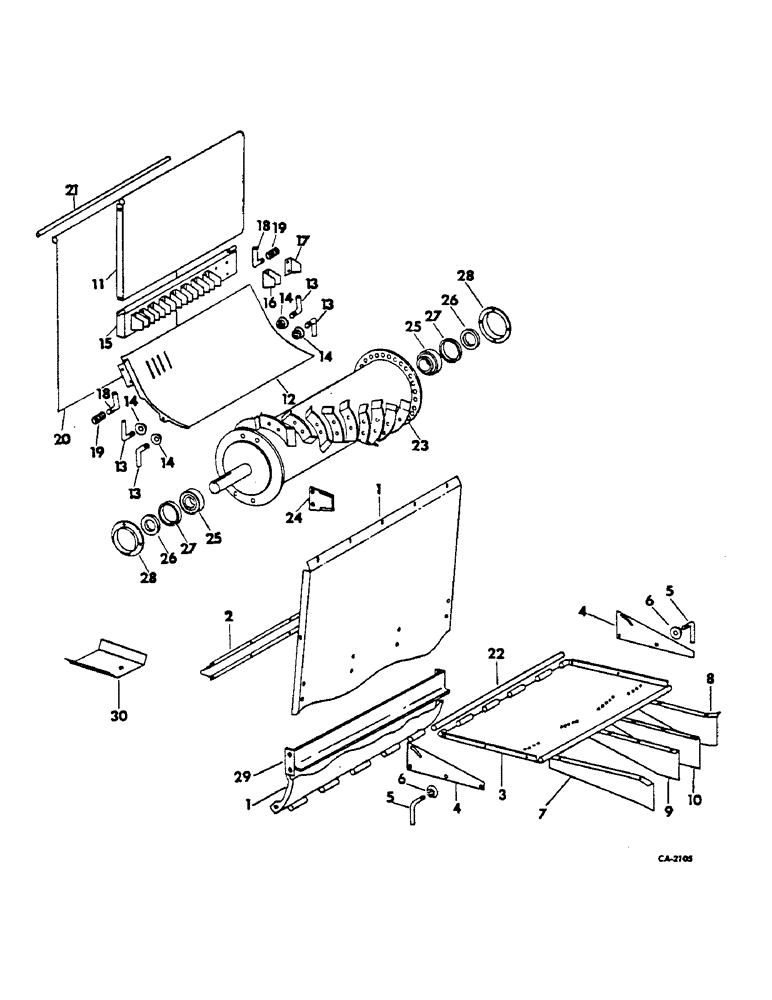

Запчасти Case IH 615 (20-11) - SEPARATOR, STRAW CHOPPER, CUTTING PARTS, SERIAL NO. 2581 AND ABOVE Separation
№
Артикул
Название
Примечание
Количество
1
174711C1
DEFLECTOR, hood rear
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z whiz lock
8шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z slt-truss-hd
8шт.
2
172748C1
EXTENSION, air deflector
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z whiz lock
10шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z slt-truss-hd
10шт.
3
175080C2
SUPPORT, straw deflector
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z whiz lock
4шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z slt-truss-hd
4шт.
4
172514C1
SUPPORT
rear deflector extension
1шт.
5
174971C1
BOLT,Adj, 5/16" - 18 x 1.60", 2"
spreader board adjusting
4шт.
6
161946C1
NUT
deflector support adjusting bolt
4шт.
564266R1
NUT
5/16 weld
4шт.
7
174671C1
DEFLECTOR
outer LH straw
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 C-Z whiz lock
4шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4 x 1/2 C-Z slt-truss-hd
4шт.
8
174672C1
DEFLECTOR
outer RH straw
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 C-Z whiz lock
4шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4 x 1/2 C-Z slt-truss-hd
4шт.
9
174673C1
DEFLECTOR
center LH straw
1шт.
10
174674C1
DEFLECTOR
center RH straw
1шт.
11
171488C1
DEFLECTOR, front upper
1шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 sq-nk crg
4шт.
12872R1
BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd
CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd
2шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 whiz lock
4шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 whiz lock
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
4шт.
12
174713C1
DEFLECTOR ASSY, front lower
1шт.
13
174685C1
BOLT,Adj, 3/8" - 16 x 2.10", 2.50"
front deflector adjusting
4шт.
14
174688C1
NUT
front deflector adjusting bolt
4шт.
15
174715C91
BAR ASSY, chopper concave, includes ref. nos. 16 and 17
1шт.
16
174680C1
BLADE
concave
7шт.
104235
RIVET,FH, 3/16" x 1/2"
14шт.
17
174681C1
BLADE
concave end
1шт.
104235
RIVET,FH, 3/16" x 1/2"
2шт.
18
174689C1
PIN
stationary knife adjusting
2шт.
18607R1
LOCK PIN,1/8" x 3/4", Slotted
PIN, 1/8" x 3/4", Slotted
2шт.
23408R1
WASHER
15/32 x 3/4 x 16 ga C-Z
2шт.
19
352105R1
SPRING
stationary knife adjusting pin
2шт.
20
175029C1
FLAP, separator rear check, for corn
1шт.
21
UA12470
ROD, separator resar check flat, for corn
1шт.
648002
KNIFE
1/8" x 3/4"
2шт.
22
394570R1
ROD, deflector hinge, serial no. 8000 and below
1шт.
22
175929C1
ROD, deflector hinge, serial no. 8001 and above
1шт.
23
174638C91
ROTOR W/BLADES, straw chopper, includes ref no. 24
1шт.
24
174641C1
BLADE
straw chopper rotor, serial no. 8000 and below
16шт.
24
197124C1
PACKAGE
BLADE, service package, serial no. 8001 and above
1шт.
487374R1
BEARING LOCK NUT,Flg, USR, 1/2"-13
1/2 whiz lock
32шт.
180173
BOLT,Hex, 1/2" - 13 x 1", Gr 5
32шт.
25
936133R91
BEARING ASSY,38.1mm ID x 80mm OD x 18mm W
BEARING, rotor shaft ball
2шт.
26
455112R11
COLLAR
W/SET SCREW, locking
2шт.
27
936131R1
RUBBER RING,92.46mm ID x 23.01mm OD x 23.01mm L
bearing
2шт.
28
936130R1
FLANGE
bearing mounting
2шт.
18707R1
CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2
BOLT, 1/2 x 1 sq-nk crg
8шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
10шт.
120384
WASHER,1/2"
LOCK, 1/2"
10шт.
29
175087C1
REINFORCEMENT, hinge, for corn
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z whiz lock
7шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 C-Z slt-truss-hd
7шт.
30
175057C1
PLATE
straw rack bottom rear, for corn
3шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 CDP whiz lock
3шт.
Выбрано товаров: 64
