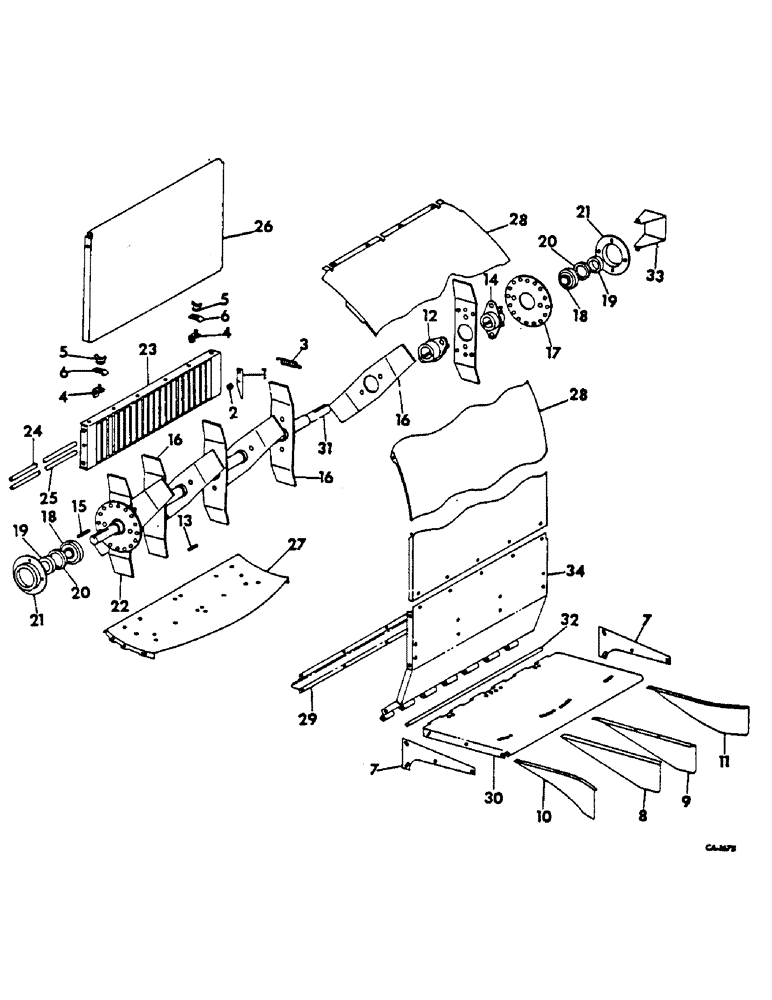

Запчасти Case IH 615 (20-09) - SEPARATOR, STRAW CHOPPER, CUTTING PARTS, SERIAL NO. 2580 AND BELOW Separation

1

936135R1

BLADE

chopper

15шт.

2

567532R1

WASHER

SPACER, chopper blade

15шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 hex-hd mach

15шт.

120376

NUT,5/16"-18, G5

15шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

15шт.

3

622016R1

SPRING

knife blade

2шт.

4

151200C11

BRACKET ASSY, spring rod retainer

2шт.

17425R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 hex-hd mach

2шт.

5

935736R1

NUT, WING

NUT, 5/16 wing

2шт.

6

151199C1

CLAMP, spring rod

2шт.

7

171164C1

SUPPORT, rear deflector

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

6шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

6шт.

8

155131C1

DEFLECTOR

center LH

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

2шт.

938059R1

SCREW, 1/4 x 1/2 C-Z whiz lock

2шт.

9

155132C1

DEFLECTOR, center RH

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

2шт.

938059R1

SCREW, 1/4 x 1/2 whiz lock

2шт.

10

936124R1

DEFLECTOR

outer LH

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

2шт.

938059R1

SCREW, 1/4 x 1/2 C-Z whiz lock

2шт.

11

936125R1

DEFLECTOR

outer RH

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

2шт.

938059R1

SCREW, 1/4 x 1/2 C-Z whiz lock

2шт.

12

171167C1

HUB, rotor inner

6шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 hex-hd mach

12шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

12шт.

120384

WASHER,1/2"

LOCK, 1/2"

12шт.

13

575824R1

KEY,1/4" Sq x 3", Par

1/4 x 3 sq-parallel

6шт.

14

171168C1

HUB, rotor outer

2шт.

18801R1

BOLT,Hex, 7/16" - 14 x 2 3/4", Gr 2

7/16 x 2-3/4 hex-hd mach

8шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 hex-hd mach

4шт.

271501

SOCKET

NUT, 7/16 znd hex.

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

15

126

KEY,1/4" Sq x 2 1/2", Par

1/4 x 2-1/2 sq-parallel

2шт.

16

171169C2

BLADE

inner rotor

6шт.

17

171171C1

FLANGE, outer rotor

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 hex-hd mach

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

8шт.

18

936133R91

BEARING ASSY,38.1mm ID x 80mm OD x 18mm W

BEARING ASSY, rotor shaft ball

2шт.

19

455112R11

COLLAR

ASSY, rotor bearing locking

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8 hex-soc-hd

2шт.

20

936131R1

RUBBER RING,92.46mm ID x 23.01mm OD x 23.01mm L

rotor bearing

2шт.

21

936130R1

FLANGE

bearing mounting

2шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z sq-nk crg

6шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

10шт.

120384

WASHER,1/2"

LOCK, 1/2"

10шт.

22

171170C2

BLADE, outer rotor

2шт.

23

171484C1

PANEL ASSY, knife support

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 hex-hd mach

15шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

12шт.

120376

NUT,5/16"-18, G5

15шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

475954R1

NUT

3/8 C-Z whiz lock

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

15шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

24

171486C1

ROD, knife pivot

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

25

171487C1

ROD, blade spring

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

4шт.

26

171488C1

DEFLECTOR, front upper

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

2шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

27

171489C1

DEFLECTOR ASSY, lower front

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

28

171491C1

DEFLECTOR, rear

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

11шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

14шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

1шт.

29

172748C1

EXTENSION, air deflector

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

17шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

6шт.

30

171492C1

EXTENSION, rear deflector

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

2шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

31

171493C1

SHAFT, rotor

1шт.

32

394570R1

ROD, deflector hinge

1шт.

33

171179C1

COVER, rotor shaft RH

1шт.

34

173048C11

DEFLECTOR ASSY, hood rear lower

1шт.
