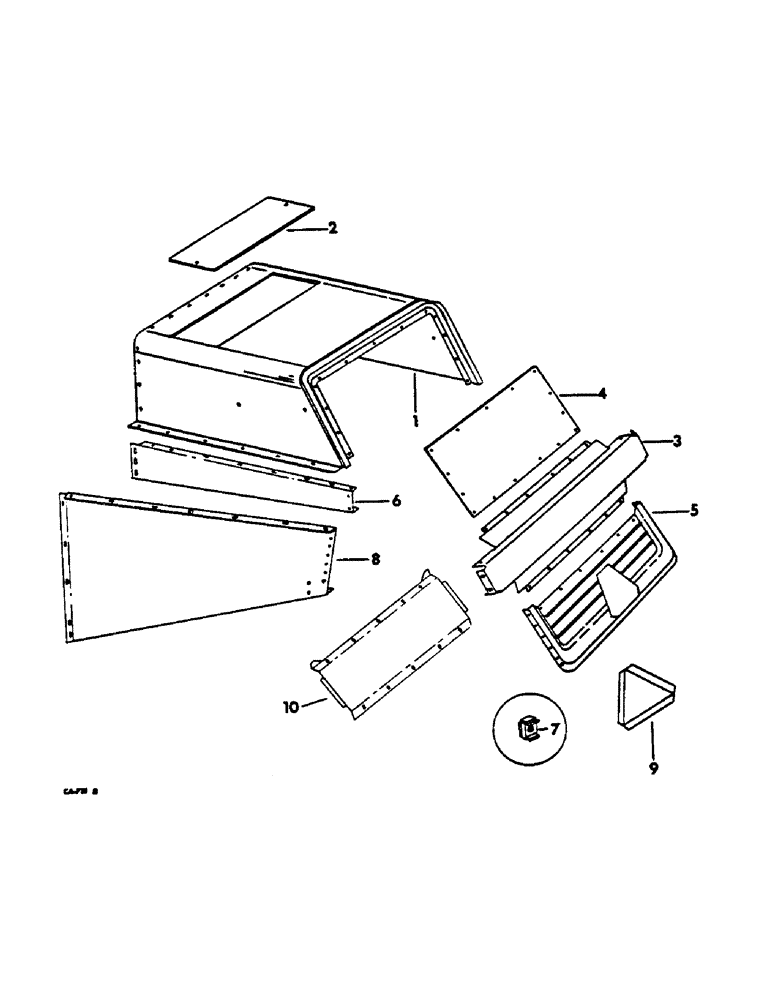

Запчасти Case IH 615 (20-04) - SEPARATOR, SEPARATOR HOOD Separation

1

171456C1

HOOD ASSY, separator top

1шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 hex-hd mach

1шт.

459063R1

SPRING NUT

5/16 grip

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 whiz lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

2шт.

2

171463C1

DOOR, separator hood top

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

2шт.

459063R1

SPRING NUT

5/16 grip

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3

171461C1

SUPPORT, rear hood center

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

14шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

14шт.

4

171462C1

SHEET, separator rear hood rear, serial no. 2580 and below, serial number 12001 and above

1шт.

4

174937C1

FILLER ASSY, separator hood rear, serial number 2581 thru 12000, not straw chopper

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

14шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

14шт.

5

171464C11

HOOD ASSY, separator rear lower

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 whiz lock

16шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

16шт.

6

170923C1

STIFFENER, separator hood center LH

1шт.

6

170924C1

STIFFENER, separator hood center RH

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 whiz lock

28шт.

475954R1

NUT

3/8 whiz lock

4шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

27шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 slt-truss-hd

4шт.

172487

SCREW,Hex, 3/8" - 16 x 1"

3/8-16 x 1 C-Z hex-hd tap type D

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x 16 ga C-Z

6шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x 16 ga C-Z

4шт.

7

166705C1

NUT

5/16 grip

1шт.

8

171089C1

SIDE, separator hood lower LH, not straw chopper

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 znd sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 C-Z whiz lock

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

10шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

9шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 C-Z slt-truss-hd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x 16 ga C-Z

1шт.

8

171090C1

SIDE, separator hood lower RH, not straw chopper

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 znd sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

10шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

9шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x 16 ga C-Z

1шт.

9

407263R1

PRODUCT GRAPHIC,SMV Triangle Yellow Orange

smv emblem

1шт.

10

174937C1

FILLER ASSY, separator hood, not straw chopper

1шт.
