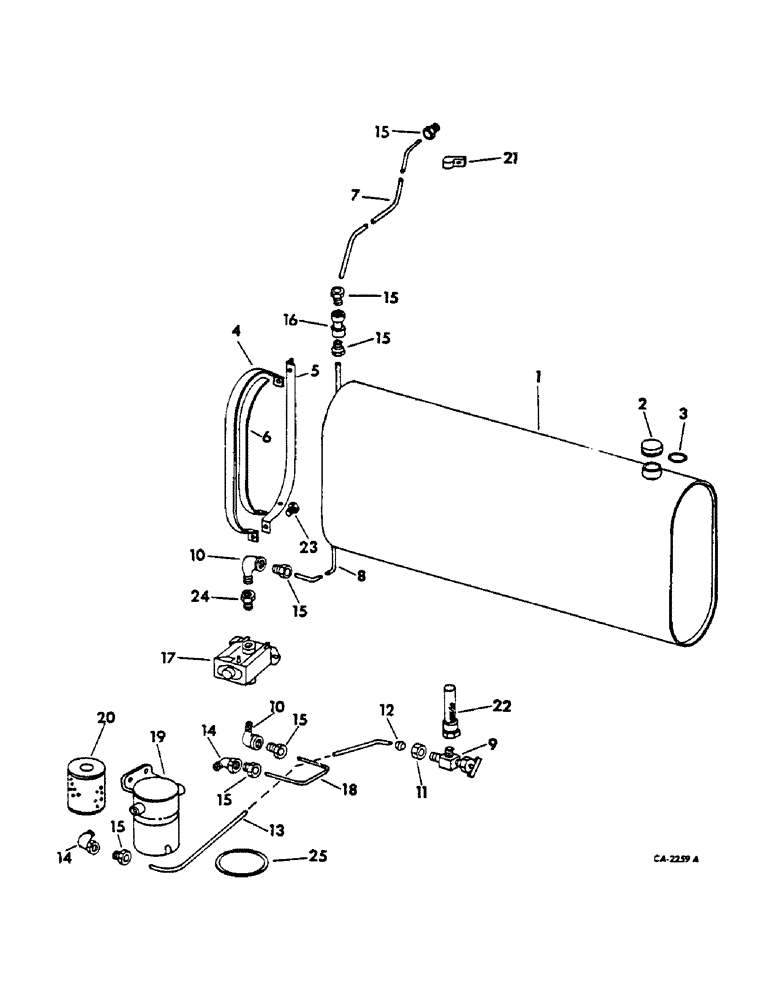

Запчасти Case IH 615 (12-14) - POWER, FUEL TANK, LINES, FILTER AND PUMP, GASOLINE ENGINE, SER. NO. 3291 AND ABOVE Power

1

627277R92

TANK ASSY, fuel, includes ref nos 2 and 3

1шт.

2

23995DC

FILLER CAP

CAP, filler

1шт.

3

23997DC

GASKET, filler cap

1шт.

4

569462R2

STRAP, fuel tank support

2шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

5

564529R1

SUPPORT, fuel tank

2шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 hex-hd mach

4шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

6

LINING, fuel tank, order cotton webbing from bulk stock 1 x 56 in. 2 ply

2шт.

7

LINE, fuel upper, use 36 in. of 5/16 OD copper tubing from 50-ft roll marked 995062R1 and 2 nuts 29899D

1шт.

8

LINE, fuel lower, use 51 in. of 5/16 OD copper tubing from 50-ft roll marked 995062R1 and 2 nuts 29899D

1шт.

9

120900

VALVE

fuel shut-off plain brass

1шт.

10

24847H

ELBOW,90 Degree x 1/8" NPT x 1/2"-20

5/16 tube x 1/8 male pipe

2шт.

11

222-663

NUT,1/2"-24, 45 Degree Fl, Comp

NUT, fuel shut-off valve 5/16 plain brass

1шт.

12

114631

SLEEVE,Ball Type, 5/16" Tube

fuel shut-off valve

1шт.

13

LINE, fuel tank to filter, use 11 in. of 5/16 OD copper tubing from 50-ft roll marked 995062R1 and 1 nut 29899D

1шт.

14

24847H

ELBOW,90 Degree x 1/8" NPT x 1/2"-20

1/2-20 90 deg hi-duty tube fitting male pipe

2шт.

15

222-503

TUBE NUT,1/2"-20

NUT, fuel line

7шт.

16

50050D

UNION, fuel line

1шт.

17

175305C1

PUMP

ASSY, fuel

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 whiz lock

2шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 slt-truss-hd

2шт.

18

LINE, fuel pump to filter, use 14 in. of 5/16 OD copper tubing from 50-ft roll marked 995062R1 and 2 nuts 29899D

1шт.

19

170348C91

FILTER ASSY

fuel pump includes ref nos 20 and 25

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 whiz lock

2шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 slt-truss-hd

2шт.

20

170349C1

ELEMENT

fuel pump filter

1шт.

21

589980R2

CLIP

upper fuel line

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 C-Z slt-truss-hd

1шт.

22

666129R91

STRAINER ASSY.

STRAINER ASSY, fuel

1шт.

23

174608C1

BOLT,Hex, 3/8" x 1 1/2"

special mach

2шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

24

443998

ADAPTER,1/8"-27 Fem NPTF x 1/8"-27 NPTF Male

1/8-27 brass automotive pipe

1шт.

25

405500C1

GASKET

filter

1шт.
