(12-11[1]) - POWER, PRE-CLEANER, PRE-SCREENER, DIESEL COMBINES, SERIAL NO. 8000 AND BELOW

Запчасти Case IH 615 (12-11[1]) - POWER, PRE-CLEANER, PRE-SCREENER, DIESEL COMBINES, SERIAL NO. 8000 AND BELOW Power

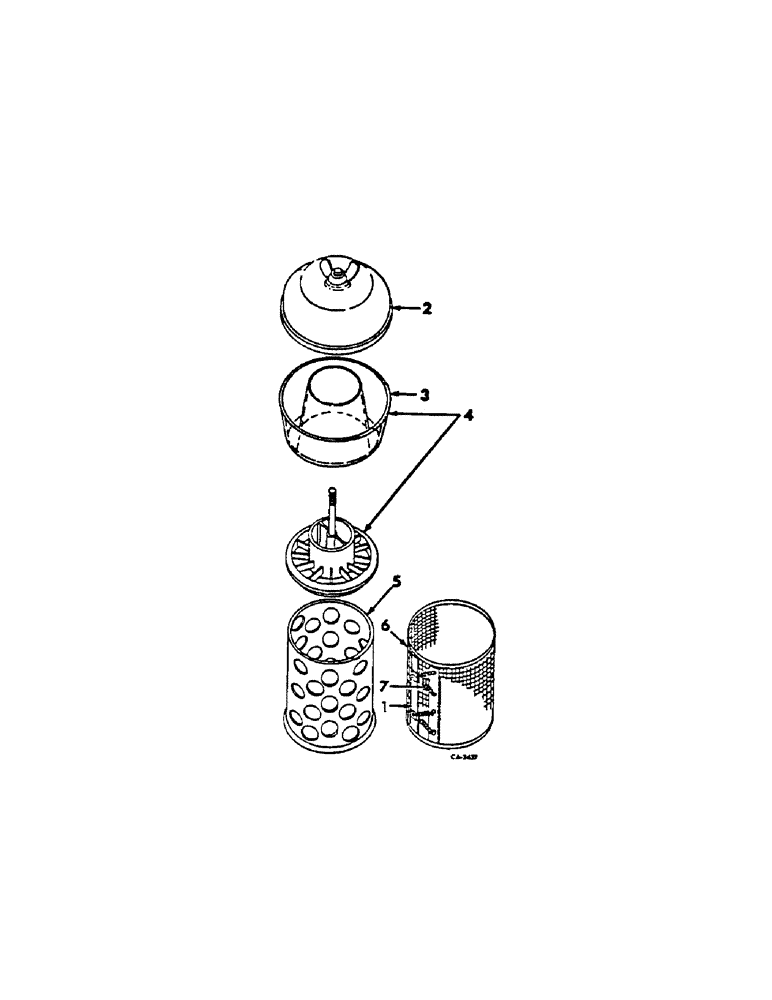

Схема запчастей Case IH 615 - (12-11[1]) - POWER, PRE-CLEANER, PRE-SCREENER, DIESEL COMBINES, SERIAL NO. 8000 AND BELOW Power
3
2
6
1
7
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

384397R91

CLEANER

PARTS ACCESSORY, pre-cleaner, pre-screener assy

1шт.

1

COVER ASSY, pre-cleaner, on orders for cover furnish parts accessory 384397R91

1шт.

2

277377R1

FILTER BOWL

BODY, pre-cleaner

1шт.

3

277375R91

AIR PRE-CLEANER ASSY

SLEEVE ASSY, pre-cleaner

1шт.

4

384606R91

BODY, pre-screener

1шт.

5

384543R91

SCREEN

W/TWO CLIPS, 353758R1 and four springs, 353639R1 assy

1шт.

6

353639R1

VALVE SPRING

SPRING, screen lock tension

4шт.

7

353758R1

CLIP

screen lock tension spring

2шт.
