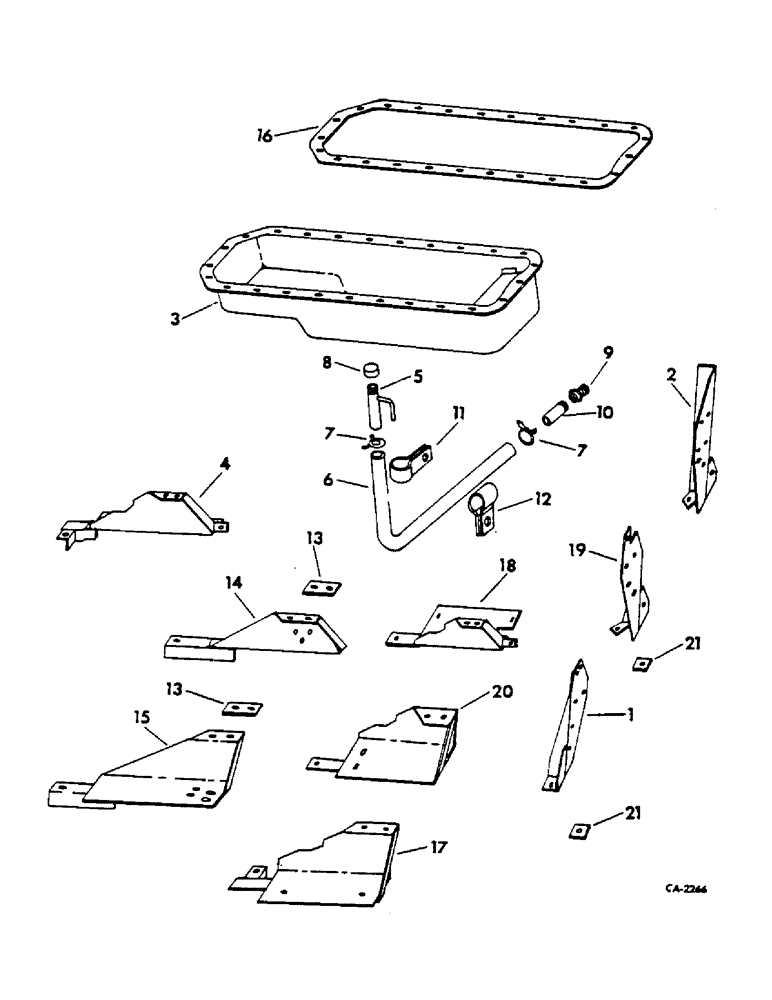

Запчасти Case IH 615 (12-07) - POWER, OIL PAN, DRAIN HOSE, CLAMP, CAP, PIPE AND ENGINE SUPPORT, BRACKETS Power

1

276114R21

SUPPORT ASSY, rear LH, belt drive diesel engine, serial no. 8000 below, hydrostatic drive gasoline engine

1шт.

2

389106R92

SUPPORT ASSY, rear RH, gasoline engine

1шт.

3

601380C12

PAN ASSY, crankcase oil

1шт.

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, 1/2 sq-hd pipe

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Oil pan Hex, 5/16"-18 x 3/4", G5, Full Thd

25шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

25шт.

4

387988R11

BRACKET ASSY, front support RH, belt drive diesel engine, serial no. 8000 and below

1шт.

548434R1

BOLT, engine mount lock

1шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

1шт.

20611R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

SCREW, 5/8 x 2-1/4 hex-hd cap

1шт.

5

165203C91

FITTING

DRAIN ASSY, oil pan

1шт.

6

165202C1

HOSE,0.63" ID x 50.00"

Oil Drain 0.63" ID x 50.00"

1шт.

7

112700R1

HOSE CLAMP,#15, 15/16", Spring

CLAMP, oil drain hose

2шт.

8

1441645

CAP, 1/2 pipe zinc dull

1шт.

9

175778H1

ADAPTER

REDUCER, 1/2 to 3/8 pipe

1шт.

10

165204C1

PIPE, oil drain

1шт.

11

587501R2

CLAMP

CLIP, oil drain hose

1шт.

12

361656C1

CLAMP,1 3/16", Insul, 3/8" Bolt

CLIP, oil drain hose

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 whiz lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 st-truss-hd

1шт.

13

385874R1

PAD

engine

4шт.

14

533830R1

BRACKET ASSY, front support RH, hydrostatic drive, gasoline engine

1шт.

548434R1

BOLT, engine mount lock

1шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

1шт.

20611R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

SCREW, 5/8 x 2-1/4 hex-hd cap type 4

1шт.

15

533827R2

BRACKET ASSY, front support LH, hydrostatic drive, gasoline engine

1шт.

548434R1

BOLT, engine mounting

1шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

1шт.

20611R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

SCREW, 5/8 x 2-1/4 hex-hd cap type 4

1шт.

17

387986R11

BRACKET ASSY, front support LH, belt drive, diesel engine, serial no. 8000 and below

1шт.

584434R1

BOLT, engine mount lock

1шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

1шт.

20611R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

SCREW, 5/8 x 2-1/4 hex-hd cap type 4

1шт.

18

379916R11

BRACKET ASSY, front support RH, belt drive, gasoline engine

1шт.

584434R1

BOLT, engine mount lock

1шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

1шт.

20611R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

SCREW, 5/8 x 2-1/4 hex-hd cap type 4

1шт.

19

395176R2

SUPPORT ASSY, rear RH, belt drive, diesel engine, serial no. 8000 and below

1шт.

20

377749R11

BRACKET ASSY, front support LH, belt drive, gasoline engine

1шт.

584434R1

BOLt, engine mount lock

2шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

2шт.

20611R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

SCREW, 5/8 x 2-1/4 hex-hd cap type 4

1шт.

21

633222R1

INSULATOR BLOCK

WASHER, engine base rear rubber

2шт.

16

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, Gasket, Oil pan

1шт.
