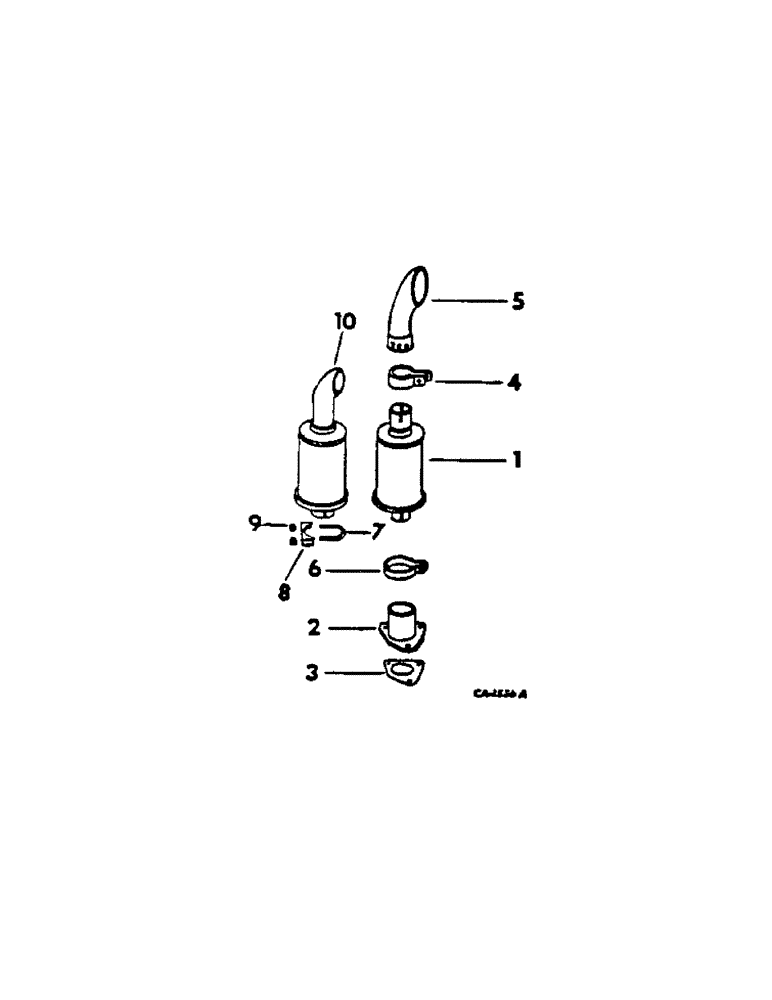

Запчасти Case IH 615 (12-02) - POWER, EXHAUST SYSTEM, CARBURETED ENGINE COMBINES, SERIAL NO. 3290 AND BELOW Power

1

401776R1

MUFFLER

exhaust, order muffler 548369R1, u-bolt 538150R1, saddle clamp 538149R1 and two nuts 535993R1

1шт.

2

533815R1

FLANGE

exhaust

1шт.

3

673352R1

GASKET

exhaust flange

1шт.

60365H

BOLT,Hex, 3/8" - 16 x 1", Gr 8

SCREW, 3/8-16 x 1 ZND hex-hd cap

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

4

396910R1

CLAMP

muffler outlet, used w/muffler 401776R1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

180125

SCREW,Hex, 3/8" - 16 x 1 3/8", Gr 5

3/8-16 x 1-3/8 ZND hex-hd cap

1шт.

5

397178R1

PIPE

TUBE, exhaust, used w/muffler 401776R1

1шт.

6

384402R1

FASTENER

CLAMP, exhaust muffler, order u-bolt 538150R1, saddle clamp 538149R1 and two nuts 535993R1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

55748D

SCREW

3/8-16 x 2 ZND hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

7

538150R1

BOLT

U-BOLT, exhaust clamp

1шт.

8

538149R1

SADDLE

exhaust clamp

1шт.

9

535993R1

NUT

muffler clamp

2шт.

10

548369R1

MUFFLER

exhaust

1шт.
